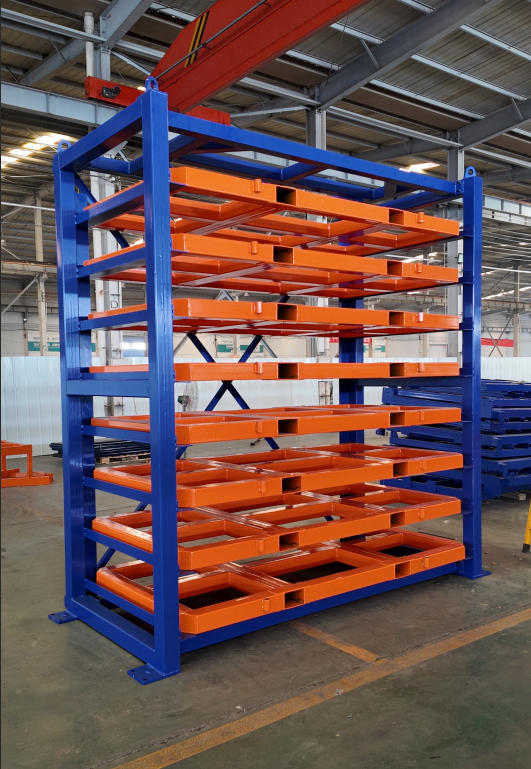

Super heavy-duty pneumatic roll-out racks

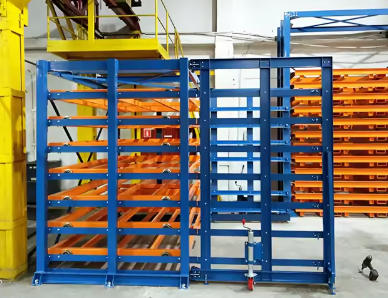

Industrial roll-out shelving storage application

Heavy Duty Roll-Out sheet metal storage solutions

Herochu isn’t just a storage supplier; we’re a partner in optimizing your metalworking workflow. With over 20 years as a top-tier storage system manufacturer in China, we understand that flat materials demand specialized handling. Our roll-out sheet metal racks aren’t “off-the-shelf” products—they’re tailored to your workshop’s unique needs, whether you’re storing 3T-per-layer steel plates, 72” x 144” sheet metal, or delicate dies. And when paired with our modular material handling conveyors (think idler rollers, transfer conveyors, or automated cross conveyors), they create a fully integrated system that cuts down on manual labor, speeds up production, and keeps your shop floor organized. Let’s dive into why this solution is a must-have for any metal processing operation.

Heavy Duty Roll-Out sheet metal storage solutions

Herochu Heavy Duty Roll-Out Sheet Metal Storage Solutions: Customizable Racks for Industrial Efficiency

For metalworking facilities, fabrication shops, and warehouses handling flat materials like sheet metal, plates, dies, and fixtures, one problem consistently slows operations: disorganized, hard-to-access storage. When sheets are stacked haphazardly or tucked into hard-to-reach corners, workers waste hours retrieving materials, risk damage to expensive stock, and create safety hazards (think strained backs from lifting or crushed fingers from unstable piles). That’s where Herochu’s Heavy Duty Roll-Out Sheet Metal Storage Solutions change the game. Starting at $54,340, these customizable, CE, UE, and ISO 9001 certified systems turn chaotic storage into a streamlined, safe, and space-maximizing asset—perfect for placement right next to your processing machinery, from saws to cut-to-length lines.

Why Herochu’s Roll-Out Sheet Metal Racks Solve Your Biggest Storage Headaches

Metalworking facilities face three core challenges with flat material storage: safety risks, wasted space, and inefficient access. Herochu’s Heavy Duty Roll-Out Racks address all three—with design choices that prioritize practicality, durability, and adaptability. Here’s how:

1. Safe Access, No Matter the Load (Up to 10,000 lbs Per Drawer)

Safety is non-negotiable when handling heavy sheet metal. Our roll-out racks eliminate the need for workers to climb stacks, reach over sharp edges, or wrestle with unbalanced loads. Each drawer can be pulled manually, cranked out, or fully automated—so even a 10,000-lb die or a 72” x 144” steel plate is accessible without strain. And because the racks are engineered for stability, you won’t face the risk of drawers tipping or materials shifting during retrieval. Whether you’re using a crane, vacuum lift, magnet, or forklift to load/unload, the open, roll-out design ensures clear access—reducing accidents and keeping your team safe.

2. Maximize Storage Capacity (Without Wasting Floor Space)

Floor space is a premium in any workshop, and traditional static racks often leave vertical space unused. Herochu’s roll-out racks are built to stack—with options for 8 to 19 layers (depending on your needs) and layer lengths from 2.5m to 6m. This means you can store more material in the same footprint: a 4000x2000mm rack, for example, can hold multiple layers of 3T each, turning a small corner of your shop into a high-density storage zone. And with customizable sizes (25001300mm, 30001500mm, 4000x2000mm, 6000*2000mm), we’ll design a system that fits your exact space—no more trying to squeeze square racks into rectangular rooms.

3. Streamline Production (Right Where You Need It)

The biggest advantage of our roll-out racks? They’re designed to work with your machinery, not against it. Place them near saws, cut-to-length lines, order-filling stations, or beam splitters, and you’ll eliminate the time wasted moving materials across the shop. Need to load a sheet into a laser cutter? Just roll out the drawer, grab the material with a vacuum lift, and you’re ready to go. No more waiting for a forklift to transport sheets from a distant storage area—your materials are right where you need them, when you need them. This seamless integration cuts down on production downtime and keeps your workflow moving smoothly.

More Than Racks: Herochu’s Modular Material Handling Conveyors

Herochu’s Heavy Duty Roll-Out Sheet Metal Storage Solutions don’t stop at racks—we offer a full suite of modular material handling conveyors to create a complete, integrated system. Whether you’re processing steel, aluminum, or other metals, our conveyors complement your racks and machinery, turning isolated steps into a continuous production line. Here’s what we offer:

1. Idler and Powered Roller Conveyors

Ideal for moving flat sheets or plates between stations, our idler (gravity-fed) and powered roller conveyors handle heavy loads with ease. Powered models use chain drives for consistent speed (matching your production pace), while idler conveyors are perfect for areas where gravity can do the work—saving energy and reducing maintenance costs. Both are built with steel frames and corrosion-resistant surfaces (thanks to our powder coating treatment), so they stand up to metal shavings, oil, and daily wear.

2. Transfer and Cross Conveyors

Need to shift materials from one line to another? Our transfer conveyors bridge gaps between machinery, while cross conveyors move sheets perpendicular to the main flow—perfect for redirecting orders to different processing stations. Both are customizable in length (2.5m to 6m) and width, ensuring they fit seamlessly into your existing layout. And with automated controls (optional), you can sync them with your racks and machinery for fully hands-off operation.

3. Measuring Systems and Accessories

Accuracy matters in metalworking—and our measuring systems ensure you cut, trim, and process materials to exact specifications. Pair them with your conveyors and racks, and you’ll eliminate manual measuring errors (no more guesswork with tape measures). We also offer accessories like guide rails (to keep sheets aligned), stop blocks (for precise positioning), and ESD protection (critical for sensitive materials)—all designed to make your operation more efficient and error-free.

The best part? All our conveyors and accessories are designed to work with our roll-out racks. So whether you’re building a new production line or upgrading an existing one, you’ll get a cohesive system that doesn’t require cobbling together parts from different suppliers.

Technical Specifications: Built for Heavy-Duty Metalworking

Herochu’s Heavy Duty Roll-Out Sheet Metal Storage Solutions are engineered to withstand the toughest industrial environments. Every component—from the steel frames to the drawer slides—is tested to handle heavy loads, resist corrosion, and last for years. Here’s a detailed breakdown of the specs that matter:

Specification	Details	Why It Matters
Model Number	HC-S3015-193	Ensures you’re getting a Herochu-designed system, backed by our quality guarantee.
Number of Layers	8–19	Lets you choose the right density for your storage needs (more layers = more material, less floor space).
Layer Length	2.5–6m	Accommodates small (2500mm) to large (6000mm) sheets, fitting most metalworking applications.
Load per Layer	3T (up to 10,000 lbs per drawer)	Safely handles heavy steel plates, dies, and fixtures—no risk of bending or breaking.
Material	Steel	Provides maximum durability; resists dents, scratches, and impact from heavy machinery.
Surface Treatment	Powder Coated	Adds corrosion and rust protection—critical for shops with moisture, oil, or harsh chemicals.
Features	Corrosion Protection, Anti-Rust, ESD Protection (optional)	Extends the life of the system and keeps sensitive materials safe.
Mode of Movement	Linear Guide Rail + Chain	Ensures smooth, quiet drawer operation; prevents jamming (even with full loads).
Transmission Mode	Chain Drive	Delivers consistent power for automated conveyors and drawer systems; low maintenance.
Vertical Lifting Speed	9m/min (for automated models)	Fast enough to keep up with production, slow enough for safe material handling.
Inlet/Outlet Speed	12m/min (for conveyors)	Reduces time spent moving materials between stations; cuts overall cycle time.
Plate Support	Optional	Customizable (e.g., extra padding for delicate sheets, reinforced supports for heavy dies).
Installation	No Installation Required (basic assembly)	Saves time and money—your team can set up the system without hiring external contractors.
Certifications	CE, UE, ISO 9001	Meets global safety and quality standards; ideal for businesses selling to international markets.

How Herochu Customizes Your Storage Solution

We know no two metalworking shops are the same. A small fabrication shop handling 3000mm sheets has different needs than a large factory processing 6000mm steel plates—and that’s why customization is at the core of what we do. Here’s how we build a system that fits your workshop:

First, we start with a deep dive into your operation. Tell us about the materials you store (steel, aluminum, copper—thickness, size, weight), how you retrieve them (crane, vacuum lift, forklift), and where you need the system (near a laser cutter? Next to a saw?). We’ll also ask about your production volume: do you handle high-volume, repeat orders, or small-batch, custom jobs? This helps us decide whether manual, cranked, or automated drawers are best for you.

If you have a layout of your shop (even a rough sketch), share it—our CAD design team will use it to map out the perfect rack and conveyor placement. If not, we’ll send a specialist to assess your space (or work with you virtually) to take measurements. We’ll also help you choose extras: ESD protection if you work with sensitive metals, powder-coated colors to match your shop’s safety standards (e.g., high-visibility orange), or automated controls to sync with your existing machinery.

Once the design is finalized, we’ll create a 3D sample (so you can visualize the system) and provide a detailed quotation—no hidden fees, just transparent pricing starting at $54,340. And because we manufacture everything in-house, we can adjust the design quickly if your needs change (e.g., adding an extra layer or extending a conveyor length).

Why Choose Herochu Over Generic Storage Suppliers

In a market full of one-size-fits-all storage racks, Herochu stands out for three key reasons:

1. We Understand Metalworking

We don’t just sell storage—we design solutions for the unique challenges of metal processing. Our team includes engineers who’ve worked in fabrication shops, so they know how important it is to have materials accessible near machinery, how to handle heavy loads safely, and how to avoid damage to expensive sheets. This expertise means you get a system that’s not just “good enough”—it’s built for your industry.

2. We Offer Complete Integration

Unlike suppliers who sell racks or conveyors (but not both), we provide a full ecosystem. Our roll-out racks work seamlessly with our conveyors, measuring systems, and accessories—so you don’t have to worry about compatibility issues. This integration cuts down on installation time, reduces maintenance headaches, and ensures your entire system works together to boost efficiency.

3. We Stand Behind Our Products

Every Herochu Heavy Duty Roll-Out Sheet Metal Storage System is CE, UE, and ISO 9001 certified—so you know it meets the highest safety and quality standards. We also offer 24/7 support (because breakdowns don’t happen during business hours) and after-sales service, including maintenance tips and replacement parts (if needed). Our goal is to make sure your system delivers value for years, not just months.

Final Thoughts: Invest in Efficiency, Safety, and Growth

Herochu’s Heavy Duty Roll-Out Sheet Metal Storage Solutions aren’t just a purchase—they’re an investment in your business’s future. By eliminating wasted time, reducing material damage, and improving safety, you’ll boost productivity (and profits) while creating a more organized, enjoyable workplace for your team.

Whether you’re a small fabrication shop looking to expand storage or a large factory needing to streamline production, we have the solution for you. Ready to take the first step? Contact our team today to share your needs, get a customized design, and receive a quotation. Let’s turn your cluttered storage area into a competitive advantage—together.

Don’t wait—every day you’re using inefficient storage is a day you’re losing time, money, and opportunities. Choose Herochu, and let’s build a storage system that works as hard as your team does.

FAQ

Here are some frequently asked questions about our sheet metal racks and pipe storage solutions. We hope you find them helpful!

Q1: Can I request a custom size or color?
Absolutely. We offer complimentary design services and deliver efficient, tailored solutions to meet your specific requirements.

Q2: Are you a manufacturer or a distributor?
We are a direct manufacturer with over 15 years of industry experience and expertise.

Q3: Is there a minimum order quantity?
No. We welcome orders of any size, starting from a single unit.

Q4: How can I get detailed product information?
Click the “Get a Quote” button to receive product images, detailed specifications, and videos. Our team is always ready to assist.

Q5: How do I provide my storage rack requirements?
Simply share the type, dimensions, and quantity of materials you plan to store, along with any other specific needs. We will develop a professional storage solution for you. Alternatively, leave your contact details for a personalized consultation.

Q6: Do you offer automated loading systems or robotic arms?
Yes. We provide loading robotic arms and integrated loading/unloading systems tailored to your laser cutting machine’s table size and material handling method (e.g., board rack, exchange platform, or material warehouse). Contact us with your details for a customized proposal.

Q7: Do you provide on-site installation and debugging?
Yes. Our technicians can travel to your facility for installation and debugging, ensuring successful operation. We have served clients globally, including in the USA, South Korea, Russia, Qatar, Mexico, South Africa, Egypt, and Lebanon.

Q8: How do you ensure product quality?
Our quality assurance includes:

A team of over 40 technical engineers for professional debugging and support.
A dedicated quality control department compliant with ISO9001 standards.
CE certification for all exports.
Rigorous load testing before shipment to ensure structural safety and reliability.

Q9: Where is your factory located?
Our modern 10,000-square-meter manufacturing facility is located in Jiyang Industrial Park, Jinan, Shandong, China.

Q10: How can I evaluate your company’s capabilities?
We offer virtual video factory tours and warmly welcome on-site visits.

Q11: What does your company specialize in?
Jinan Constant Storage Machinery Manufacturing Co., Ltd. is a high-tech enterprise specializing in the R&D, production, sales, installation, and service of intelligent storage solutions. Our product range includes sheet material warehouses, drawer-style shelves, cantilever racks, servo manipulators, gantry loaders, and fully automated handling systems. Supported by a skilled technical team and advanced equipment, we are committed to delivering high-performance storage products and solutions to customers worldwide.
