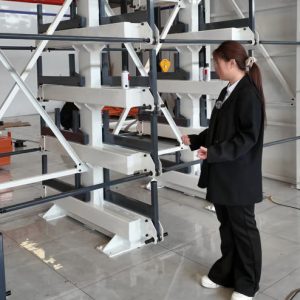

Heavy-Duty Roll-Out Cantilever Racking

The Geometry of Access: Reimagining Long Material Storage with Herochu’s Roll-Out Cantilever System

In the vast calculus of warehouse management, long materials—steel beams, aluminum extrusions, structural tubing, and oversized bar stock—present a unique and costly equation. Traditional cantilever racking solves the problem of storage but introduces the problem of access. It demands wide, unproductive aisles for forklifts to maneuver, turning your valuable floor space into a sacrificial corridor. The deeper the rack, the more materials get buried, creating a game of industrial Jenga every time you need a specific length from the back.

The Herochu Heavy-Duty Roll-Out Cantilever Racking System was engineered to solve for ‘X’ in this equation, where ‘X’ represents the perfect balance between maximum storage density and instant, unimpeded access. Starting at $3,099, this isn’t an incremental upgrade; it’s a fundamental re-architecture of storage logic, transforming a static shelving concept into a dynamic, high-performance material handling partner.

The Core Innovation: The Sliding Arm That Redefines the Aisle

At the heart of the Herochu system is a simple yet profound mechanical principle: instead of the operator moving to the material, the material moves to the operator.

Deconstructing the Mechanism:

• Industrial-Grade Sliding Carriages: Each arm is mounted on a heavy-duty sliding carriage system, built with precision bearings and reinforced rails. This isn’t drawer-slide technology; it’s a robust mechanism engineered for the shock loads and immense weight of industrial materials, with per-layer load capacities ranging from 2 to 6 tons across our model line.

• The Elimination of the “Buried Stock” Dilemma: In a static rack, retrieving a 20-foot beam from the back requires moving every beam in front of it. With our roll-out system, the entire column of arms for a specific material type can be slid forward, bringing every single stored item into the open. This transforms a deep, inaccessible storage bay into a series of front-row access points.

• Aisle Width Reduction by Design: The most significant spatial saving comes from the drastic reduction in required aisle width. A standard cantilever system might need a 10-12 foot aisle for a forklift to angle its forks. The Herochu system requires only an aisle wide enough for the forklift to travel straight in—often as little as the 800mm length of the arm itself. This single feature can increase your storage density by 30% or more overnight, effectively adding new revenue-generating space to your existing facility.

A Deep Dive into the HC-G Series: Engineered for Specific Industrial Realities

Our standard models are not one-size-fits-all; they are pre-optimized solutions for common industry challenges. Let’s analyze the data:

• The HC-G6053S/D (6,000mm Capacity): This is the workhorse for general fabrication and construction. With a single-layer capacity of 2-3 tons and a total system capacity of up to 25 tons, it handles everything from standard I-beams and channel to large-diameter pipes. The “S” (Single) or “D” (Double) column configuration allows you to choose between a space-saving back-to-wall solution or a freestanding, double-sided unit that acts as a room divider of organized material.

• The HC-G9055S/D (9,000mm – 12,000mm Capacity): This is heavy-industry equipment. Designed for the shipbuilding, bridgeworks, and large-scale structural steel sectors, this model deals in the giants. With a per-layer capacity of 5-6 tons and a staggering total load capacity of up to 42 tons, it is built to store the materials that define our infrastructure. The 800mm distance between layers is calculated to accommodate the significant height of large flange beams and wide-column sections.

The Unseen Intelligence: Safety, Workflow, and Asset Protection

The benefits of the roll-out system extend far beyond mere space savings. They create a safer, more efficient, and more protective environment.

1. Revolutionizing Picking Safety and Efficiency: A single warehouse operative can now perform tasks that previously required a two-person team or complex crane maneuvers. By sliding the desired arm into the aisle, they have clear visual identification and safe, ergonomic access to the material. This drastically reduces the risk of strains, impacts, and dropped loads. The integrated side rails ensure that even round bars and tubes remain securely cradled during the sliding process, preventing them from rolling off and creating a hazard.

2. Preserving Material Integrity and Value: Long, unfinished materials are highly susceptible to surface damage. Scratches, nicks, and gouges from being dragged across other stocks can downgrade their value and suitability for high-finish applications. The Herochu system eliminates material-on-material contact during retrieval. Each item rests on its own dedicated arm and is moved smoothly into position, maintaining its pristine, mill-finish condition from receipt to fabrication.

3. The Foundation for Digital Inventory Management: This physical system is the perfect partner for a digital warehouse. The clear, logical, and fixed-location nature of the sliding arms makes it incredibly easy to barcode or RFID-tag each location. Your warehouse management system (WMS) can know not just that you have a certain beam in stock, but its exact, instantly accessible location, turning inventory checks from a day-long physical ordeal into a simple digital query.

Customization: Your Workflow, Embodied in Steel

The “Customized” column in our specifications is where the true Herochu partnership begins. We recognize that your material profile is unique.

• Tailored Arm Lengths and Spacing: The standard 550mm to 800mm arm lengths can be modified to suit unusually shaped profiles. The distance between layers is fully adjustable along the column, allowing you to create a custom configuration for a mix of bulky, heavy beams and lighter, more numerous tubing within the same rack structure.

• Integration with Handling Systems: We can design the system to interface perfectly with your existing material handling equipment, whether it’s a standard forklift, an overhead bridge crane, or a specialized side-loader. The ground clearance and overall height are calculated for your specific operational context.

The Herochu Assurance: Certified Performance

The higher initial investment in a Herochu Roll-Out Cantilever System is safeguarded by our CE, UKCA, and ISO 9001 certifications. This is your guarantee that every component—from the steel’s metallurgical grade to the welding procedure and the load-bearing calculations—has been rigorously tested and documented. This is not just shelving; it is a certified industrial asset designed for a decade-spanning service life.

Stop viewing your long material storage as a fixed, inefficient cost center. The geometry of your warehouse doesn’t have to be a compromise.

Embrace a system where density and access are no longer opposing forces. Contact a Herochu storage engineer today for a no-obligation, deep-dive analysis of your facility. Discover how our Heavy-Duty Roll-Out Cantilever Racking, starting at $3,099, can calculate a new, more profitable future for your operations.
