Heavy Duty Rail Type Cantilever Racks

Herochu Heavy Duty Rail Type Cantilever Racks: The Ultimate High-Density Storage Solution for Industrial Warehousing

In the world of industrial storage and warehousing, maximizing space utilization while maintaining operational efficiency represents one of the most significant challenges facing operations managers today. Traditional storage systems often require extensive aisle space for material handling equipment, effectively wasting valuable square footage that could otherwise be used for productive storage. For operations dealing with long, heavy, or irregularly shaped items such as metal pipes, structural profiles, lumber, or manufactured components, this challenge becomes even more pronounced. Standard shelving solutions simply cannot accommodate these materials efficiently or safely.

Herochu addresses these complex storage requirements with our engineering breakthrough: the Heavy Duty Rail Type Cantilever Rack system. This innovative storage solution represents a fundamental shift in how industrial facilities approach high-density storage for long and bulky materials. Unlike conventional cantilever racks that require multiple aisles for access, our rail-type system operates on a revolutionary single-track principle that dramatically reduces aisle requirements while maintaining full accessibility to all stored materials. This system doesn’t just store your inventory—it transforms your entire storage methodology, creating unprecedented efficiency in space utilization, material handling, and operational workflow.

The core challenge in many warehouses is the paradox between storage density and accessibility. Traditional systems force operations to choose between storing more material (by narrowing aisles) or maintaining efficient access (by widening aisles). The Herochu Rail Type Cantilever Rack system eliminates this compromise entirely through its innovative guided rail technology, providing both maximum storage density and uncompromised accessibility in a single, robust system.

Engineering Innovation and Technical Superiority

The Herochu Rail Type Cantilever Rack system incorporates several groundbreaking engineering features that set it apart from conventional storage solutions:

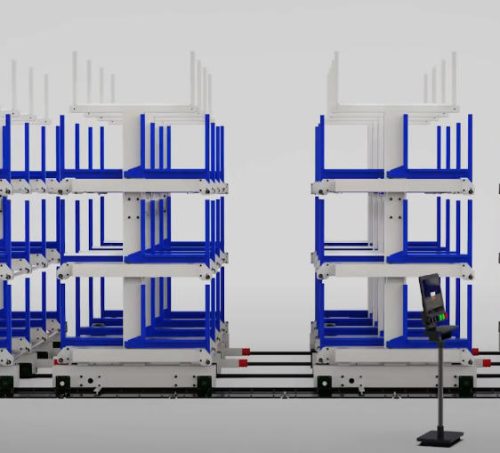

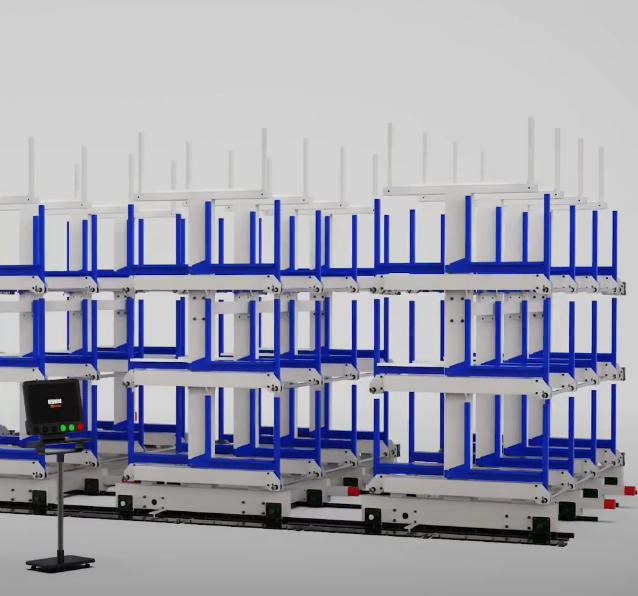

• Single Ground Rail Technology: The system’s most innovative feature is its shared single ground rail design, which allows multiple shelving units to operate along a common track system. This revolutionary approach eliminates the need for multiple aisles between storage sections, requiring only one central aisle for all loading and unloading operations. The mechanical guidance system ensures perfect alignment and smooth operation even under maximum load conditions.

• Exceptional Load Capacity: Engineered for industrial-grade performance, each level of our cantilever system supports remarkable weight capacities of 3-5 tons per single side. This extraordinary load-bearing capability makes the system ideal for storing heavy metal profiles, construction materials, industrial piping, and other substantial inventory that would overwhelm conventional storage systems.

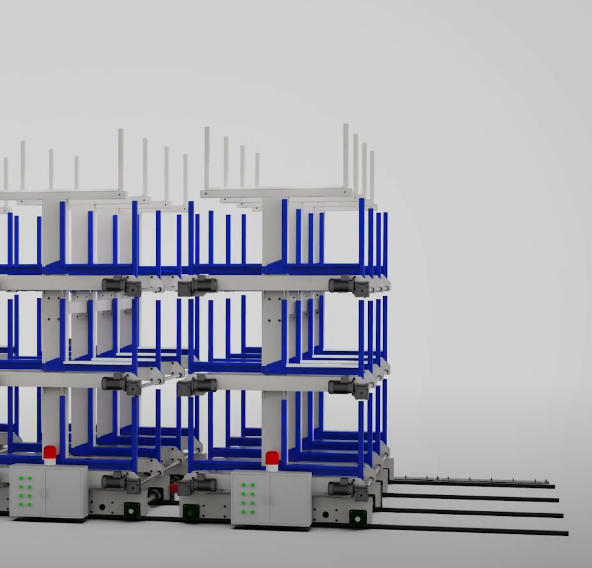

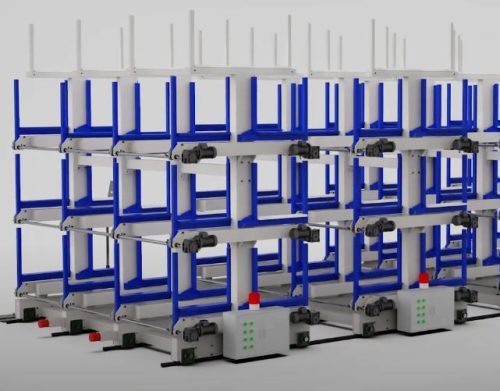

• Advanced Movement System: The system utilizes a precision linear guide rail combined with a heavy-duty chain drive transmission mechanism. This combination provides smooth, reliable movement with vertical lifting speeds of 9 meters per minute and inlet/outlet speeds of 12 meters per minute. The robust chain drive system ensures consistent performance even under continuous heavy use in demanding industrial environments.

• Mechanically-Assisted Operation: As an upgraded version of traditional telescopic cantilever shelves, our system incorporates innovative mechanical assistance that significantly reduces the physical effort required for operation. This design advancement substantially lowers labor costs while improving operational safety and efficiency.

Unmatched Benefits for Industrial Operations

The implementation of Herochu Heavy Duty Rail Type Cantilever Racks delivers transformative benefits across multiple aspects of warehouse operations:

• Revolutionary Space Utilization: By eliminating multiple aisles and implementing the single-track system, our racks achieve space utilization rates far exceeding traditional shelving systems. This is particularly valuable for facilities with limited space or low ceilings, where every square meter of storage capacity must be optimized to its maximum potential.

• Enhanced Operational Efficiency: The system’s design allows operators to access any stored item quickly and efficiently through the single access aisle. This dramatically reduces time spent retrieving materials and improves overall workflow efficiency, particularly when integrated with laser cutting operations and other manufacturing processes.

• Superior Material Compatibility: Specifically designed for long, bulky, and irregularly shaped items, the system perfectly accommodates pipes, profiles, wires, bars, and other challenging materials that defy conventional storage methods. The cantilever design provides unobstructed access to both ends of stored materials, simplifying handling and retrieval.

• Robust Safety and Stability: The ground rail design provides exceptional structural stability and load-bearing capacity, ensuring safe operation even when fully loaded with heavy materials. The guided movement system prevents rack drifting or misalignment, maintaining operational safety under all conditions.

Technical Specifications and Customization Options

The Herochu Rail Type Cantilever Rack system offers extensive customization to meet specific operational requirements:

• System Lengths: Available in 6000mm, 9000mm, and 12000mm configurations to accommodate different facility dimensions

• Floor/Capacity Customization: Number of levels fully customizable based on storage requirements and facility height

• Load Capacity: 3T or 5T per single side per layer options available

• Plate Support: Optional selection based on specific material handling needs

• Movement System: Precision linear guide rail with chain drive transmission

• Operational Speeds: 9m/min vertical lifting speed, 12m/min inlet and outlet speed

Comprehensive Quality Assurance and Global Support

Herochu maintains unwavering commitment to quality and customer support throughout our global operations. Our manufacturing facilities encompass 10,000 square meters of modern production space located at Jiyang Industrial Park in Jinan, Shandong, China. We maintain a team of over 40 technical engineers who ensure every system meets our rigorous quality standards before delivery.

Our quality assurance process includes:

• ISO 9001 Certification: Strict adherence to international quality management standards

• CE Certification: Compliance with European health, safety, and environmental requirements

• Pre-Delivery Load Testing: Comprehensive testing of all systems before factory departure

• Global Installation Support: Professional installation and debugging services available worldwide, with proven experience in South Africa, United States, Russia, South Korea, Qatar, Egypt, Lebanon, Mexico, and other international markets

The Procurement Process and Technical Consultation

We understand that implementing a storage system of this magnitude requires careful planning and technical consideration. Our professional sales and engineering team provides comprehensive consultation services to ensure perfect system integration with your existing operations. We welcome detailed discussions about your specific materials, storage requirements, and operational workflows to develop the optimal solution for your facility.

For operations requiring integrated loading and unloading systems, we offer compatibility with various automation solutions including robotic arms, exchange platforms, and material warehouse systems. Our technical team will assess your laser cutting machine table specifications and loading methods to ensure perfect system integration.

Commitment to Customer Success

Our relationship with clients extends far beyond the initial sale. We provide ongoing technical support, maintenance guidance, and operational optimization recommendations to ensure your Herochu storage system continues to deliver maximum value throughout its operational lifespan. We welcome prospective clients to conduct video factory inspections or schedule on-site visits to witness our manufacturing processes and quality standards firsthand.

Transform your industrial storage capabilities with the system that redefines space utilization and operational efficiency. The Herochu Heavy Duty Rail Type Cantilever Rack system represents the pinnacle of storage innovation, engineered for facilities that refuse to compromise on performance.

Customizable to your specific workshop requirements, with systems starting at $42,000.

Contact the Herochu engineering team today to schedule a comprehensive technical consultation and receive a detailed proposal tailored to your operational requirements.
