Heavy Duty Pull Out Sheet Metal Storage Drawer Rack for 6000x2000mm Steel Plate Warehouse

In modern metal fabrication and laser cutting operations, handling oversized sheet metal—especially dimensions reaching 6000mm in length and 2000mm in width—presents significant storage challenges. Traditional stacking methods risk material damage, worker injury, and inefficient retrieval. The Pull Out Sheet Metal Storage Drawer Rack for 6000x2000mm Steel Metal solves these problems through an engineered drawer-type rack system that combines heavy load capacity, corrosion protection, and space-saving vertical design.

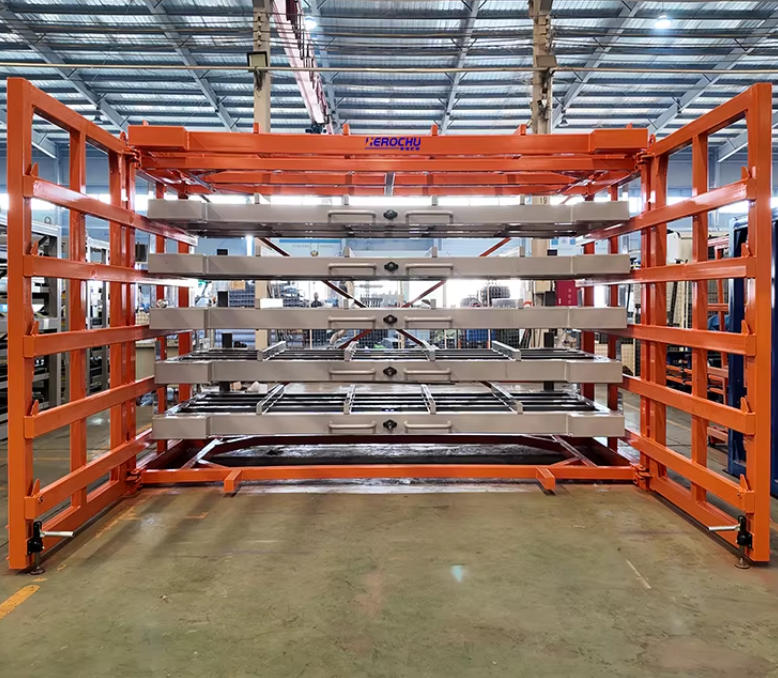

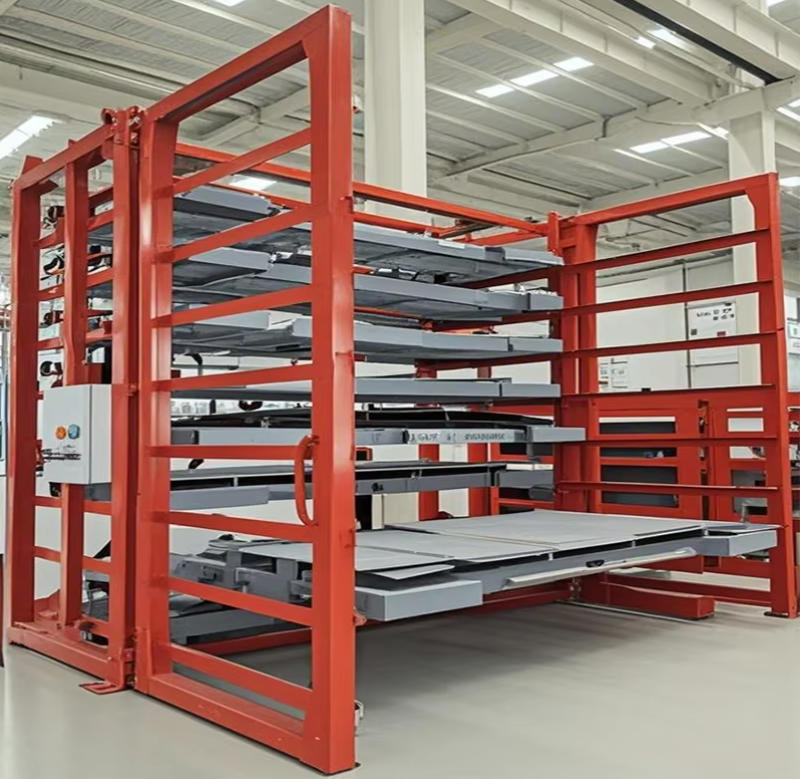

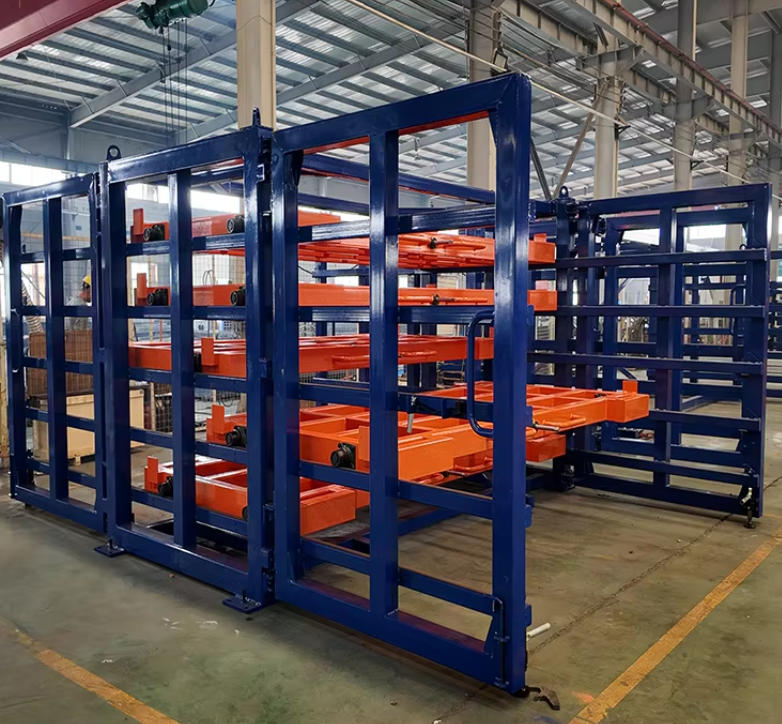

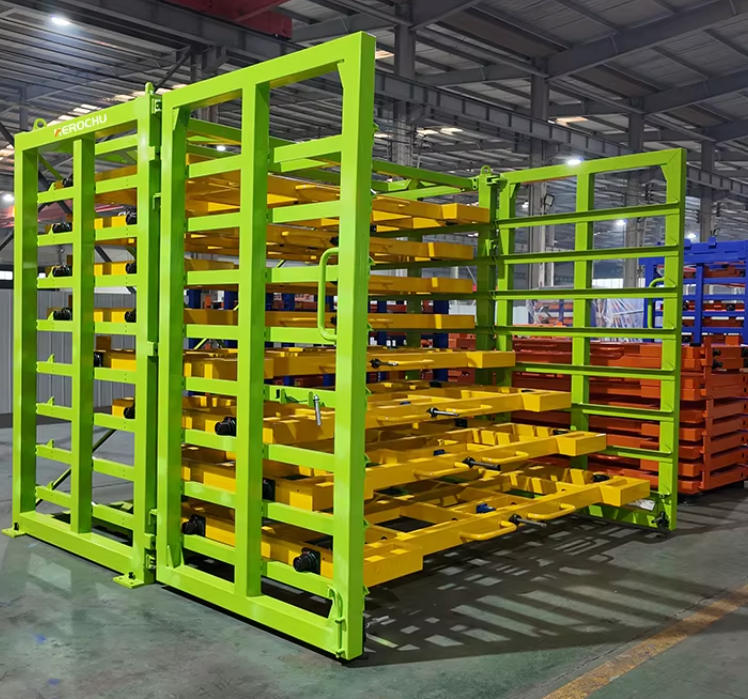

This rack system is specifically dimensioned to accommodate the largest standard metal sheet sizes used in industrial laser cutting, shipbuilding, and heavy equipment manufacturing. Unlike fixed shelf units that require forklift maneuvering between every layer, the pull-out drawer mechanism allows each 6000x2000mm steel plate to slide out independently, providing full access without disturbing adjacent materials.

Structural Engineering for Extreme Dimensions

The foundation of this storage solution is a skeletal steel framework manufactured from industrial grade Q235 carbon steel. The choice of Q235 is deliberate: it offers an optimal balance between tensile strength (370–500 MPa) and weldability, making it suitable for supporting dynamic loads from extended drawers. Each upright column is reinforced with cross braces and foot plates to distribute the weight of up to 2000kg per drawer across the warehouse floor.

The drawer length of 6000mm demands special attention to rail deflection. Standard ball bearing rails would sag under such spans. Therefore, this system employs high-precision, triple-section ball bearing guide rails with a reinforced center beam. When fully extended, the drawer maintains less than 2mm vertical deflection even at full 2000kg load, ensuring smooth operation and protecting the metal sheets from edge damage.

A powder coated finish is applied to all exposed steel surfaces. This coating is not merely aesthetic—it undergoes a multi-stage pretreatment including degreasing, phosphating, and electrostatic spraying, cured at 180–200°C. The result is a uniform 60–80 micron thick layer that resists salt spray corrosion for over 500 hours in ASTM B117 testing. For warehouses storing aluminum or stainless steel, this corrosion protection prevents galvanic reactions that could stain sensitive materials.

Operational Efficiency for Laser Cutting Workflows

Laser cutting machines operate at maximum efficiency only when material flows continuously. A bottleneck at the storage stage can idle a $500,000 laser cutter for hours. This pull out sheet metal rack directly addresses that pain point.

Each drawer rolls out on the ball bearing rail system, requiring only 15–20 kg of pulling force even with 2000kg loaded. A single operator can retrieve any sheet in under 30 seconds. Compare this to stacked storage, where retrieving a bottom sheet might require moving five other plates with a forklift—a process taking 10–15 minutes. The time saving translates to a documented 50% improvement in warehouse work efficiency.

For laser cutting workshops handling 6000x2000mm sheets, the rack’s layout allows direct feeding to the cutting table. A forklift or overhead crane can align with the extended drawer, pick the top sheet, and transfer it to the laser bed without repositioning. Some configurations include optional board auxiliary devices that guide the sheet during extraction, preventing scratches on pre-coated or mirror-finish metals.

Customization for Specific Load and Layer Requirements

The base model offers 5+1 layers (five active drawers plus one fixed top shelf), but customization is available up to 10+1 layers depending on ceiling height. Single layer height adjusts from 220mm to 300mm, accommodating sheet bundles of varying thicknesses. For warehouses storing both thin gauge (0.5mm) and heavy plate (50mm) steel, mixed layer heights can be specified.

Load capacity per layer is engineered from 1 ton to 20 tons. The 2000kg specification mentioned earlier applies to the standard 6000x2000mm drawer configuration. For heavier applications—such as storing armor plate or shipbuilding steel—reinforced versions with thicker gauge rails and additional support rollers achieve up to 10,000kg per layer. The limiting factor becomes the floor load rating rather than the rack structure.

Installation and Technical Support

Given the 6000mm length, the rack arrives in knockdown form to fit standard shipping containers. On-site assembly requires bolting the columns to floor anchors—a task completed by two technicians within eight hours using provided installation guide and hardware. For international clients, online guidance via video call is available, or an installation team can be dispatched for large orders.

The delivery cycle for standard configurations is 30 working days, including manufacturing, powder coating curing, and quality testing. Each rack undergoes a full load test before shipment: all drawers are loaded to 125% of rated capacity and cycled 50 times to verify rail integrity.

This pull out sheet metal storage drawer rack has been certified under ISO9001 for quality management and CE for European safety standards. For warehouses requiring seismic bracing or explosion-proof environments, additional engineering modifications are available through the OEM service channel.

Conclusion

For any facility processing 6000x2000mm steel metal, transitioning from static stacking to a pull out drawer rack system yields measurable returns: reduced labor costs, eliminated material damage, and improved laser cutter utilization. The combination of Q235 steel construction, powder coated corrosion protection, and high-precision ball bearing rails creates a storage asset that performs reliably for over a decade.
