Heavy Duty Pipe Racking Automatic Storage Rack System Warehousing Steel Pallet Tubes Profile Pallets Rack

Herochu Heavy Duty Pipe Racking System – Industrial Strength Storage Solution CE/UE/ISO 9001 Certified Automatic Profile Storage System

Herochu’s Heavy Duty Pipe Racking Automatic Storage Rack System revolutionizes warehousing efficiency for steel profiles, tubes, and pallets. This industrial-grade solution combines cutting-edge automation with robust construction, offering unparalleled storage capacity and operational reliability.

System Overview

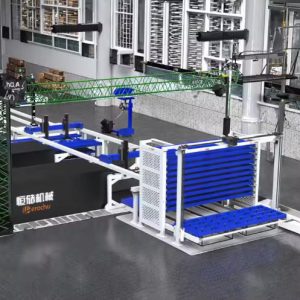

The Profile Automatic Storage Unit comprises four core components:

Loading/Unloading Gantry System – Ensures precise material handling
Engineered Profile Material Racks – Modular design for maximum flexibility
Heavy-Duty Material Frames – Built to withstand extreme loads
Precision Guide Rails – Smooth linear movement with chain-driven transmission

Heavy Duty Pipe Racking Automatic Storage Rack System Warehousing Steel Pallet Tubes Profile Pallets Rack

Herochu Heavy Duty Pipe Racking System – Industrial Strength Storage Solution

CE/UE/ISO 9001 Certified Automatic Profile Storage System

System Overview

The Profile Automatic Storage Unit comprises four core components:

Loading/Unloading Gantry System – Ensures precise material handling
Engineered Profile Material Racks – Modular design for maximum flexibility
Heavy-Duty Material Frames – Built to withstand extreme loads
Precision Guide Rails – Smooth linear movement with chain-driven transmission

Key Features

Unmatched Load Capacity: 3-ton per layer rating with 6,000mm rack height
Customizable Configurations: Adjustable number of floors/storage units (600x500mm grid size)
High-Speed Operation: 9m/min vertical lift & 12m/min inlet/outlet throughput
Industrial Durability: Reinforced steel construction for long-term performance

Technical Specifications

Parameter	Specification
Overall Height	6000mm (Customizable)
Per Layer Capacity	3 Tons
Movement Mechanism	Linear Rail + Chain
Drive System	Chain Transmission
Vertical Speed	9m/min
Horizontal Speed	12m/min
Storage Grid Dimensions	600x500mm
Storage Units	Fully Customizable

Why Choose Herochu?

• CE/UE/ISO 9001 Certified quality assurance
• Factory-Direct Pricing starting at $42,000
• Tailored Solutions adapted to any workshop layout
• Proven Performance with industrial clients worldwide

Constant Storage Systems welcomes collaboration to design your perfect storage solution. Contact our engineering team today for a customized quote.

FAQ

Here are some frequently asked questions about our sheet metal racks and pipe storage solutions. We hope you find them helpful!

Q1: Can I request a custom size or color?
Absolutely. We offer complimentary design services and deliver efficient, tailored solutions to meet your specific requirements.

Q2: Are you a manufacturer or a distributor?
We are a direct manufacturer with over 15 years of industry experience and expertise.

Q3: Is there a minimum order quantity?
No. We welcome orders of any size, starting from a single unit.

Q4: How can I get detailed product information?
Click the “Get a Quote” button to receive product images, detailed specifications, and videos. Our team is always ready to assist.

Q5: How do I provide my storage rack requirements?
Simply share the type, dimensions, and quantity of materials you plan to store, along with any other specific needs. We will develop a professional storage solution for you. Alternatively, leave your contact details for a personalized consultation.

Q6: Do you offer automated loading systems or robotic arms?
Yes. We provide loading robotic arms and integrated loading/unloading systems tailored to your laser cutting machine’s table size and material handling method (e.g., board rack, exchange platform, or material warehouse). Contact us with your details for a customized proposal.

Q7: Do you provide on-site installation and debugging?
Yes. Our technicians can travel to your facility for installation and debugging, ensuring successful operation. We have served clients globally, including in the USA, South Korea, Russia, Qatar, Mexico, South Africa, Egypt, and Lebanon.

Q8: How do you ensure product quality?
Our quality assurance includes:

A team of over 40 technical engineers for professional debugging and support.
A dedicated quality control department compliant with ISO9001 standards.
CE certification for all exports.
Rigorous load testing before shipment to ensure structural safety and reliability.

Q9: Where is your factory located?
Our modern 10,000-square-meter manufacturing facility is located in Jiyang Industrial Park, Jinan, Shandong, China.

Q10: How can I evaluate your company’s capabilities?
We offer virtual video factory tours and warmly welcome on-site visits.

Q11: What does your company specialize in?
Jinan Constant Storage Machinery Manufacturing Co., Ltd. is a high-tech enterprise specializing in the R&D, production, sales, installation, and service of intelligent storage solutions. Our product range includes sheet material warehouses, drawer-style shelves, cantilever racks, servo manipulators, gantry loaders, and fully automated handling systems. Supported by a skilled technical team and advanced equipment, we are committed to delivering high-performance storage products and solutions to customers worldwide.
