Heavy-Duty Insertion-Style Pipe Storage Racks for Industrial Use

New Design Heavy-Duty Pipes Telescopic Steel Pipe Storage Rack

Optimize Long Material Storage with Heavy-Duty Telescopic Steel Pipe Rack Solutions Introduction

Heavy-Duty Insertion-Style Pipe Storage Racks: The Ultimate Solution for Industrial Pipe Management

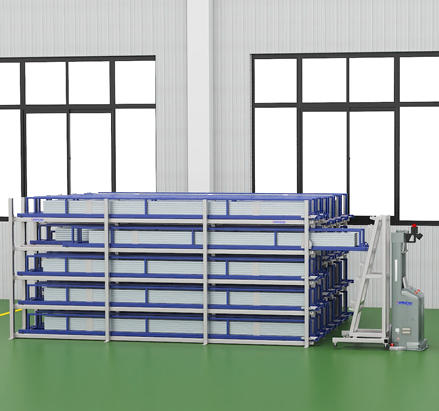

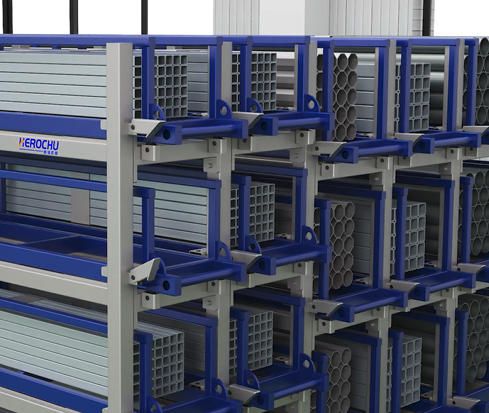

These racks utilize a unique pipe insertion method, where pipes are slid horizontally into pre-aligned cradles mounted on multi-tier steel frames. This eliminates the need for vertical stacking or precarious leaning arrangements that risk collapse. Each cradle is contoured to cradle pipes securely, preventing rolling or slippage—even during seismic activity or forklift vibrations.

Heavy-Duty Insertion-Style Pipe Storage Racks: The Ultimate Solution for Industrial Pipe Management

Managing long, heavy pipes in a busy warehouse demands more than just strength—it requires intelligent design. Herochu’s Heavy-Duty Insertion-Style Pipe Storage Racks deliver exactly that: a fusion of brute-force durability and ergonomic functionality tailored for industrial-scale operations.

Built from high-tensile steel and treated with advanced powder coating, the racks resist corrosion, abrasion, and chemical exposure. Standard models (HC-G6053D, HC-G9055D, etc.) support 3 to 5 tons per layer, with configurations for 4+1 layers (including bilateral support arms) to maximize vertical space. The overall dimensions scale precisely with pipe length—e.g., 12435x3340x1750mm for 12-meter pipes—ensuring no wasted space.

The insertion-style design offers several operational advantages:

Faster loading/unloading: Operators simply slide pipes in or out; no lifting required.
Reduced damage: Pipes don’t contact each other, minimizing surface scratches.
Clear visibility: Open-front design allows instant visual inventory checks.
Forklift compatibility: Ground-level clearance enables easy access from any angle.

Herochu enhances this system with optional sliding support rollers for ultra-long or thin-walled pipes that might sag under their own weight. These low-friction rollers distribute load evenly and maintain alignment during insertion—ideal for aerospace or hydraulic tubing applications.

Customization is seamless. Need a specific color for zone coding? Done. Require ESD-safe materials for sensitive components? Available. Want to integrate barcode labels or RFID tags on each bay? Herochu’s engineering team can embed these features during production. Both manual and electric-assisted versions are offered, depending on throughput demands.

Safety remains paramount. All racks include anti-tip stabilizers and edge guards to protect workers during handling. Load capacity indicators are permanently marked on each beam, preventing overloading. Compliance with CE and ISO 9001 standards guarantees consistent quality across global deployments.

Industries benefiting most include:

Construction: Storing rebar, scaffolding tubes, and conduit.
Oil & Gas: Managing drill stems, casing, and flow lines.
Automotive: Holding drive shafts, exhaust pipes, and chassis components.
Renewables: Organizing wind turbine tower sections or solar mounting rails.

A recent case study from a Middle Eastern pipe distributor showed a 40% reduction in handling time and a 28% decrease in damaged goods after implementing Herochu’s insertion-style racks. The modular design also allowed them to expand capacity by adding layers without replacing the entire structure.

Backed by local after-sales support and rapid sample turnaround, Herochu ensures your storage system evolves with your business. Whether you’re outfitting a new warehouse or upgrading an existing one, the Heavy-Duty Insertion-Style Pipe Storage Racks offer a scalable, safe, and supremely efficient foundation for long-material logistics.

FAQ

Here are some frequently asked questions about our sheet metal racks and pipe storage solutions. We hope you find them helpful!

Q1: Can I request a custom size or color?
Absolutely. We offer complimentary design services and deliver efficient, tailored solutions to meet your specific requirements.

Q2: Are you a manufacturer or a distributor?
We are a direct manufacturer with over 15 years of industry experience and expertise.

Q3: Is there a minimum order quantity?
No. We welcome orders of any size, starting from a single unit.

Q4: How can I get detailed product information?
Click the “Get a Quote” button to receive product images, detailed specifications, and videos. Our team is always ready to assist.

Q5: How do I provide my storage rack requirements?
Simply share the type, dimensions, and quantity of materials you plan to store, along with any other specific needs. We will develop a professional storage solution for you. Alternatively, leave your contact details for a personalized consultation.

Q6: Do you offer automated loading systems or robotic arms?
Yes. We provide loading robotic arms and integrated loading/unloading systems tailored to your laser cutting machine’s table size and material handling method (e.g., board rack, exchange platform, or material warehouse). Contact us with your details for a customized proposal.

Q7: Do you provide on-site installation and debugging?
Yes. Our technicians can travel to your facility for installation and debugging, ensuring successful operation. We have served clients globally, including in the USA, South Korea, Russia, Qatar, Mexico, South Africa, Egypt, and Lebanon.

Q8: How do you ensure product quality?
Our quality assurance includes:

A team of over 40 technical engineers for professional debugging and support.
A dedicated quality control department compliant with ISO9001 standards.
CE certification for all exports.
Rigorous load testing before shipment to ensure structural safety and reliability.

Q9: Where is your factory located?
Our modern 10,000-square-meter manufacturing facility is located in Jiyang Industrial Park, Jinan, Shandong, China.

Q10: How can I evaluate your company’s capabilities?
We offer virtual video factory tours and warmly welcome on-site visits.

Q11: What does your company specialize in?
Jinan Constant Storage Machinery Manufacturing Co., Ltd. is a high-tech enterprise specializing in the R&D, production, sales, installation, and service of intelligent storage solutions. Our product range includes sheet material warehouses, drawer-style shelves, cantilever racks, servo manipulators, gantry loaders, and fully automated handling systems. Supported by a skilled technical team and advanced equipment, we are committed to delivering high-performance storage products and solutions to customers worldwide.
