Heavy-Duty Insertion-Style Pipe Storage Racks for Industrial Use

In the demanding world of industrial storage, optimizing space while ensuring robust, safe, and accessible organization for long, heavy materials is a constant challenge. For warehouses, manufacturing plants, and construction sites handling metal pipes, tubes, and bars, traditional shelving often falls short. Enter the Heavy-Duty Insertion-Style Pipe Storage Rack, a revolutionary storage system engineered to transform how businesses manage lengthy inventory. As a premier manufacturer and trader, we combine rigorous quality control, full certification (CE/ISO), and unparalleled local after-sales support to deliver storage solutions that are as reliable as they are efficient. This article delves into the design, benefits, and customizable features of our insertion-style pipe racks, demonstrating why they are the superior choice for heavy-duty applications.

Unpacking the Insertion-Style Design

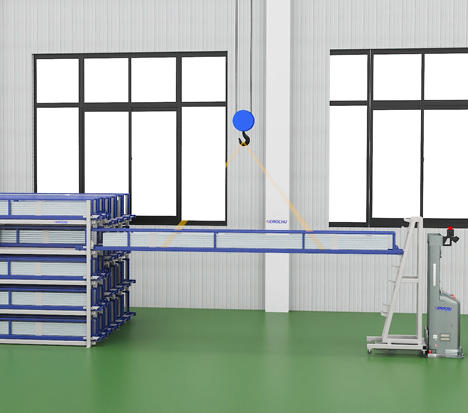

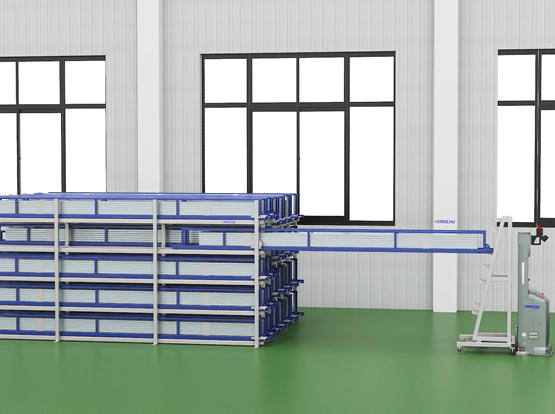

The core innovation of our Heavy-Duty Insertion-Style Pipe Storage Shelves lies in their installation and structural integrity. Unlike welded racks that are fixed permanently on-site, our system utilizes a precision Pipe Insertion method for assembly. Key structural components are pre-fabricated with high-tolerance sockets, allowing vertical uprights and horizontal beams to be seamlessly joined. This design offers multiple critical advantages:

• Unmatched Stability & Load Capacity: The insertion mechanism creates a rigid, interlocked frame capable of supporting immense weights. Our standard models, like the HC-G6055D, boast a remarkable capacity of 5 tonnes per layer side. This makes them ideal for storing dense metal pipes up to 12 meters in length.

• Simplified Installation & Reconfiguration: The assembly process is quicker and requires less specialized labor compared to welding. This not only reduces initial setup costs but also provides future flexibility. As your storage needs evolve, the rack can be disassembled and reconfigured—adjusting layer heights or even relocating the entire system—with minimal downtime.

• Superior Material and Finish: Constructed from high-grade Steel, every component undergoes a stringent Powder Coated Surface Treatment. This process provides exceptional Corrosion Protection and Anti-Rust properties, ensuring longevity even in harsh industrial environments. The finish is durable, scratch-resistant, and available in Customized Colors for coding or branding purposes.

Engineering for Safety and Efficiency

Safety is paramount in any storage operation. Our Heavy-Duty Long Pipe Storage Rack is designed with integrated safety features that protect both your personnel and inventory.

• Structural Integrity: The modular, insertion-style construction ensures uniform load distribution, eliminating weak points and preventing catastrophic failure.

• ESD Protection Options: For environments sensitive to static electricity, we offer ESD Protection features to mitigate risks associated with storing certain metal alloys or in specific manufacturing settings.

• Customizable Safety Add-ons: While the base structure is inherently secure, we provide optional safety barriers, end stops, and locking mechanisms for the storage arms to prevent accidental dislodging of pipes.

Efficiency is equally engineered into the system. The open design allows for easy forklift accessibility, while the clear vertical storage of pipes enables instant visual inventory management. Operators can quickly identify, reach, and retrieve the needed material without moving other items, drastically reducing retrieval time and labor costs.

Endless Customization for Your Exact Needs

We recognize that no two storage challenges are identical. Our strength as a manufacturer lies in our deep commitment to sample customization services. Our Insertion-Style Pipe Racks are not one-size-fits-all products.

• Adaptable Specifications: Key parameters such as Load (single layer), overall Size, number of Layers, and layer height are fully customizable. Whether you need to store 6m, 9m, or 12m pipes, we have a model or can engineer one for you.

• Application-Specific Design: Whether for Metal Pipe Storage in a fabrication shop or as part of a larger Warehouse Storage System, our technical engineers work directly with you. We consider factors like aisle width, ceiling height, forklift type, and pipe diameter to design the most space-optimized layout.

• Seamless Integration: This rack system can be integrated with other storage types, such as Drive-In Pallet Rack systems, to create a comprehensive and efficient Warehouse Rack ecosystem.

Conclusion

Investing in a Heavy-Duty Insertion-Style Pipe Storage Rack is an investment in operational excellence, safety, and scalability. It represents a move away from cumbersome, fixed storage towards a flexible, powerful, and intelligent solution. With our certifications (CE/ISO), manufacturing control, and dedicated local after-sales service, you gain more than just a product; you gain a reliable partner for your industrial storage needs. Contact us today to discuss how we can customize a rack system that turns your pipe storage area from a logistical challenge into a model of efficiency.
