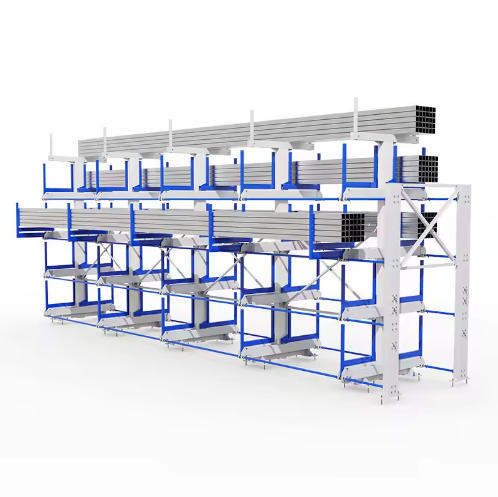

Heavy duty industrial pipe storage racks Pipe Racks & Cantilever Lumber Racking

Heavy duty industrial pipe storage racks Pipe Racks & Cantilever Lumber Racking

For industrial operations—from steel fabricators to large-scale warehouses—efficient, safe storage of pipes, lumber, and long materials is non-negotiable. Herochu’s Heavy Duty Industrial Pipe Storage Racks and Pipe Racks & Cantilever Lumber Racking systems are engineered to solve your most pressing storage challenges: maximizing space, ensuring load stability, and streamlining material access. Backed by CE, UE, and ISO 9001 certifications, every Herochu rack is built to withstand the rigors of demanding industrial environments, with customizable options to fit your workshop’s unique layout and needs—starting at just $3,698.

Heavy duty industrial pipe storage racks Pipe Racks & Cantilever Lumber Racking

Specification

Specifications	Load (single layer)	Size	Layers	Overall dimensions
HC-G6053D	3t	6m	4+1(Bilateral assistance)	6435x3340x1750mm
HC-G9055S	5t	9m	4+1(Unilateral assistance)	9435x3340x1550mm
HC-G9055D	5t	9m	4+1(Bilateral assistance)	9435x3340x1750mm
HC-G12055D	5t	12m	4+1(Bilateral assistance)	12435x3340x1750mm
Note: Both manual and electric can be customized, and the load-bearing capacity, length, number of layers, and layer height can be customized.

Herochu Heavy Duty Industrial Pipe Storage Racks: Customizable Cantilever & Lumber Racking Solutions

Engineered for Strength: Core Models & Specifications

Herochu offers four flagship models—HC-G6053S, HC-G6053D, HC-G9055S, and HC-G9055D—each designed to handle heavy loads while optimizing vertical and horizontal space. Here’s how they stack up:

Load Capacity (Single Layer): Ranging from 3 tons (HC-G6053S, HC-G6053D, HC-G9055D) to 5 tons (HC-G9055S), these racks support even the heaviest industrial pipes and lumber, eliminating the risk of structural failure.
Tube Length Compatibility: Choose between 6m (HC-G6053S/D) or 9m (HC-G9055S/D) configurations to accommodate standard and extra-long materials, reducing the need for cutting or awkward storage workarounds.
Layers: All models feature a 4+1 layer design, doubling your storage capacity without expanding your footprint. For operations needing more vertical space, custom layer counts are available (see “Customization” below).
Compartment Dimensions: Standard depth × height options include 600×400mm, 600×600mm, and 800×600mm—perfect for organizing different pipe diameters or lumber sizes. Need a non-standard fit? Herochu can tailor these dimensions to your inventory.
Overall Dimensions: From 6435x3340x1550mm (HC-G6053S) to 9435x3340x1750mm (HC-G9055D), each rack is sized to balance maneuverability with storage density. Narrow column spacing (1500mm for 9m models, 1800mm for 6m models) ensures stable support while leaving room for forklifts or material handlers.

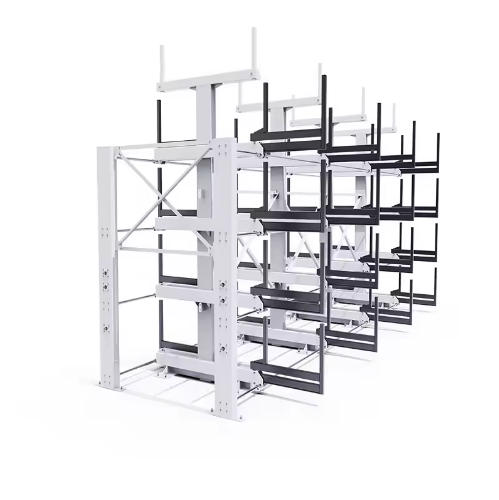

Cantilever Movement: Single-side (HC-G6053S, HC-G9055S) or double-side (HC-G6053D, HC-G9055D) power-assisted movement makes loading and unloading faster and safer. Unlike manual racks, the power-assisted system reduces operator fatigue and minimizes the risk of material drops—critical for heavy loads.

Additional safety-focused specs include a 330mm ground clearance (preventing moisture damage to materials) and top-floor heights of 3040mm (6m models) or 3840mm (9m models)—high enough to avoid overhead obstacles while keeping materials accessible.

Beyond Standard: Fully Customizable to Your Workshop

Every industrial space is unique, which is why Herochu’s Pipe Racks & Cantilever Lumber Racking is fully customizable. Whether you need to adjust load capacity, length, layer count, or height, our team works with you to design a system that fits your workflow:

Load Capacity: Upgrade from standard 3–5 tons per layer to 8 tons for ultra-heavy materials like thick-walled steel pipes or large lumber bundles.
Length & Dimensions: Extend beyond 6m or 9m, or shrink to fit compact workshops—custom overall dimensions ensure the rack integrates seamlessly with your existing layout.
Movement Type: Switch between manual or electric operation based on your team’s needs. Electric cantilevers reduce loading time by up to 40%, ideal for high-volume facilities.
Height: Adjust top-floor height to match ceiling clearances, or add extra layers (up to 12) for maximum vertical storage—perfect for warehouses struggling with floor space.

The Herochu Difference: Safety, Durability, and Efficiency

What sets Herochu’s Heavy Duty Industrial Pipe Storage Racks apart from generic solutions? It’s the attention to detail that protects your team and your inventory:

Tilted Cantilever Design (2°–4°): Prevents heavy materials from slipping or scattering during loading, reducing the risk of workplace accidents.
Reinforced Arm Ends & Base Retainers: Adds an extra layer of security, keeping pipes and lumber in place even if the rack is jostled by equipment.
Heavy-Duty Bracing & Extended Base: Ensures stability on uneven factory floors, eliminating wobble that can damage materials or compromise safety.
Space-Saving Efficiency: By utilizing vertical space and compact design, Herochu racks free up to 60% more floor space compared to traditional storage methods—space you can use for production, additional inventory, or equipment.

For steel fabricators, logistics centers, and warehouses, this translates to tangible results: faster material access, fewer injuries, and lower operational costs. Whether you’re storing 6m steel pipes, 9m lumber, or bulky sheet metal, Herochu’s cantilever racks turn disorganized storage into a streamlined asset.

Invest in Reliability: Start at $3,698

Herochu’s Pipe Racks & Cantilever Lumber Racking isn’t just a storage solution—it’s a long-term investment in your operation’s efficiency and safety. With CE, UE, and ISO 9001 certification, you can trust that every rack meets global quality standards, while customizable options ensure it grows with your business.

Still worried about pipe storage? Let Herochu’s telescopic cantilever shelves take the stress out of it. With up to 12 tons of storage per floor (on custom models) and safe, fast access, these racks transform chaotic inventory into a well-organized system.

Contact Herochu today to discuss your custom rack design, and take the first step toward a safer, more efficient workshop.

FAQ

Here are some frequently asked questions about our sheet metal racks and pipe storage solutions. We hope you find them helpful!

Q1: Can I request a custom size or color?
Absolutely. We offer complimentary design services and deliver efficient, tailored solutions to meet your specific requirements.

Q2: Are you a manufacturer or a distributor?
We are a direct manufacturer with over 15 years of industry experience and expertise.

Q3: Is there a minimum order quantity?
No. We welcome orders of any size, starting from a single unit.

Q4: How can I get detailed product information?
Click the “Get a Quote” button to receive product images, detailed specifications, and videos. Our team is always ready to assist.

Q5: How do I provide my storage rack requirements?
Simply share the type, dimensions, and quantity of materials you plan to store, along with any other specific needs. We will develop a professional storage solution for you. Alternatively, leave your contact details for a personalized consultation.

Q6: Do you offer automated loading systems or robotic arms?
Yes. We provide loading robotic arms and integrated loading/unloading systems tailored to your laser cutting machine’s table size and material handling method (e.g., board rack, exchange platform, or material warehouse). Contact us with your details for a customized proposal.

Q7: Do you provide on-site installation and debugging?
Yes. Our technicians can travel to your facility for installation and debugging, ensuring successful operation. We have served clients globally, including in the USA, South Korea, Russia, Qatar, Mexico, South Africa, Egypt, and Lebanon.

Q8: How do you ensure product quality?
Our quality assurance includes:

A team of over 40 technical engineers for professional debugging and support.
A dedicated quality control department compliant with ISO9001 standards.
CE certification for all exports.
Rigorous load testing before shipment to ensure structural safety and reliability.

Q9: Where is your factory located?
Our modern 10,000-square-meter manufacturing facility is located in Jiyang Industrial Park, Jinan, Shandong, China.

Q10: How can I evaluate your company’s capabilities?
We offer virtual video factory tours and warmly welcome on-site visits.

Q11: What does your company specialize in?
Jinan Constant Storage Machinery Manufacturing Co., Ltd. is a high-tech enterprise specializing in the R&D, production, sales, installation, and service of intelligent storage solutions. Our product range includes sheet material warehouses, drawer-style shelves, cantilever racks, servo manipulators, gantry loaders, and fully automated handling systems. Supported by a skilled technical team and advanced equipment, we are committed to delivering high-performance storage products and solutions to customers worldwide.
