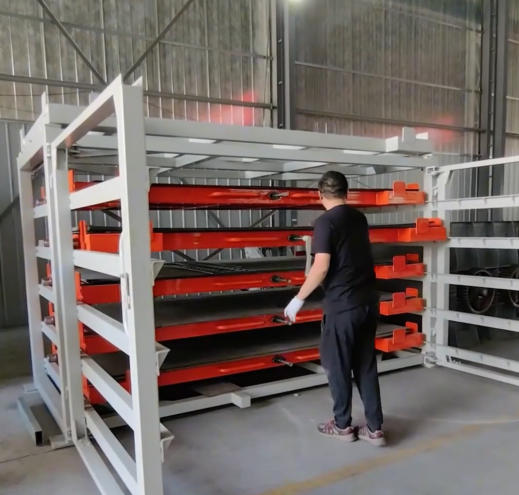

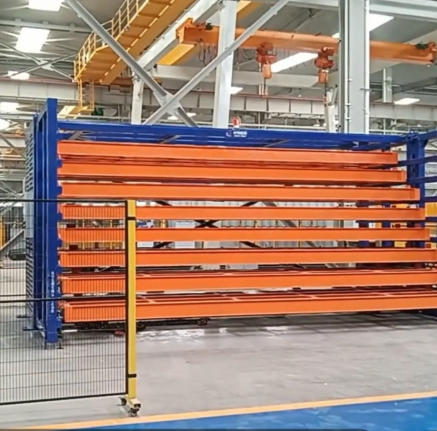

Heavy Duty Horizontal Sheet Metal Storage System
The Herochu Heavy Duty Horizontal Sheet Metal Storage System redefines industrial material organization with its welded steel construction and CE/EU/ISO 9001-certified reliability. Designed for workshops handling sheet and plate materials, this drawer-type system empowers a single operator to manage large inventories efficiently. Starting at $3,660, it’s a scalable investment for businesses prioritizing space optimization and workflow efficiency.
Heavy Duty Horizontal Sheet Metal Storage System
|
Specifications
|
Load (single layer)
|
Size
|
Layers
|
Overall dimensions
|
|
HC-B3015-63
|
3t
|
3000x1500mm
|
5+1
|
3505x2280x2000mm
|
|
HC-B4015-63
|
5t
|
4000x1500mm
|
5+1
|
4505x2280x2000mm
|
|
HC-B4020-65
|
5t
|
4000x2000mm
|
5+1
|
4505x2280x2500mm
|
|
HC-B6020-66
|
5t
|
6000x2000mm
|
5+1
|
6505x2280x2500mm
|
|
Note: Both manual and electric can be customized, and the load-bearing capacity, length, number of layers, and layer height can be customized.
|
||||
Herochu Heavy Duty Horizontal Sheet Metal Storage System: Industrial-Grade Organization for Your Workshop
Engineered for Precision, Built for Durability
The Herochu Heavy Duty Horizontal Sheet Metal Storage System redefines industrial material organization with its welded steel construction and CE/EU/ISO 9001-certified reliability. Designed for workshops handling sheet and plate materials, this drawer-type system empowers a single operator to manage large inventories efficiently. Starting at $3,660, it’s a scalable investment for businesses prioritizing space optimization and workflow efficiency.
Core Features: Where Innovation Meets Functionality
1. Uncompromising Stability & Load Capacity
- Heavy-Duty Construction: Reinforced steel frames and ball-bearing rollers ensure smooth, maintenance-free drawer operation, even at full extension.
- Customizable Load Capacity: Each shelf supports 500–2,000 kg (standard); reinforced configurations accommodate up to 5,000 kg per shelf for molds and thick metal plates.
- Adaptable Flooring: Open-floor drawers allow easy crane access, with optional wooden planks or steel plates for delicate materials.
2. Space-Smart Design for Maximum Efficiency
- Folding Projection Technology: Drawers retract fully to minimize footprint, freeing up workspace.
- Roof Storage Option: Additional overhead storage boosts vertical utilization without expanding floor area.
- Roll-Out Aids: Mechanical or electric drives simplify handling for payloads exceeding 2,000 kg.
3. Operator-Centric Safety & Convenience
- 100% Material Access: Full-length extraction eliminates partial visibility, reducing retrieval time.
- Secure Locking Mechanism: Rod-locked drawers prevent accidental sliding during use.
- Double-Sided Roller Bearings: Ensure effortless operation from either side, even with heavy loads.
Tailored Solutions for Diverse Needs
Herochu’s system isn’t one-size-fits-all—it’s your system. Customizable parameters include:
- Shelving Configuration: Adjustable bay/level counts to match warehouse dimensions.
- Accessories: Sheet supports, protective grilles, and reinforced edges for specialized materials.
- Layout Flexibility: Modular components allow easy transport and assembly, adapting to evolving workshop needs.
Why Choose Herochu?
- Certified Quality: Compliant with CE, EU, and ISO 9001 standards.
- Cost-Effective Scalability: Base models start at $3,660, with premium options for high-capacity demands.
- End-to-End Support: From consultation to installation, our team ensures seamless integration into your workflow.
Quick Quotation Guide
To receive a tailored proposal, provide:
- Pallet Size (L×W×Loading Height in mm).
- Warehouse Layout (L×W×Net Height in mm).
- Rack Specifications (if available) or let us design for you.
- Bay/Level Requirements.
- Per-Level/Pallet Load Capacity (kg).
Conclusion: The Herochu Sheet Metal Storage System isn’t just storage—it’s a productivity multiplier. By combining industrial-grade durability with smart space management, it transforms how workshops handle heavy materials. Ready to optimize your workspace? Contact us today for a customized solution.
FAQ
Here are some frequently asked questions about our sheet metal racks and pipe storage solutions. We hope you find them helpful!
Q1: Can I request a custom size or color?
Absolutely. We offer complimentary design services and deliver efficient, tailored solutions to meet your specific requirements.
Q2: Are you a manufacturer or a distributor?
We are a direct manufacturer with over 15 years of industry experience and expertise.
Q3: Is there a minimum order quantity?
No. We welcome orders of any size, starting from a single unit.
Q4: How can I get detailed product information?
Click the “Get a Quote” button to receive product images, detailed specifications, and videos. Our team is always ready to assist.
Q5: How do I provide my storage rack requirements?
Simply share the type, dimensions, and quantity of materials you plan to store, along with any other specific needs. We will develop a professional storage solution for you. Alternatively, leave your contact details for a personalized consultation.
Q6: Do you offer automated loading systems or robotic arms?
Yes. We provide loading robotic arms and integrated loading/unloading systems tailored to your laser cutting machine’s table size and material handling method (e.g., board rack, exchange platform, or material warehouse). Contact us with your details for a customized proposal.
Q7: Do you provide on-site installation and debugging?
Yes. Our technicians can travel to your facility for installation and debugging, ensuring successful operation. We have served clients globally, including in the USA, South Korea, Russia, Qatar, Mexico, South Africa, Egypt, and Lebanon.
Q8: How do you ensure product quality?
Our quality assurance includes:
A team of over 40 technical engineers for professional debugging and support.
A dedicated quality control department compliant with ISO9001 standards.
CE certification for all exports.
Rigorous load testing before shipment to ensure structural safety and reliability.
Q9: Where is your factory located?
Our modern 10,000-square-meter manufacturing facility is located in Jiyang Industrial Park, Jinan, Shandong, China.
Q10: How can I evaluate your company’s capabilities?
We offer virtual video factory tours and warmly welcome on-site visits.
Q11: What does your company specialize in?
Jinan Constant Storage Machinery Manufacturing Co., Ltd. is a high-tech enterprise specializing in the R&D, production, sales, installation, and service of intelligent storage solutions. Our product range includes sheet material warehouses, drawer-style shelves, cantilever racks, servo manipulators, gantry loaders, and fully automated handling systems. Supported by a skilled technical team and advanced equipment, we are committed to delivering high-performance storage products and solutions to customers worldwide.

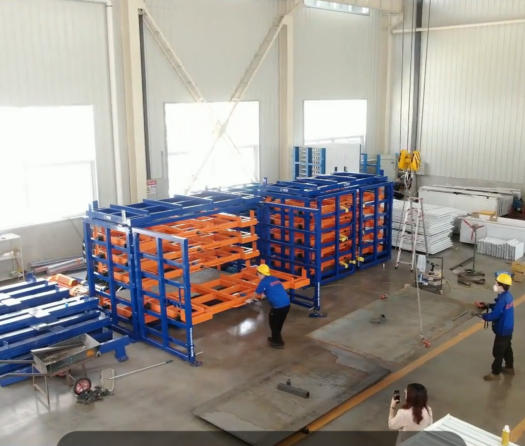

Customer visit
Herochu has always been adhering to the market-centric approach to meet customer requirements to the maximum extent, and the business philosophy of “creating brands with heart and gaining reputation with sincerity”. It provides customers with high-quality products and services with rigorous military quality, professionalism, and excellence, and has won unanimous praise in the Chinese aerospace, Chinese weapons, Chinese railways, automobile manufacturing, engineering machinery, non-ferrous metal titanium alloy and other industries.
