In modern industrial environments—especially metal fabrication shops, automotive plants, and aerospace manufacturing facilities—the efficient storage of sheet metal is not just a logistical concern; it’s a critical factor in productivity, safety, and space optimization. Among the most advanced solutions available today is the Heavy Duty Drawer Type Sheet Rack for Factory Warehouse, engineered to handle extreme loads while delivering ergonomic access and seamless integration with automated production lines.

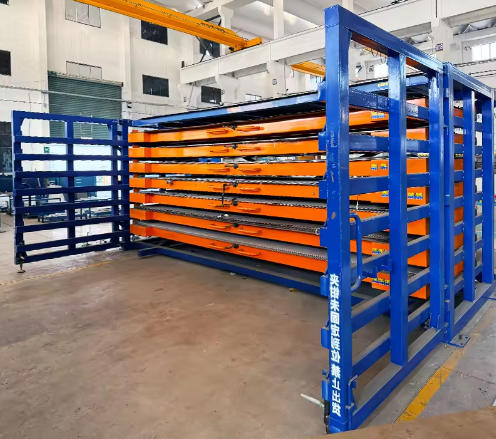

Heavy Duty Drawer Type Sheet Rack for Factory Warehouse – Maximize Space & Safety in Industrial Storage

Why Traditional Racking Falls Short

Conventional pallet racking or static shelving systems often fail when it comes to storing large, flat materials like steel, aluminum, or composite sheets. These materials are heavy, awkward to maneuver, and prone to damage if improperly stacked. Workers frequently resort to unsafe practices—such as climbing shelves or manually dragging sheets—leading to workplace injuries and material waste. This inefficiency directly impacts throughput, especially in high-volume operations where seconds matter.

Enter the drawer-type sheet rack: a purpose-built industrial storage system designed specifically for flat stock. Unlike standard shelving, these units feature fully extendable, roll-out drawers that glide smoothly on heavy-duty steel rails, allowing operators to access any sheet without disturbing adjacent materials.

Engineering Excellence: Built for Extreme Demands

Our flagship model series—including HC-B3015-63, HC-B4015-63, HC-B4020-65, and HC-B6020-66—are constructed from Q235B-grade carbon steel, a material renowned for its tensile strength and resistance to deformation under load. Each frame is welded using CO₂-shielded arc welding, ensuring structural integrity at every joint. This technique eliminates weak points and guarantees long-term durability, even in corrosive or high-humidity warehouse environments.

The loading capacity per layer ranges from 3 to 6 tons, depending on the model. For instance:

The HC-B3015-63 supports 3 tons per drawer across five main layers plus one auxiliary level.
The larger HC-B6020-66 handles up to 6 tons per layer, ideal for aerospace-grade titanium or thick stainless steel plates.

These capacities aren’t theoretical—they’re rigorously tested under real-world conditions to meet ISO and CE industrial standards.

Ergonomic Design Meets Operational Efficiency

One of the standout features of this Heavy Duty Drawer Type Sheet Rack is its ergonomic pull-out mechanism. The drawers utilize precision-engineered industrial-grade slide rails that require minimal force to operate, even when fully loaded. Full extension allows 100% visibility and access to stored sheets, eliminating blind spots and reducing handling time by up to 40%.

This design directly supports lean manufacturing principles. In a metal processing workshop, for example, laser cutting machines can be fed continuously without delays caused by material retrieval bottlenecks. Similarly, automotive stamping lines benefit from immediate access to pre-cut blanks, minimizing machine idle time.

Customization for Real-World Needs

No two factories are alike—and neither are their storage requirements. That’s why we offer full customization:

Load-bearing capacity: Tailored from 3 to 20 tons per layer based on your heaviest materials.
Dimensions: Standard sheet sizes include 3000×1500mm, 4000×1500mm, 4000×2000mm, and 6000×2000mm—but custom footprints are available.
Color options: Choose from RAL-standard finishes to match facility branding or safety coding (e.g., yellow for caution zones).
Layer configuration: Adjust the number and spacing of drawers to accommodate varying sheet thicknesses or batch sizes.

Seamless Integration with Smart Manufacturing

As part of Ji’nan Constant Storage Machinery Manufacturing Co., Ltd.’s trinity of innovation—laser cutting, intelligent warehousing, and truss linkage automation—these racks can be integrated into fully automated material handling systems. When paired with robotic arms or AGVs (Automated Guided Vehicles), the drawer racks become nodes in a smart logistics network, enabling just-in-time delivery of raw materials to CNC machines.

For clients investing in Industry 4.0, this compatibility is invaluable. It transforms passive storage into an active component of the production flow.

Trusted Across Industries

From electronic appliance manufacturers storing copper-clad laminates to railway component suppliers managing high-strength steel plates, our racks have proven reliability across sectors. Customers consistently report:

Reduced workplace injuries
Lower material damage rates
Faster order fulfillment cycles

Each unit ships with professional protective packaging and arrives ready for installation. Our team provides free customized design consultations, real-time factory video inspections, and post-delivery support to ensure seamless deployment.

Conclusion

The Heavy Duty Drawer Type Sheet Rack for Factory Warehouse isn’t just shelving—it’s a strategic asset. By combining massive load capacity, ergonomic access, and modular flexibility, it solves the core challenges of flat-material storage in demanding industrial settings. Whether you run a small job shop or a multinational aerospace plant, this system delivers measurable ROI through enhanced safety, space utilization, and operational speed.

FAQ

Here are some frequently asked questions about our sheet metal racks and pipe storage solutions. We hope you find them helpful!

Q1: Can I request a custom size or color?
Absolutely. We offer complimentary design services and deliver efficient, tailored solutions to meet your specific requirements.

Q2: Are you a manufacturer or a distributor?
We are a direct manufacturer with over 15 years of industry experience and expertise.

Q3: Is there a minimum order quantity?
No. We welcome orders of any size, starting from a single unit.

Q4: How can I get detailed product information?
Click the “Get a Quote” button to receive product images, detailed specifications, and videos. Our team is always ready to assist.

Q5: How do I provide my storage rack requirements?
Simply share the type, dimensions, and quantity of materials you plan to store, along with any other specific needs. We will develop a professional storage solution for you. Alternatively, leave your contact details for a personalized consultation.

Q6: Do you offer automated loading systems or robotic arms?
Yes. We provide loading robotic arms and integrated loading/unloading systems tailored to your laser cutting machine’s table size and material handling method (e.g., board rack, exchange platform, or material warehouse). Contact us with your details for a customized proposal.

Q7: Do you provide on-site installation and debugging?
Yes. Our technicians can travel to your facility for installation and debugging, ensuring successful operation. We have served clients globally, including in the USA, South Korea, Russia, Qatar, Mexico, South Africa, Egypt, and Lebanon.

Q8: How do you ensure product quality?
Our quality assurance includes:

A team of over 40 technical engineers for professional debugging and support.
A dedicated quality control department compliant with ISO9001 standards.
CE certification for all exports.
Rigorous load testing before shipment to ensure structural safety and reliability.

Q9: Where is your factory located?
Our modern 10,000-square-meter manufacturing facility is located in Jiyang Industrial Park, Jinan, Shandong, China.

Q10: How can I evaluate your company’s capabilities?
We offer virtual video factory tours and warmly welcome on-site visits.

Q11: What does your company specialize in?
Jinan Constant Storage Machinery Manufacturing Co., Ltd. is a high-tech enterprise specializing in the R&D, production, sales, installation, and service of intelligent storage solutions. Our product range includes sheet material warehouses, drawer-style shelves, cantilever racks, servo manipulators, gantry loaders, and fully automated handling systems. Supported by a skilled technical team and advanced equipment, we are committed to delivering high-performance storage products and solutions to customers worldwide.
