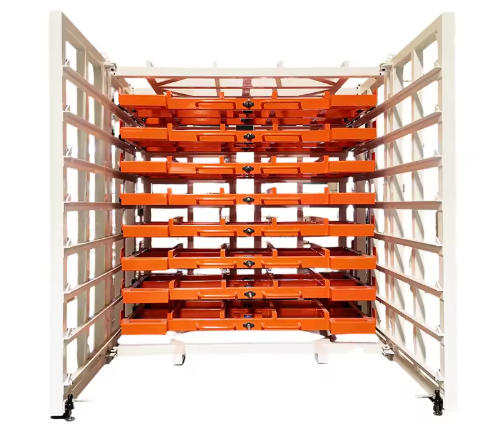

Heavy Duty Drawer Type Metal Sheet Storage Rack

In the hierarchy of warehouse storage, standard pallet racking sits at the bottom, while specialized solutions sit at the top. The Heavy Duty Drawer Type Metal Sheet Storage Rack is a premium solution designed for a specific, high-value problem: the storage of long, flat, and heavy sheet goods.This article explores the advanced features of this system, including electric operation, custom sizing, and its role as a comprehensive “Metal Sheet Organizer.”

Category Drawer Type Sheet Metal Racks Tag Heavy Duty Drawer Type Metal Sheet Storage Rack

Heavy Duty Drawer Type Metal Sheet Storage Rack

This article explores the advanced features of this system, including electric operation, custom sizing, and its role as a comprehensive “Metal Sheet Organizer.”

The “Organizer” Philosophy

Why use the word “Organizer”? Because that is exactly what this system does—it imposes order on chaos. In a fabrication shop, time is money. If a laser cutter is waiting for a sheet of steel, and that sheet is buried at the bottom of a pile, the machine is losing money every second.

A Heavy Duty Drawer Type Metal Sheet Storage Rack acts as a filing cabinet for heavy industry. Just as you wouldn’t throw loose papers into a box, you shouldn’t throw expensive metal sheets onto a pile. The drawer system categorizes material by type, thickness, and grade.

Organizational Features:

Labeling: The front of each drawer provides ample space for barcodes or RFID tags, allowing for digital inventory tracking.
Segmentation: Drawers can be fitted with dividers to separate smaller offcuts or remnants, ensuring that usable material isn’t wasted.

Advanced Extension Methods

One of the most sophisticated aspects of these racks is the variety of extension methods available, catering to different levels of technological integration.

Manual Pulling: For lighter loads (1-2 tons) or lower frequency usage, a manual pull is cost-effective and reliable. It requires no power and minimal maintenance.

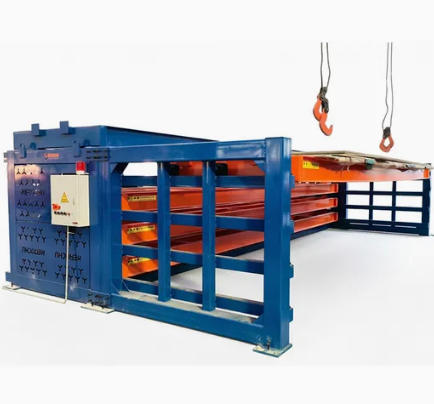

Electric Extension: For heavy loads (5-20 tons) or high-throughput environments, electric motors are installed on the rack structure. These motors engage a gear or chain drive to pull the heavy drawer out. This is often controlled via a pendant or a button panel.
Automatic Extension: In fully automated warehouses, these racks can be interfaced with Warehouse Management Systems (WMS). The system can automatically retrieve the required drawer and present it to a loading bay or robot arm.

Customization: The Key to Fit

The “Heavy Duty Drawer Type Metal Sheet Storage Rack” is not a one-size-fits-all product. It is highly customizable to fit the specific “Plate Size” requirements of the industry.

Standard vs. Custom:
While standard sizes like 6000mm x 2000mm cover the majority of sheet metal needs, some industries require specialized dimensions.

Oversized Plates: For the shipbuilding or aerospace industries, racks can be engineered to hold plates longer than 6 meters or wider than 2 meters.
Double-Sided Access: Some racks can be configured for back-to-back loading, allowing two different production lines to access the same inventory from opposite sides.
Height Adjustments: The “Single layer height” is fully adjustable. Whether you need to store thin gauge aluminum (requiring tight spacing) or thick steel blocks (requiring wide spacing), the rack adapts to you.

Compatibility with Lifting Equipment

A crucial design consideration for these racks is their interface with lifting equipment. The design assumes that a human will not be lifting the metal. Therefore, the rack is designed to facilitate machine handling.

Vacuum Lifters: The open-frame design of the drawers allows vacuum lifters to approach from any angle. There are no cross-bars obstructing the top of the sheet.
Cranes and Jibs: The 100% extension ensures that the center of gravity of the load is accessible. A crane hook can be positioned directly over the center of the plate without the rack立柱 getting in the way.
Forklifts: For lower-level drawers, specialized forklift attachments (like sheet clamps) can be used to slide the material out.

Delivery and Installation

Because these are large, industrial structures, the procurement process is professional and service-oriented.

Delivery Cycle: Typically around 30 days, allowing for manufacturing and quality control checks.
Installation: Professional installation is usually provided. “On-site installation and online guidance” ensures that the rack is assembled correctly and anchored safely. This is vital for tall units (over 3 meters) which must be secured to the floor to prevent tipping.

Final Thoughts

The Heavy Duty Drawer Type Metal Sheet Storage Rack is the ultimate answer to the question of how to store flat stock efficiently. It combines the density of block stacking with the accessibility of shelving. By integrating advanced extension methods, customizable dimensions, and a focus on organization, it transforms the raw material storage area from a cost center into a streamlined, efficient asset. For any serious metalworking operation, it is an indispensable tool.

FAQ

Here are some frequently asked questions about our sheet metal racks and pipe storage solutions. We hope you find them helpful!

Q1: Can I request a custom size or color?
Absolutely. We offer complimentary design services and deliver efficient, tailored solutions to meet your specific requirements.

Q2: Are you a manufacturer or a distributor?
We are a direct manufacturer with over 15 years of industry experience and expertise.

Q3: Is there a minimum order quantity?
No. We welcome orders of any size, starting from a single unit.

Q4: How can I get detailed product information?
Click the “Get a Quote” button to receive product images, detailed specifications, and videos. Our team is always ready to assist.

Q5: How do I provide my storage rack requirements?
Simply share the type, dimensions, and quantity of materials you plan to store, along with any other specific needs. We will develop a professional storage solution for you. Alternatively, leave your contact details for a personalized consultation.

Q6: Do you offer automated loading systems or robotic arms?
Yes. We provide loading robotic arms and integrated loading/unloading systems tailored to your laser cutting machine’s table size and material handling method (e.g., board rack, exchange platform, or material warehouse). Contact us with your details for a customized proposal.

Q7: Do you provide on-site installation and debugging?
Yes. Our technicians can travel to your facility for installation and debugging, ensuring successful operation. We have served clients globally, including in the USA, South Korea, Russia, Qatar, Mexico, South Africa, Egypt, and Lebanon.

Q8: How do you ensure product quality?
Our quality assurance includes:

A team of over 40 technical engineers for professional debugging and support.
A dedicated quality control department compliant with ISO9001 standards.
CE certification for all exports.
Rigorous load testing before shipment to ensure structural safety and reliability.

Q9: Where is your factory located?
Our modern 10,000-square-meter manufacturing facility is located in Jiyang Industrial Park, Jinan, Shandong, China.

Q10: How can I evaluate your company’s capabilities?
We offer virtual video factory tours and warmly welcome on-site visits.

Q11: What does your company specialize in?
Jinan Constant Storage Machinery Manufacturing Co., Ltd. is a high-tech enterprise specializing in the R&D, production, sales, installation, and service of intelligent storage solutions. Our product range includes sheet material warehouses, drawer-style shelves, cantilever racks, servo manipulators, gantry loaders, and fully automated handling systems. Supported by a skilled technical team and advanced equipment, we are committed to delivering high-performance storage products and solutions to customers worldwide.
