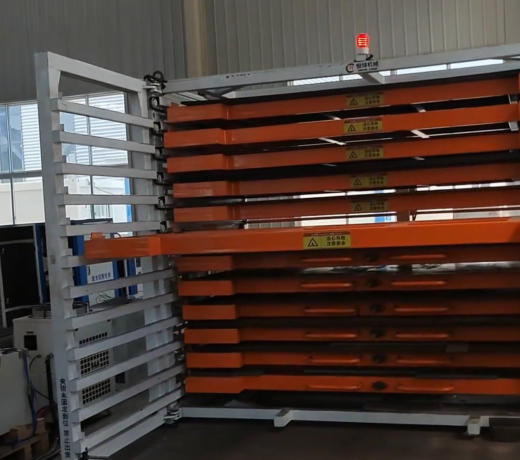

Heavy-Duty Drawer Rack Storage System – Your Metal Sheet Storage Partner

The ‌Heavy-Duty Drawer Rack Storage System‌ is a game-changer for industries that rely on efficient metal sheet storage. Traditional shelving systems often fall short in handling large, heavy, or irregularly shaped materials, leading to operational inefficiencies and safety risks. This innovative solution, designed as a ‌Drawer rack Storage system for metal sheet‌, addresses these challenges with advanced features and customizable options. This article explores the benefits, specifications, and real-world applications of this system, highlighting its role as a reliable storage partner.

‌Why Opt for a Heavy-Duty Drawer Rack Storage System?‌

‌1. Streamlined Material Retrieval‌

The system eliminates the need for external machinery during material retrieval. Each drawer unit features ‌rollers or rails‌, allowing operators to pull out entire shelves with ease. This design empowers a single worker to access heavy sheets effortlessly, reducing retrieval time and labor costs. For example, in a furniture manufacturing workshop, employees can swiftly pull out drawers to access specific boards, eliminating the need for complex material handling equipment.

‌2. Robust Safety Protocols‌

Safety is paramount in industrial settings. The system incorporates ‌anti-pinch design features‌, including safety gaps between drawers and frames, to prevent operator injuries during manipulation. Additionally, ‌robust locks‌ ensure drawers remain secure in both extended and retracted positions, minimizing risks of accidental slippage or collapse. These safety enhancements make the system ideal for environments handling heavy loads, such as automotive or aerospace manufacturing.

‌3. Space Optimization and Flexibility‌

The system maximizes vertical and horizontal space utilization by allowing drawers to ‌extend to 100% depth‌. This feature ensures seamless access to materials stored at the rear, eliminating wasted space. Customizable layer configurations enable businesses to adjust the number of shelves based on material thickness and inventory volume. For instance, the HC-B3015-63 model offers six customizable layers, making it perfect for small workshops with limited floor space.

‌4. Versatile Material Handling‌

The system excels in storing diverse materials, including steel, aluminum, and other metals. Its ‌drawer-style design‌ ensures boards are stored in layers without stacking, preventing damage and deformation. This feature is particularly beneficial in industries like building materials warehouses, where preserving material integrity is critical. Moreover, the rack integrates with ‌workshop lifting equipment‌, such as gantry cranes, facilitating mechanized storage and retrieval of heavy plates.

‌Key Specifications of Heavy-Duty Drawer Rack Storage Systems‌

‌1. HC-B3015-63 – Compact Efficiency‌

• ‌Load Capacity‌: 3 tons per layer
• ‌Size‌: 3 x 1.5 meters
• ‌Layers‌: 6 customizable
• ‌Overall Dimensions‌: 3505 x 2280 x 2000 mm
• ‌Ideal for‌: Small-scale metalworking shops or facilities with space constraints.

‌2. HC-B4015-65 – High-Capacity Workhorse‌

• ‌Load Capacity‌: 5 tons per layer
• ‌Size‌: 4 x 1.5 meters
• ‌Layers‌: 6 customizable
• ‌Overall Dimensions‌: 4505 x 2280 x 2000 mm
• ‌Ideal for‌: Medium-sized manufacturing plants requiring heavy-duty storage.

‌3. HC-B4020-68 – Extra-Large Load Support‌

• ‌Load Capacity‌: 8 tons per layer
• ‌Size‌: 4 x 2 meters
• ‌Layers‌: 6 customizable
• ‌Overall Dimensions‌: 4505 x 2280 x 2500 mm
• ‌Ideal for‌: Large industrial facilities handling oversized metal sheets.

‌4. HC-B6020-610 – Maximum Capacity Solution‌

• ‌Load Capacity‌: 10 tons per layer
• ‌Size‌: 6 x 2 meters
• ‌Layers‌: 6 customizable
• ‌Overall Dimensions‌: 6505 x 2280 x 2500 mm
• ‌Ideal for‌: Heavy-duty applications, such as automotive or aerospace manufacturing.

‌Core Advantages of Heavy-Duty Sheet Metal Storage Racks‌

‌1. Ergonomic Design‌

• ‌Comfortable handles and accessible locks‌ ensure ease of use, even under full load conditions (up to 3000 kg per drawer).
• ‌100% drawer extension‌ allows operators to retrieve materials without straining, reducing workplace injuries and fatigue.

‌2. Modular Customization‌

• ‌Customizable layer heights‌ accommodate varying material sizes, ensuring optimal space utilization.
• ‌Load-bearing customization‌ enables tailored designs based on maximum weight per stack, enhancing structural integrity.
• ‌Size adaptability‌ allows for extra depth and width adjustments (+500mm allowance), tailored to the longest and widest board dimensions.

‌3. Advanced Safety Features‌

• ‌Safety signs and warnings‌ are prominently displayed, indicating maximum layer load capacities to prevent overloading.
• ‌Label system‌ includes transparent label sleeves or reserved areas for material information cards, enabling visual management and reducing retrieval errors.
• ‌Ladder truck compatibility‌ facilitates safe access to top-level materials, eliminating the need for risky climbing.

‌4. Integration with Material Handling Systems‌

• ‌Workshop lifting equipment integration‌ (e.g., gantry cranes) enables mechanized storage and retrieval, streamlining workflow.
• ‌Mezzanine installation option‌ allows businesses to maximize hall space by adding custom-designed platforms for additional storage or workspace.

‌Case Study: Laser Cutting Machine Integration‌

In a real-world application, the Heavy-Duty Drawer Rack Storage System was installed adjacent to a laser cutting machine, creating a seamless operational workflow. The system features ‌static doors‌ (a cost-effective alternative to swing doors), ensuring stability during material handling. A ‌vacuum manipulator‌ retrieves sheets from the drawer, while a ‌jib crane‌ assists in placing the sheet onto the machine table. This setup significantly accelerates sheet metal work, reducing downtime and enhancing precision.

‌Conclusion‌

The ‌Heavy-Duty Drawer Rack Storage System‌ is a transformative innovation for industries handling large metal sheets. By combining ‌ergonomic design, enhanced safety, and customizable configurations‌, it addresses the inefficiencies of traditional shelving systems. Whether for small workshops or large-scale manufacturing, this ‌Drawer Type Sliding Sheet Rack‌ offers unparalleled efficiency, safety, and space optimization.

For expert guidance on selecting the right Heavy-Duty Drawer Rack Storage System for your needs, contact our team today. Let us help you revolutionize your material storage and unlock the full potential of your industrial operations!
