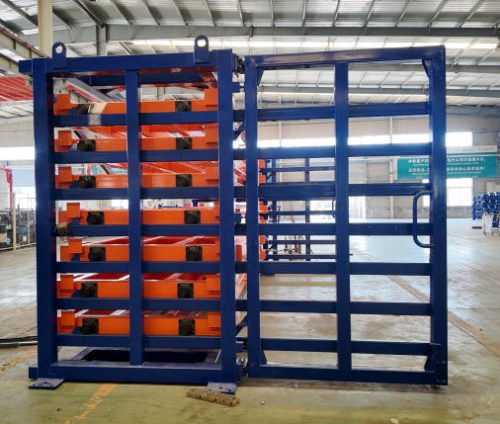

Heavy Duty Drawer Metal Structure Rack Heavy Duty Metal drawer type storage racks

Drawer-type metal plate rack | Warehouse Metal Drawer-out Sheets Rack

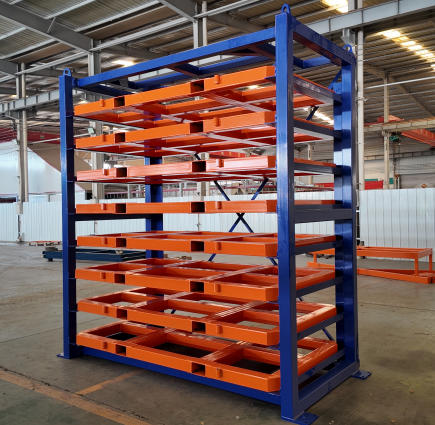

Heavy Duty Drawer Metal Structure Rack Heavy Duty Metal drawer type storage racks

Sheet metal, aluminum plates, and large flat products are bulky, heavy, and prone to scratches or bending if stored improperly. Generic shelving systems either stack these items haphazardly (wasting vertical space) or require manual lifting (slowing down retrieval and risking worker injury). The Herochu Heavy Duty Drawer Metal Structure Rack is designed specifically to solve these issues, combining robust construction with user-centric features that redefine how warehouses handle flat and sheet-like materials.

Heavy Duty Drawer Metal Structure Rack Heavy Duty Metal drawer type storage racks

In modern warehouse operations, storing sheet metal, aluminum plates, flat products, and large tools often presents two critical challenges: underutilized vertical space and inefficient retrieval processes. Traditional storage solutions force warehouses to choose between “maximizing capacity” and “ensuring quick access”—a trade-off that leads to cluttered floors, delayed order fulfillment, and increased risk of material damage. Herochu’s Heavy Duty Drawer Metal Structure Rack eliminates this compromise. As a CE, UE, and ISO 9001 certified heavy duty metal drawer type storage rack system, it’s engineered to fully leverage vertical space, streamline goods management, and enhance workplace safety—making it the ultimate storage solution for facilities handling sheet metal and flat products.

Why Herochu Heavy Duty Metal Drawer Type Storage Racks Transform Warehouse Operations

At its core, this racking system excels at full vertical space utilization—a game-changer for warehouses struggling with limited floor area. By converting unused vertical space into organized storage layers, it dramatically increases the storage capacity of sheets while boosting storage efficiency per unit area. Unlike traditional shelving that limits you to 2-3 layers of safe storage, Herochu’s design supports up to 6 standard layers (across all models), letting you store more materials without expanding your warehouse footprint.

The signature drawer-style design of this heavy duty metal drawer type storage rack further elevates efficiency. Each layer functions as a smooth-rolling drawer, allowing for effortless classification and storage of goods. Whether you’re organizing steel sheets by thickness, aluminum plates by size, or tools by application, the dedicated drawers eliminate cross-contamination of materials and make inventory checks a breeze. Plus, the inclusion of sleepers on each drawer’s pallet ensures forklifts can accurately place or remove sheet metal—no more guesswork, no more accidental collisions with rack frames. This precision not only speeds up goods handling but also reduces the risk of damaging high-value sheet materials, cutting down on waste and replacement costs.

Fully Customizable to Match Your Workshop’s Unique Requirements

Every warehouse has distinct needs: varying workshop layouts, different sheet sizes (from 30001500mm to 60002000mm), and unique operational workflows. Herochu recognizes that a “one-size-fits-all” heavy duty drawer metal structure rack won’t deliver maximum value, which is why we offer full customization tailored to your facility.

Our team works closely with you to adjust key parameters: from modifying drawer dimensions to fit oversized plates, to adjusting layer heights to accommodate extra-thick materials, or even integrating additional safety features for specialized operations. Whether your workshop handles small-batch aluminum plates or large-volume steel sheets, the customized rack will align perfectly with your space and workflow. Best of all, Herochu’s customized Heavy Duty Drawer Metal Structure Rack pricing starts from just $3,660—an accessible investment for small, medium, and large warehouses looking to upgrade their storage without breaking the bank.

For facilities that prefer ready-to-use solutions, Herochu also offers four high-performance standard models, each optimized for common sheet sizes and storage demands:

HC-B3015-63: Ideal for 3000*1500mm plates, with 6 layers for balanced capacity and accessibility.

HC-B4015-63: Designed for 4000*1500mm sheets, featuring 6 layers to maximize vertical storage for mid-sized materials.

HC-B4020-65: Engineered for 4000*2000mm flat products, combining 6 layers with enhanced load-bearing to handle heavier sheets.

HC-B6020-65: The largest standard model, built for 6000*2000mm large plates, with 6 layers to support high-volume storage of oversized materials.

Electric Drawer Option: Automation That Boosts Efficiency & Safety

For warehouses aiming to further reduce manual labor and enhance safety, Herochu offers an electric drawer-type board shelf variant of the Heavy Duty Drawer Metal Structure Rack. This automated solution is equipped with a precision electric mechanical system that lets you retrieve or store boards with the push of a button—no more manual pulling or lifting of heavy drawers.

The automation delivers immediate benefits: it cuts down retrieval time by up to 50% compared to manual racks, reduces reliance on skilled operators, and eliminates human error in material placement. But efficiency isn’t the only priority—this electric model also includes a comprehensive safety system. Built-in sensors detect if personnel or obstacles are near the moving drawer, automatically pausing operation to prevent injuries. Emergency stop buttons and overload protection further ensure that both workers and materials remain safe during every use. For high-volume warehouses or facilities handling extra-heavy sheets (over 1 ton per unit), the electric drawer option isn’t just a luxury—it’s a necessity for maintaining consistent productivity and workplace safety.

Key Features of Herochu Heavy Duty Drawer Metal Structure Rack

What makes this heavy duty metal drawer type storage rack a standout choice for warehouses? Let’s break down its unrivaled features:

Heavy-Duty Metal Structure for Maximum Durability: Crafted from high-strength steel, the entire rack is built to withstand the rigors of industrial use. Each drawer and frame component undergoes rigorous testing to ensure long-term resistance to bending, warping, or corrosion—even in dusty or humid warehouse environments.

6 Standard Layers for Vertical Optimization: With 6 layers across all standard models, the rack maximizes vertical space without compromising stability. This design lets you store 2-3x more sheets than traditional 2-layer shelving, directly increasing your warehouse’s storage density.

Smooth-Rolling Drawers for Easy Access: Each drawer is equipped with high-quality bearings and a robust pulley system, ensuring smooth, friction-free rolling even when fully loaded. This means operators (or electric systems) can open/close drawers with minimal effort, reducing fatigue and speeding up retrieval.

Pallet Sleepers for Forklift Compatibility: The integrated sleepers on each drawer’s pallet create clear, stable points for forklift tines to engage. This eliminates the risk of forklifts damaging the rack or sheets, ensuring precise, safe handling every time.

CE, UE, ISO 9001 Certifications for Reliability: As a certified product, Herochu’s Heavy Duty Drawer Metal Structure Rack meets strict international standards for safety, quality, and performance. These certifications guarantee that the rack is free from manufacturing defects, can handle its rated load safely, and will perform consistently over time.

Anti-Scratch & Anti-Bend Protection: The drawer surfaces are treated with a smooth, durable coating that prevents scratches on sensitive sheet materials (like polished aluminum). Additionally, the reinforced drawer edges and base prevent bending under heavy loads, keeping your sheets in pristine condition.

Freestanding Installation for Flexibility: Unlike bolt-down racking systems, Herochu’s Heavy Duty Drawer Metal Structure Rack is freestanding. This means you can easily reposition it as your workshop layout changes, or expand your storage system by adding more racks without modifying your warehouse floor.

Technical Specifications: Built for Performance & Reliability

Herochu’s commitment to quality is reflected in every technical detail of the Heavy Duty Drawer Metal Structure Rack. Below are the key specifications that make this heavy duty metal drawer type storage rack a trusted choice for warehouses:

Parameter	Details
Brand Name	Herochu
Product Type	Heavy Duty Drawer Metal Structure Rack / Heavy Duty Metal Drawer Type Storage Racks
Standard Models	HC-B3015-63, HC-B4015-63, HC-B4020-65, HC-B6020-65
Compatible Plate Sizes	30001500mm, 40001500mm, 40002000mm, 60002000mm (customizable for larger/smaller sizes)
Number of Layers	6 (standard; customizable to 4-8 layers)
Material	High-strength steel (frame + drawers)
Surface Treatment	Powder-coated (anti-rust, corrosion-resistant, scratch-proof)
Load Capacity	Up to 1.5 tons per drawer (varies by model; customizable for heavier loads)
Installation Type	Freestanding
Special Variant	Electric drawer-type (automated operation + safety system)
Certifications	CE, UE, ISO 9001
Customization Price	Starts from $3,660
Application	Storage of steel sheets, aluminum plates, flat products, large tools, and sheet-like materials

Who Benefits Most from Herochu’s Heavy Duty Metal Drawer Type Storage Racks?

This racking system is a perfect fit for any business that stores sheet metal, flat products, or large tools—especially those struggling with space constraints or slow retrieval. Key industries include:

Metal Fabrication Plants: For storing raw steel/aluminum sheets and 半成品 flat parts.

Automotive Manufacturing: For organizing large metal panels and body components.

Construction Material Suppliers: For managing plywood, drywall, and metal roofing sheets.

Aerospace & Defense: For safely storing precision metal plates and composite flat products.

HVAC & Plumbing Suppliers: For storing ductwork sheets and large plastic/metal panels.

Furniture Manufacturing: For handling wood panels, metal sheets, and glass panels.

No matter your industry, if you’re tired of wasting vertical space, dealing with damaged materials, or spending hours retrieving sheets, Herochu’s Heavy Duty Drawer Metal Structure Rack will transform your operations.

Choose Herochu: Your Partner for High-Performance Warehouse Storage

At Herochu, we don’t just sell storage racks—we deliver solutions that solve your unique challenges. Our Heavy Duty Drawer Metal Structure Rack is the result of years of research into warehouse inefficiencies, combining heavy-duty durability with smart design to help you work faster, safer, and more cost-effectively. With CE/UE/ISO 9001 certifications, customizable options starting from $3,660, and both manual and electric variants, it’s a flexible investment that grows with your business.

Say goodbye to cluttered floors, slow retrieval, and damaged materials. Upgrade to Herochu’s Heavy Duty Metal Drawer Type Storage Racks today and experience the difference a purpose-built storage system can make for your warehouse’s productivity and profitability.

FAQ

Here are some frequently asked questions about our sheet metal racks and pipe storage solutions. We hope you find them helpful!

Q1: Can I request a custom size or color?
Absolutely. We offer complimentary design services and deliver efficient, tailored solutions to meet your specific requirements.

Q2: Are you a manufacturer or a distributor?
We are a direct manufacturer with over 15 years of industry experience and expertise.

Q3: Is there a minimum order quantity?
No. We welcome orders of any size, starting from a single unit.

Q4: How can I get detailed product information?
Click the “Get a Quote” button to receive product images, detailed specifications, and videos. Our team is always ready to assist.

Q5: How do I provide my storage rack requirements?
Simply share the type, dimensions, and quantity of materials you plan to store, along with any other specific needs. We will develop a professional storage solution for you. Alternatively, leave your contact details for a personalized consultation.

Q6: Do you offer automated loading systems or robotic arms?
Yes. We provide loading robotic arms and integrated loading/unloading systems tailored to your laser cutting machine’s table size and material handling method (e.g., board rack, exchange platform, or material warehouse). Contact us with your details for a customized proposal.

Q7: Do you provide on-site installation and debugging?
Yes. Our technicians can travel to your facility for installation and debugging, ensuring successful operation. We have served clients globally, including in the USA, South Korea, Russia, Qatar, Mexico, South Africa, Egypt, and Lebanon.

Q8: How do you ensure product quality?
Our quality assurance includes:

A team of over 40 technical engineers for professional debugging and support.
A dedicated quality control department compliant with ISO9001 standards.
CE certification for all exports.
Rigorous load testing before shipment to ensure structural safety and reliability.

Q9: Where is your factory located?
Our modern 10,000-square-meter manufacturing facility is located in Jiyang Industrial Park, Jinan, Shandong, China.

Q10: How can I evaluate your company’s capabilities?
We offer virtual video factory tours and warmly welcome on-site visits.

Q11: What does your company specialize in?
Jinan Constant Storage Machinery Manufacturing Co., Ltd. is a high-tech enterprise specializing in the R&D, production, sales, installation, and service of intelligent storage solutions. Our product range includes sheet material warehouses, drawer-style shelves, cantilever racks, servo manipulators, gantry loaders, and fully automated handling systems. Supported by a skilled technical team and advanced equipment, we are committed to delivering high-performance storage products and solutions to customers worldwide.
