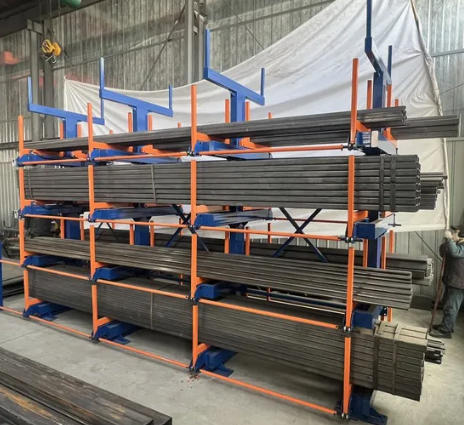

Heavy-Duty Crank-Out Cantilever Racking – The Ultimate Industrial Solution for Long Material Storage

In modern industrial environments—be it steel fabrication plants, pipe distribution centers, or metal service warehouses—efficient storage of long, heavy materials like bars, tubes, and structural sections is not just a convenience; it’s a necessity. Traditional pallet racking systems often fall short when handling irregularly shaped or extra-long inventory. That’s where Heavy-Duty Crank-Out Cantilever Racking emerges as the definitive answer.

Heavy-Duty Crank-Out Cantilever Racking – The Ultimate Industrial Solution for Long Material Storage

Keywords: Heavy duty Crank-Out Cantilever Racking, Pipe storage crank out cantilever racking system, Heavy duty pipe storage rack

Designed specifically for high-capacity, space-efficient storage of linear stock, this advanced racking system combines mechanical simplicity with industrial-grade durability. Unlike standard shelving, which requires wide aisles for forklift access, the Crank-Out Cantilever Rack allows materials to be handled directly by overhead cranes. This eliminates the need for excessive floor clearance, significantly reducing warehouse footprint while maximizing vertical storage potential.

Structural Integrity Meets Operational Efficiency

Each layer of the Heavy-Duty Crank-Out Cantilever Racking supports up to 5,000 kg (approximately 11,000 lbs), with total rack capacities reaching 27 tons in customized double-unit configurations. Constructed from high-strength carbon steel and featuring thickened columns and precision-welded joints, the system ensures long-term reliability even under continuous heavy use. The arms—available in lengths from 550mm to 800mm—are fully extendable, offering 100% access to stored materials without obstruction.

This full extension capability is critical for crane operators. Instead of maneuvering awkwardly around fixed shelves, they can lift pipes or bars directly from the extended arm, streamlining loading and unloading processes. Moreover, the inclusion of a manual lock mechanism prevents multiple levels from being extended simultaneously—a vital safety feature that minimizes workplace accidents.

Space Optimization Without Compromise

One of the standout advantages of this system is its space-saving design. Because materials are loaded and retrieved vertically via crane, aisle widths can be minimized. In facilities where every square foot counts, this translates into up to 40% more usable storage area compared to conventional racking. Additionally, the system supports up to 8 vertical levels, utilizing warehouse height efficiently—often up to 20 feet—without requiring complex automation.

Customization is another key strength. Whether you need a single-sided unit for wall-mounted installation or a double-sided configuration for central aisle placement, dimensions can be tailored to your exact requirements. Standard arm lengths, layer spacing (600mm or 800mm), and rack heights are all adjustable. Even color—typically offered in high-visibility orange or blue—can be specified to match facility safety standards.

Enhanced Safety and Organization

Poorly stored long materials pose significant risks: tripping hazards, falling loads, and manual handling injuries. The Crank-Out system mitigates these dangers by providing organized, categorized storage. Pipes of different diameters or lengths can be segregated by layer, and optional trays for offcuts or leftovers ensure nothing is lost or misplaced. This level of organization not only improves safety but also accelerates inventory audits and order fulfillment.

Furthermore, the sliding mechanism, guided by high-precision ball bearings, ensures smooth, low-effort operation. A single worker can extend or retract any level using a simple hand crank—no hydraulics, no electricity required (though electric drive options are available). This manual operability reduces dependency on powered equipment and lowers maintenance costs.

Ideal for Diverse Industries

From oil & gas pipe yards to construction rebar depots and aluminum extrusion warehouses, the Heavy-Duty Crank-Out Cantilever Racking system proves versatile. It accommodates materials ranging from 6-meter to 12-meter lengths, with custom solutions extending beyond. Whether storing steel pipes, PVC conduits, timber beams, or metal bars, this racking system delivers consistent performance.

In conclusion, if your operation involves frequent handling of long, heavy stock, investing in a Heavy-Duty Crank-Out Cantilever Racking system isn’t just smart—it’s transformative. It boosts productivity, enhances safety, optimizes space, and scales with your business. For industries where time, space, and safety are non-negotiable, this is the gold standard in long-material storage.

FAQ

Here are some frequently asked questions about our sheet metal racks and pipe storage solutions. We hope you find them helpful!

Q1: Can I request a custom size or color?
Absolutely. We offer complimentary design services and deliver efficient, tailored solutions to meet your specific requirements.

Q2: Are you a manufacturer or a distributor?
We are a direct manufacturer with over 15 years of industry experience and expertise.

Q3: Is there a minimum order quantity?
No. We welcome orders of any size, starting from a single unit.

Q4: How can I get detailed product information?
Click the “Get a Quote” button to receive product images, detailed specifications, and videos. Our team is always ready to assist.

Q5: How do I provide my storage rack requirements?
Simply share the type, dimensions, and quantity of materials you plan to store, along with any other specific needs. We will develop a professional storage solution for you. Alternatively, leave your contact details for a personalized consultation.

Q6: Do you offer automated loading systems or robotic arms?
Yes. We provide loading robotic arms and integrated loading/unloading systems tailored to your laser cutting machine’s table size and material handling method (e.g., board rack, exchange platform, or material warehouse). Contact us with your details for a customized proposal.

Q7: Do you provide on-site installation and debugging?
Yes. Our technicians can travel to your facility for installation and debugging, ensuring successful operation. We have served clients globally, including in the USA, South Korea, Russia, Qatar, Mexico, South Africa, Egypt, and Lebanon.

Q8: How do you ensure product quality?
Our quality assurance includes:

A team of over 40 technical engineers for professional debugging and support.
A dedicated quality control department compliant with ISO9001 standards.
CE certification for all exports.
Rigorous load testing before shipment to ensure structural safety and reliability.

Q9: Where is your factory located?
Our modern 10,000-square-meter manufacturing facility is located in Jiyang Industrial Park, Jinan, Shandong, China.

Q10: How can I evaluate your company’s capabilities?
We offer virtual video factory tours and warmly welcome on-site visits.

Q11: What does your company specialize in?
Jinan Constant Storage Machinery Manufacturing Co., Ltd. is a high-tech enterprise specializing in the R&D, production, sales, installation, and service of intelligent storage solutions. Our product range includes sheet material warehouses, drawer-style shelves, cantilever racks, servo manipulators, gantry loaders, and fully automated handling systems. Supported by a skilled technical team and advanced equipment, we are committed to delivering high-performance storage products and solutions to customers worldwide.
