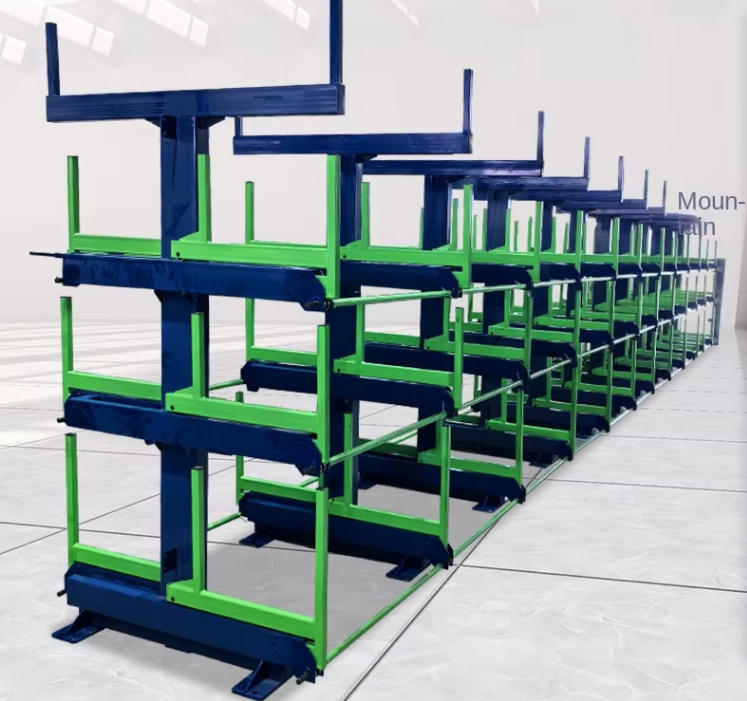

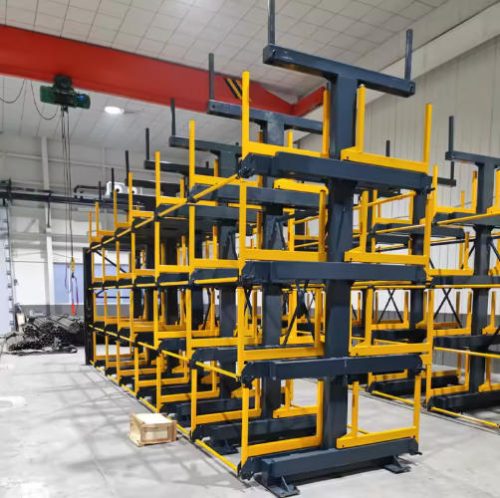

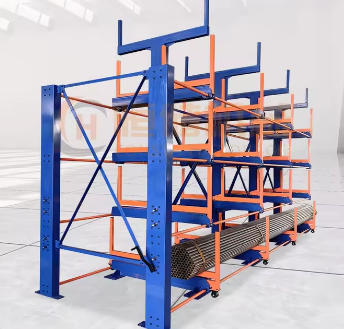

Heavy-Duty Crank Out Cantilever
Herochu’s crank-out cantilever systems address three critical challenges in industrial storage:
- Space Optimization: 100% extendable shelves (6m-12m) maximize vertical storage, reducing floor space usage by up to 60%
- Operational Safety: Pin-lock arms with 5,000kg/layer capacity prevent material slippage during retrieval
- Workflow Flexibility: Manual/electrical operation options adapt to diverse workshop environments
Heavy-Duty Crank Out Cantilever
Herochu Heavy-Duty Crank-Out Cantilever: Precision Storage for Long Materials
CE/UE/ISO 9001 Certified | Custom Configurations Starting at $3,660
The Smart Solution for Long Material Storage
Herochu’s crank-out cantilever systems address three critical challenges in industrial storage:
- Space Optimization: 100% extendable shelves (6m-12m) maximize vertical storage, reducing floor space usage by up to 60%
- Operational Safety: Pin-lock arms with 5,000kg/layer capacity prevent material slippage during retrieval
- Workflow Flexibility: Manual/electrical operation options adapt to diverse workshop environments
Engineered for Heavy-Duty Applications
Core Product Matrix
| Model | Max Load | Extended Length | Configuration | Key Use Case |
|---|---|---|---|---|
| HC-G6053D | 3t | 6m | 4+1 bilateral | Auto parts storage |
| HC-G9055S | 5t | 9m | 4+1 unilateral | Construction materials |
| HC-G12055D | 5t | 12m | 4+1 bilateral | Aerospace components |
Technical Advantages
-
Modular Expansion System
- Starter units for standalone operation
- Add-on units for scalable multi-rack systems
- No-bolt assembly with adjustable arm heights (1750mm standard)
-
Material-Specific Designs
- Heavy-Duty: Pin-lock system for bar stock/sheet metal (forklift compatible)
- Medium-Duty: Manual handling of pipe/lumber
- Light-Duty: Bolt-on arms for plastic conduit
-
Roll-Out Innovation
- Electrically driven options for high-throughput facilities
- 100% extended arm accessibility
- Categorization trays for leftovers management
Why Manufacturing Facilities Choose Herochu
- Certified Durability: All components meet ISO 9001 quality standards
- Smart Space Utilization: 6435x3340mm footprint accommodates 12m materials vertically
- Future-Proof Design: Customizable layer heights/load capacities
Industry Applications
- Metal Fabrication: Seamless steel pipe storage
- Energy Sector: Wind turbine component organization
- Automotive: Long extrusion management
- Construction: Pre-cut lumber inventory
Implementation Benefits
✓ 40% faster material retrieval vs. ground storage
✓ 30% increased warehouse capacity
✓ 15% reduction in workplace accidents
✓ 5-year structural warranty
Contact us today for a customized storage audit and 3D layout simulation.
FAQ
Here are some frequently asked questions about our sheet metal racks and pipe storage solutions. We hope you find them helpful!
Q1: Can I request a custom size or color?
Absolutely. We offer complimentary design services and deliver efficient, tailored solutions to meet your specific requirements.
Q2: Are you a manufacturer or a distributor?
We are a direct manufacturer with over 15 years of industry experience and expertise.
Q3: Is there a minimum order quantity?
No. We welcome orders of any size, starting from a single unit.
Q4: How can I get detailed product information?
Click the “Get a Quote” button to receive product images, detailed specifications, and videos. Our team is always ready to assist.
Q5: How do I provide my storage rack requirements?
Simply share the type, dimensions, and quantity of materials you plan to store, along with any other specific needs. We will develop a professional storage solution for you. Alternatively, leave your contact details for a personalized consultation.
Q6: Do you offer automated loading systems or robotic arms?
Yes. We provide loading robotic arms and integrated loading/unloading systems tailored to your laser cutting machine’s table size and material handling method (e.g., board rack, exchange platform, or material warehouse). Contact us with your details for a customized proposal.
Q7: Do you provide on-site installation and debugging?
Yes. Our technicians can travel to your facility for installation and debugging, ensuring successful operation. We have served clients globally, including in the USA, South Korea, Russia, Qatar, Mexico, South Africa, Egypt, and Lebanon.
Q8: How do you ensure product quality?
Our quality assurance includes:
A team of over 40 technical engineers for professional debugging and support.
A dedicated quality control department compliant with ISO9001 standards.
CE certification for all exports.
Rigorous load testing before shipment to ensure structural safety and reliability.
Q9: Where is your factory located?
Our modern 10,000-square-meter manufacturing facility is located in Jiyang Industrial Park, Jinan, Shandong, China.
Q10: How can I evaluate your company’s capabilities?
We offer virtual video factory tours and warmly welcome on-site visits.
Q11: What does your company specialize in?
Jinan Constant Storage Machinery Manufacturing Co., Ltd. is a high-tech enterprise specializing in the R&D, production, sales, installation, and service of intelligent storage solutions. Our product range includes sheet material warehouses, drawer-style shelves, cantilever racks, servo manipulators, gantry loaders, and fully automated handling systems. Supported by a skilled technical team and advanced equipment, we are committed to delivering high-performance storage products and solutions to customers worldwide.
Customer visit
Herochu has always been adhering to the market-centric approach to meet customer requirements to the maximum extent, and the business philosophy of “creating brands with heart and gaining reputation with sincerity”. It provides customers with high-quality products and services with rigorous military quality, professionalism, and excellence, and has won unanimous praise in the Chinese aerospace, Chinese weapons, Chinese railways, automobile manufacturing, engineering machinery, non-ferrous metal titanium alloy and other industries.
