Heavy Duty Cantilever Rack for Long Pipe Storage – Maximize Warehouse Efficiency with 6-Level Adjustable Steel Racking System

Heavy Duty Steel Pipe Rack Design: 700kg Capacity & Cantilever Shelves Solutions

Heavy Duty Cantilever Rack For Long Pipe Storage: 700kg per Level Capacity & Smart Designs

Heavy Duty Cantilever Rack for Long Pipe Storage – Maximize Warehouse Efficiency with 6-Level Adjustable Steel Racking System

In modern industrial logistics, storing long, heavy, and irregularly shaped materials like steel pipes, aluminum bars, or sheet metal presents a unique challenge. Traditional pallet racking systems often fall short due to limited arm reach, poor load distribution, and inefficient use of vertical space. Enter the Heavy Duty Cantilever Rack for Long Pipe Storage—a purpose-built, high-capacity storage solution engineered to meet the rigorous demands of metal fabrication plants, construction supply yards, and mechanical workshops.

Heavy Duty Cantilever Rack for Long Pipe Storage – Maximize Warehouse Efficiency with 6-Level Adjustable Steel Racking System

This 6-level cantilever structure stands over 2.5 meters tall per level (with total system height exceeding 6 meters) and features arms precisely designed to support up to 700 kg per level, with reinforced models capable of handling up to 8 metric tons per layer. Constructed from Q235 carbon steel and finished with epoxy electrostatic powder coating, the rack resists corrosion, scratches, and static buildup—critical for environments where safety and material integrity are non-negotiable.

What sets this system apart is its adjustable arm configuration. Arms can be mounted at 100mm to 150mm vertical increments, allowing operators to customize spacing based on pipe diameter or bar length. Whether you’re storing 2-inch conduits or 12-meter structural beams, the flexibility ensures optimal load balance and prevents sagging—a common issue in poorly designed pipe racking systems.

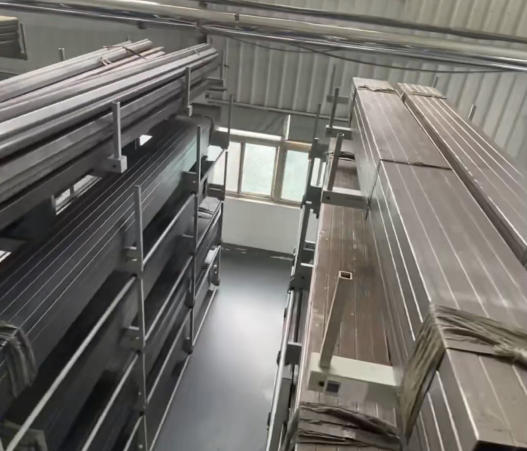

The double-sided layout maximizes aisle efficiency. Unlike single-sided racks that require dedicated access lanes on both sides, this dual-facing design allows one central aisle to serve two storage rows, effectively doubling storage density without expanding floor footprint. For facilities operating in urban areas with limited real estate, this translates directly into cost savings and operational scalability.

Installation is straightforward thanks to bolt-together assembly—no welding required. Each upright includes large footplates that distribute weight evenly across concrete floors, eliminating the risk of tilting under heavy loads. Safety is further enhanced with pin-lock mechanisms that secure arms in place and end stops that prevent pipes from rolling off during retrieval.

Industries such as HVAC, plumbing supply, and steel distribution rely on this system daily. A typical warehouse using traditional racking might store 200 bundles of pipe per 1,000 sq ft. With this adjustable cantilever racking, that number jumps to 500–600 bundles—a 150% increase in throughput capacity.

Moreover, compatibility with standard forklifts and overhead cranes means no need for specialized equipment. Operators can load or unload any level quickly, reducing labor time and minimizing handling errors. For businesses seeking CE/ISO-certified, scalable, and future-proof storage, this heavy-duty cantilever rack isn’t just an option—it’s a strategic asset.

FAQ

Here are some frequently asked questions about our sheet metal racks and pipe storage solutions. We hope you find them helpful!

Q1: Can I request a custom size or color?
Absolutely. We offer complimentary design services and deliver efficient, tailored solutions to meet your specific requirements.

Q2: Are you a manufacturer or a distributor?
We are a direct manufacturer with over 15 years of industry experience and expertise.

Q3: Is there a minimum order quantity?
No. We welcome orders of any size, starting from a single unit.

Q4: How can I get detailed product information?
Click the “Get a Quote” button to receive product images, detailed specifications, and videos. Our team is always ready to assist.

Q5: How do I provide my storage rack requirements?
Simply share the type, dimensions, and quantity of materials you plan to store, along with any other specific needs. We will develop a professional storage solution for you. Alternatively, leave your contact details for a personalized consultation.

Q6: Do you offer automated loading systems or robotic arms?
Yes. We provide loading robotic arms and integrated loading/unloading systems tailored to your laser cutting machine’s table size and material handling method (e.g., board rack, exchange platform, or material warehouse). Contact us with your details for a customized proposal.

Q7: Do you provide on-site installation and debugging?
Yes. Our technicians can travel to your facility for installation and debugging, ensuring successful operation. We have served clients globally, including in the USA, South Korea, Russia, Qatar, Mexico, South Africa, Egypt, and Lebanon.

Q8: How do you ensure product quality?
Our quality assurance includes:

A team of over 40 technical engineers for professional debugging and support.
A dedicated quality control department compliant with ISO9001 standards.
CE certification for all exports.
Rigorous load testing before shipment to ensure structural safety and reliability.

Q9: Where is your factory located?
Our modern 10,000-square-meter manufacturing facility is located in Jiyang Industrial Park, Jinan, Shandong, China.

Q10: How can I evaluate your company’s capabilities?
We offer virtual video factory tours and warmly welcome on-site visits.

Q11: What does your company specialize in?
Jinan Constant Storage Machinery Manufacturing Co., Ltd. is a high-tech enterprise specializing in the R&D, production, sales, installation, and service of intelligent storage solutions. Our product range includes sheet material warehouses, drawer-style shelves, cantilever racks, servo manipulators, gantry loaders, and fully automated handling systems. Supported by a skilled technical team and advanced equipment, we are committed to delivering high-performance storage products and solutions to customers worldwide.

Customer visit

Herochu has always been adhering to the market-centric approach to meet customer requirements to the maximum extent, and the business philosophy of “creating brands with heart and gaining reputation with sincerity”. It provides customers with high-quality products and services with rigorous military quality, professionalism, and excellence, and has won unanimous praise in the Chinese aerospace, Chinese weapons, Chinese railways, automobile manufacturing, engineering machinery, non-ferrous metal titanium alloy and other industries.
