Heavy Duty Cantilever Pipe Rack Systems for Industrial Storage

In the realm of industrial warehousing and manufacturing, the efficient storage of long, bulky materials presents a unique set of challenges. Unlike standard palletized goods, materials such as steel pipes, structural tubing, bar stock, and lengthy profiles require specialized racking solutions that prioritize accessibility, safety, and structural integrity. Enter the Heavy Duty Cantilever Pipe Rack, a storage system specifically engineered to handle the complexities of long-span storage. Among the various manufacturers providing these solutions, Herochu has emerged as a notable provider, offering robust systems designed to transform chaotic floor storage into organized, high-capacity vertical inventory.

Category Heavy Duty Cantilever Racking Systems Tag Heavy Duty Cantilever Pipe Rack Systems for Industrial Storage

Heavy Duty Cantilever Pipe Rack Systems for Industrial Storage

The Critical Need for Specialized Long-Span Storage

Traditional shelving units are ill-equipped to handle the dimensions and weight of industrial piping and tubing. The presence of vertical front columns in standard pallet racking often obstructs the loading and unloading process, creating bottlenecks and safety hazards when maneuvering long items with overhead cranes or forklifts. A Long Span Cantilever Storage Rack eliminates these obstructions by utilizing a column-free front design. This architecture allows for the unimpeded horizontal placement of materials, significantly reducing the time required for material handling operations.

The Industrial Pipe Storage Cantilever System provided by Herochu is constructed from high-grade steel, ensuring durability under extreme loads. With a load capacity reaching up to 5 tons per layer on each side, these racks are not merely storage units; they are foundational infrastructure for heavy industry. Whether storing raw steel billets or finished galvanized pipes, the structural reliability of the racking system is paramount to preventing workplace accidents and product damage.

Engineering Excellence: The Telescopic Advantage

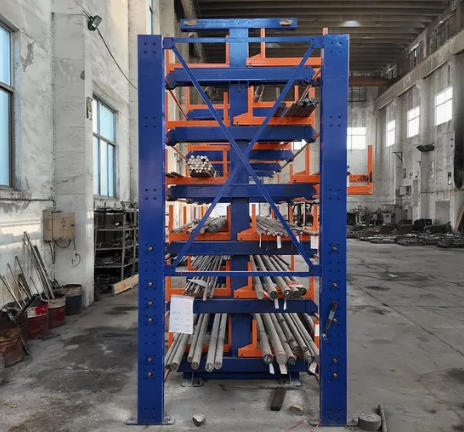

While standard cantilever racks are effective, the Adjustable Telescopic Cantilever Rack represents a significant technological leap forward in storage density. The Herochu Telescopic Cantilever Racking system introduces a dynamic element to static storage. The core of this system lies in its ability to extend and retract.

The structure is composed of robust column pieces interconnected by stabilizing rods, forming a rigid backbone. Attached to these columns are fixed arms and movable arms. Through a sophisticated transmission mechanism—often involving a sprocket chain driving a transmission rod which converts to a gear rack transmission—the movable arms can extend outward beyond the footprint of the column.

This Telescopic Boom Pipe Storage Rack functionality offers a dual benefit. Firstly, it allows for deep storage capabilities where materials can be stored further back, maximizing the depth of the rack. Secondly, and perhaps more importantly, it facilitates easier retrieval. By extending the load towards the aisle, operators can access materials without needing to reach deep into the rack structure, thereby minimizing the risk of crane collisions with the racking uprights.

Customization and Structural Integrity

One size rarely fits all in industrial applications. Herochu understands this, offering a Steel Pipe Cantilever Rack with Adjustable Arms that can be tailored to specific inventory profiles. The system is available in various configurations, including 3-layer, 4-layer, and 5-layer setups. The length of these layers is equally flexible, with standard options spanning 6 meters, 9 meters, and 12 meters. This modularity ensures that whether a facility is storing 4-meter PVC pipes or 12-meter steel girders, the racking system adapts to the material, not the other way around.

The surface treatment of these racks is another critical factor in their longevity. Herochu utilizes high-quality powder coating, which serves a dual purpose: corrosion resistance and safety identification. The racks can be finished in customized colors, allowing facility managers to color-code different zones or simply match the company’s branding. This coating protects the underlying steel from the environmental wear and tear common in manufacturing plants, such as humidity, dust, and incidental impacts.

Operational Efficiency and Safety

The implementation of a Heavy Duty Telescopic Tube Rack goes beyond simple storage; it optimizes the entire logistics flow within a facility. By moving materials from the floor to a vertical Heavy Duty Cantilever Rack for Tubing, companies can reclaim valuable square footage. This vertical utilization, often referred to as three-dimensional storage, converts unused air space into revenue-generating storage capacity.

Furthermore, the system integrates seamlessly with material handling equipment. The design accommodates the use of overhead cranes and forklifts, allowing for rapid loading and unloading cycles. For facilities without existing crane coverage, Herochu also provides supporting crane systems and profile transfer vehicles. These transfer vehicles are essential for line-side storage, keeping materials elevated and accessible, which significantly reduces the physical strain on workers and eliminates the need to lift heavy materials directly from the ground.

Conclusion

In summary, the Heavy Duty Cantilever Pipe Rack is an indispensable asset for modern industrial storage. Herochu’s telescopic cantilever solutions combine heavy-duty load-bearing capabilities with the flexibility of adjustable, extendable arms. By investing in such a system, manufacturers and distributors can achieve a safer, more organized, and significantly more efficient warehouse environment, capable of handling the rigorous demands of long material storage.

FAQ

Here are some frequently asked questions about our sheet metal racks and pipe storage solutions. We hope you find them helpful!

Q1: Can I request a custom size or color?
Absolutely. We offer complimentary design services and deliver efficient, tailored solutions to meet your specific requirements.

Q2: Are you a manufacturer or a distributor?
We are a direct manufacturer with over 15 years of industry experience and expertise.

Q3: Is there a minimum order quantity?
No. We welcome orders of any size, starting from a single unit.

Q4: How can I get detailed product information?
Click the “Get a Quote” button to receive product images, detailed specifications, and videos. Our team is always ready to assist.

Q5: How do I provide my storage rack requirements?
Simply share the type, dimensions, and quantity of materials you plan to store, along with any other specific needs. We will develop a professional storage solution for you. Alternatively, leave your contact details for a personalized consultation.

Q6: Do you offer automated loading systems or robotic arms?
Yes. We provide loading robotic arms and integrated loading/unloading systems tailored to your laser cutting machine’s table size and material handling method (e.g., board rack, exchange platform, or material warehouse). Contact us with your details for a customized proposal.

Q7: Do you provide on-site installation and debugging?
Yes. Our technicians can travel to your facility for installation and debugging, ensuring successful operation. We have served clients globally, including in the USA, South Korea, Russia, Qatar, Mexico, South Africa, Egypt, and Lebanon.

Q8: How do you ensure product quality?
Our quality assurance includes:

A team of over 40 technical engineers for professional debugging and support.
A dedicated quality control department compliant with ISO9001 standards.
CE certification for all exports.
Rigorous load testing before shipment to ensure structural safety and reliability.

Q9: Where is your factory located?
Our modern 10,000-square-meter manufacturing facility is located in Jiyang Industrial Park, Jinan, Shandong, China.

Q10: How can I evaluate your company’s capabilities?
We offer virtual video factory tours and warmly welcome on-site visits.

Q11: What does your company specialize in?
Jinan Constant Storage Machinery Manufacturing Co., Ltd. is a high-tech enterprise specializing in the R&D, production, sales, installation, and service of intelligent storage solutions. Our product range includes sheet material warehouses, drawer-style shelves, cantilever racks, servo manipulators, gantry loaders, and fully automated handling systems. Supported by a skilled technical team and advanced equipment, we are committed to delivering high-performance storage products and solutions to customers worldwide.
