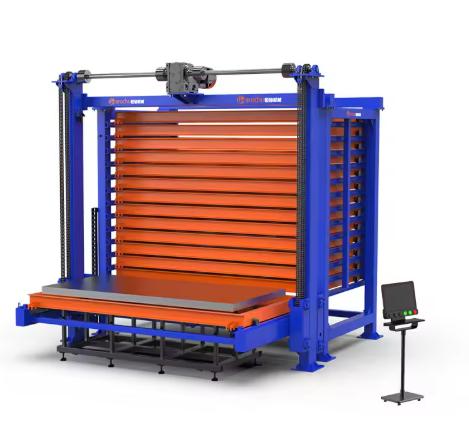

Heavy-Duty Automatic Warehouse Plate Storage System for 12-Meter Steel Plates

In the world of heavy fabrication, structural steel, and shipbuilding, the materials are large, the weights are significant, and the handling challenges are immense. Standard forklifts struggle with the leverage of a 12-meter steel plate. Overhead cranes, while necessary, are often tied up in production and cannot dedicate time to fetching every single piece of raw material. For these demanding environments, the solution lies in specialized automation. A Heavy-Duty Automatic Warehouse Plate Storage System is specifically engineered to take the brute force out of handling heavy plates and replace it with precision, safety, and efficiency.

These systems are the workhorses of the heavy industrial storage world. Built with reinforced frames, high-capacity chain drives, and robust linear guides, they are designed to operate reliably under maximum loads for decades. They take the most challenging aspect of heavy plate handling—the retrieval and transport of long, heavy materials—and make it a simple, one-button operation. By doing so, they free up overhead cranes for production tasks and protect workers from the dangers associated with maneuvering unwieldy loads.

Engineered for Extreme Loads and Lengths

The defining characteristic of a Heavy-Duty Automatic Warehouse Plate Storage System is its structural capacity. While light-duty systems might top out at 2 or 3 tons, these industrial-grade solutions begin where others end. They are designed to support loads of up to 8,000 kg (8 tons) per shelf or bin.

Achieving this capacity requires an engineering philosophy that prioritizes rigidity. The support beams are deeper, the column profiles are wider, and the welding is more extensive. The materials used are typically high-grade structural steel, often equivalent to Q235B or better, chosen for its predictable yield strength and durability. The system must also accommodate extreme lengths, with many units capable of storing plates up to 12 meters long. To prevent the ends of these long plates from sagging or deforming, the support structure within the shelf must be continuous and properly spaced. This ensures that even the thinnest of long plates maintains its flatness, which is critical for subsequent cutting or forming operations.

Transmission and Drive: The Power of Chain Drive

When dealing with multi-ton loads, the method of transmission cannot be left to chance. While belt drives are suitable for light applications, a Heavy-Duty Automatic Warehouse Plate Storage System relies on the proven strength of chain drive technology. Chains are inherently strong, durable, and resistant to the shock loads that can occur during material handling.

In these systems, chains are used for both the vertical lifting mechanism and the horizontal movement of the extraction carriage. The positive engagement of the chain with its sprocket means there is no slippage, even under the heaviest loads. This provides precise positioning, ensuring that the carriage aligns perfectly with the selected storage bin every time. The chain drive is also easier to maintain in dirty environments compared to complex gearboxes; a simple lubrication schedule ensures years of reliable service.

Supporting the Unsupported: Options for Plate Handling

Heavy plates, particularly those approaching 12 meters in length, present a unique problem when they are extracted from the rack. Once the extraction fork pulls the plate out of its bin, the center of the plate is supported, but the long ends extend out unsupported. This can cause the plate to droop, creating a safety hazard and potentially bending the material.

To counteract this, high-end systems offer optional plate supports. These are auxiliary arms or roller stands that extend from the machine or the floor to cradle the full length of the plate during extraction and retrieval. By providing support along the entire length, these devices prevent deflection and ensure that the plate remains flat and stable. This attention to detail is what separates a premium storage system from a basic one, particularly for operations handling long, heavy-gauge materials where flatness is a quality requirement.

Integration with ERP and Production Planning

In a modern smart factory, data is as valuable as raw material. A Heavy-Duty Automatic Warehouse Plate Storage System should not be an island of automation. It must communicate with the rest of the business. These systems are designed to interface directly with ERP (Enterprise Resource Planning) and WMS (Warehouse Management System) networks.

When a nesting software program generates a cutting list for a structural beam project, the required material data is sent directly to the storage system. The system identifies the correct plates by grade, thickness, and size, retrieves them, and delivers them to the output station. This integration eliminates paperwork, reduces the risk of human error in material selection, and creates a seamless digital thread from the order book to the finished product. The result is a truly lights-out manufacturing capability where heavy materials flow automatically.

Safety Engineering for Heavy Loads

Safety is paramount when moving 8-ton loads. The engineering of these heavy-duty systems incorporates multiple redundancies to protect personnel and equipment. Sliding guide rail locks prevent the carriage from moving when it is not supposed to. Foot roll protection devices ensure the stability of the entire structure. Speed controls ensure that the vertical lifting speed of 9 meters per minute does not exceed safe parameters, preventing the load from swinging or bouncing.

By removing the need for a forklift to enter a narrow aisle to retrieve a heavy plate, the system eliminates the risk of column strikes and tip-overs. The operator controls the system from a safe distance via a touch screen, never standing in the line of fire of a moving load. This focus on engineered safety makes these systems a critical investment for companies looking to reduce their Total Recordable Incident Rate (TRIR).

Conclusion

For heavy fabricators, the choice is clear: continue wrestling with difficult manual handling, or invest in the efficiency and safety of automation. A Heavy-Duty Automatic Warehouse Plate Storage System is a strategic asset that directly addresses the core challenges of heavy plate logistics. By providing robust, reliable, and intelligent storage for the heaviest and longest materials, these systems ensure that production lines are fed efficiently and safely, maximizing the return on every square meter of factory space and every minute of operator time.
