Heavy-Duty Automated Rack for Sheet Metal Warehousing

When it comes to industrial warehousing, not all storage solutions are created equal. For manufacturers dealing with dense materials like steel plates, copper sheets, and heavy alloys, standard shelving is simply insufficient. The physical demands of these materials require a system built with sheer strength and precision. This is where the Heavy-Duty Automated Rack for Sheet Metal Warehousing distinguishes itself. Designed to handle immense weights and facilitate rapid movement, this system represents the pinnacle of structural engineering in the storage sector.

Category Automation Sheet Metal Material Warehouse Tag Heavy-Duty Automated Rack for Sheet Metal Warehousing

Heavy-Duty Automated Rack for Sheet Metal Warehousing

Defining “Heavy-Duty” in Automation

In the context of this automated rack, “heavy-duty” is not a marketing buzzword—it is a specification. We are discussing a system capable of supporting loads that would collapse standard racking. The configuration tables for these units often list single-layer loading capacities of 3 tons, 5 tons, and even up to 6 tons. To put this into perspective, a single drawer in this system can hold the equivalent weight of several mid-sized cars.

The Heavy-Duty Automated Rack achieves this through the use of high-grade structural steel and reinforced joining methods. The uprights and beams are calculated to resist deflection under load, ensuring that the vertical alignment remains perfect even when every drawer is fully stocked. This structural rigidity is crucial for the automated components; the robotic lifters and shuttles rely on precise tolerances to operate. If the rack were to warp or sway under weight, the automation would fail. Therefore, the “heavy-duty” nature of the rack is the foundation that makes the automation possible.

The Mechanics of Heavy Lifting

Moving tons of steel requires more than just a strong frame; it requires a sophisticated drive system. The automated rack utilizes powerful motors and high-tensile strength cables or chains to facilitate the vertical movement of the lifter.

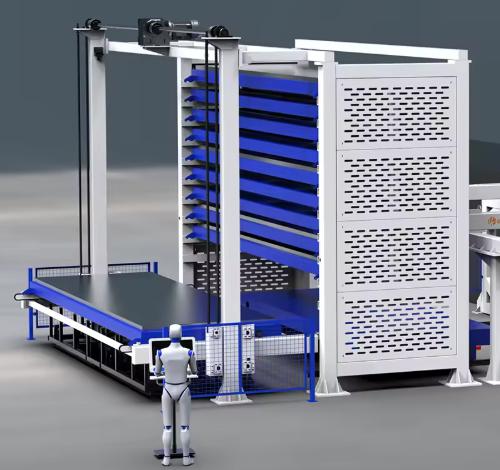

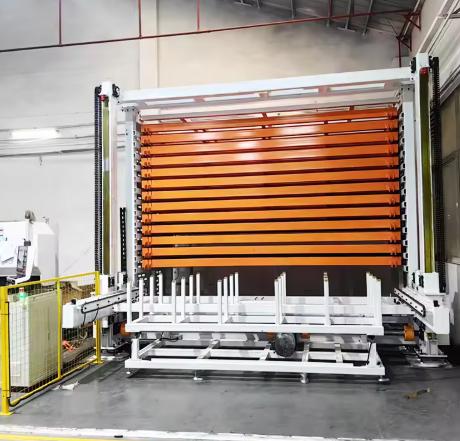

The lifter itself is a marvel of engineering. It acts as the muscle of the operation, traveling up and down the mast to access specific levels. When a retrieval command is issued, the lifter aligns with the target drawer. Using a specialized extraction mechanism—often a integrated pull-out type—it engages the drawer and retracts it onto the lifter platform. The system then lowers the massive load to the ground clearance height (often around 355mm) or raises it to the loading bay height (around 2195mm).

Crucially, this movement is controlled and dampened. Sudden jerks could cause the heavy steel plates to slide or the machine to tip. The Heavy-Duty Automated Rack employs variable frequency drives (VFDs) to manage acceleration and deceleration curves, ensuring that even a 6-ton load moves with fluidity and grace. This precision protects both the machinery and the material being stored.

Optimizing the Footprint for Heavy Loads

Traditionally, storing heavy plates required vast, single-story storage yards or low-level cantilever racks that consumed enormous amounts of floor space. This was inefficient because it utilized only the ground plane. The Heavy-Duty Automated Rack shifts this paradigm by stacking the weight vertically.

By utilizing a vertical storage configuration, the system allows a facility to store the same tonnage of material in perhaps one-fifth of the floor space. This “cubic storage” approach is vital for heavy industry. It allows the heavy loads to be concentrated in a specific, reinforced area of the factory floor, rather than distributing the weight across a wide, sprawling area that might require expensive floor reinforcement. The compact nature of the rack means that heavy materials can be stored closer to the production machines (like laser cutters or punch presses), reducing the distance heavy loads need to be transported during the manufacturing process.

Durability and Longevity

A heavy-duty automated rack is a significant capital investment, and as such, it is built to last. The components are treated to resist the harsh environments often found in metalworking shops, which can include oil mist, metal dust, and temperature fluctuations.

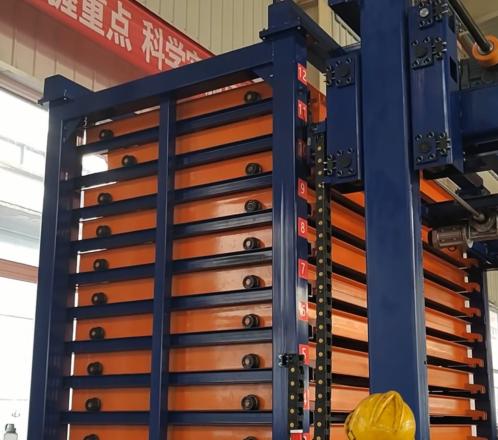

The drawers themselves are designed to be robust. They often feature reinforced lips and guide rails that prevent them from jamming, even if loaded unevenly. The “integrated pull-out” design ensures that the drawer remains supported by the frame throughout the extension process, preventing the cantilever effect that can damage lesser racks.

Furthermore, the system is designed for maintainability. While the structure is permanent, the moving parts—such as the lifter guides and drive chains—are accessible for inspection and replacement. This ensures that the Heavy-Duty Automated Rack remains operational for decades, providing a reliable backbone for the factory’s logistics.

Safety in High-Mass Storage

The safety implications of automating heavy loads cannot be overstated. In a manual environment, moving a 5-ton steel plate requires a crane, a skilled operator, and a exclusion zone to prevent injury. If the chain snaps or the load slips, the consequences are catastrophic.

With the Heavy-Duty Automated Rack, the heavy lifting is entirely removed from the human sphere. The machine handles the mass. Workers interact with the system only at the loading bay, where the heavy drawer is presented at a safe height. They can then use smaller, localized lifting aids (like vacuum lifters or jib cranes) to remove the sheets from the drawer, but the heavy transport from the rack to the bay is done autonomously. This separation of man and mass significantly lowers the insurance risk and creates a safer, more compliant working environment.

Conclusion

The Heavy-Duty Automated Rack for Sheet Metal Warehousing is the answer to the industrial challenge of storing massive weight in limited space. It combines the brute strength required to hold tons of steel with the finesse of modern automation. For any facility dealing with heavy plates, this system offers a pathway to higher density, improved safety, and streamlined operations, proving that when it comes to storage, strength matters just as much as intelligence.
