For the fabrication shop, tool room, or manufacturing cell that deals with flat materials, accessibility is everything. Digging through a vertical rack of heavy steel plates is not only inefficient but dangerous. It leads to damaged edges, scratched surfaces, and potential back or crush injuries. The solution lies in a specialized piece of equipment: the Hand-Cranked Metal Sheet Slide-in Shelving Unit for Storage Rack. This mechanical marvel brings the material to the operator, ensuring safety, preserving material quality, and optimizing space without the need for a full automation investment.

The Principle of Individual Access

The fundamental flaw in traditional sheet metal storage is contact. When plates are stacked horizontally or leaned vertically, they rub against each other. This friction causes surface scratches, dents, and deformation, ruining the cosmetic and structural integrity of the material. A Hand-Cranked Metal Sheet Slide-in Shelving Unit solves this problem by isolating each sheet.

In this system, each individual metal panel is independently placed flat on its own drawer-type pallet. Think of it as a heavy-duty filing cabinet for steel. By eliminating stacking, you eliminate the friction and pressure that lead to material damage. This preservation of surface quality is critical, especially for materials destined for laser cutting or visible finished products, where surface flaws can lead to scrap.

Effortless Mechanical Operation

The “hand-cranked” aspect of this unit is a testament to intelligent mechanical design. Moving a shelf loaded with several tons of steel might sound like a Herculean task, but the integration of geared mechanisms and roller bearings makes it surprisingly effortless.

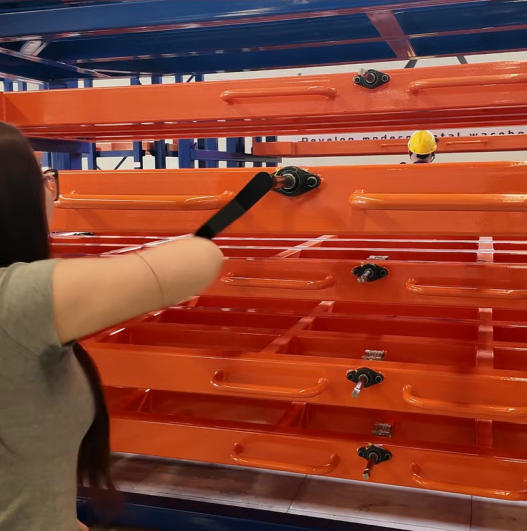

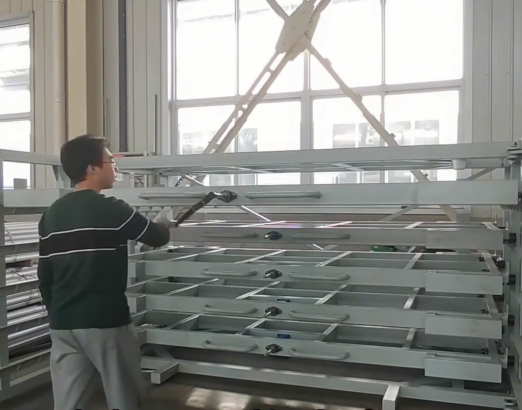

When an operator needs a specific sheet, they simply locate the correct drawer level and turn the hand crank. The mechanical advantage provided by the gearing allows a single person to quickly and accurately roll out the heavy drawer, fully extending it for complete access to the material. Once the desired task is complete—whether cutting, measuring, or retrieving—the drawer is cranked back into place.

This system is perfectly suitable for integration with overhead tools like hoists, magnets, or vacuum lifters. The operator can position the lifter over the fully exposed sheet, attach it, and lift it directly from the drawer without any awkward maneuvering. This synergy between manual mechanical advantage and material handling equipment creates a workflow that is both fast and ergonomically sound.

Customization for Every Workshop

No two workshops have the exact same material profile. That’s why the Hand-Cranked Metal Sheet Slide-in Shelving Unit for Storage Rack is designed for flexibility. The parameters can be tailored to the specific reality of your inventory.

• Sheet Size: Whether your standard stock is 3000*1500mm or you regularly handle jumbo plates of 6000*2000mm, the unit is built to match.

• Load Capacity: With standard per-layer load ratings of 3 to 6 tons, and the ability to customize up to 10 tons per layer, these units handle everything from thin gauge aluminum to thick armor plate.

• Drawer Configuration: Choose the number of drawers—from 2 to 10—based on your variety of materials. Fewer drawers for thicker, heavier plates; more drawers for thinner, varied stock.

• Safety Features: Each drawer is equipped with a lock-in/lock-out mechanism. This is a critical safety feature that prevents multiple drawers from being opened simultaneously, which could cause the entire unit to become top-heavy and tip over.

Complementing Modern Fabrication

A Hand-Cranked Metal Sheet Slide-in Shelving Unit is more than just storage; it is an extension of the production floor. By organizing steel inventory efficiently by size, type, and material, it reduces setup time for machinery. Operators spend less time searching for materials and more time cutting and fabricating.

These units are designed to complement high-value production machinery perfectly. Placed strategically near laser cutters, shears, and press brakes, they act as an immediate buffer of raw material. This close proximity streamlines the workflow, reducing the travel distance for overhead cranes and minimizing the time between material retrieval and the start of the cutting process. For the shop looking to enhance organization, protect valuable inventory, and empower its workforce with safe, accessible storage, the hand-cranked slide-out shelving unit is the ideal solution.
