Fully Automatic Warehouse Storage System with Gantry Loading Robot

Fully Automatic Warehouse Storage System Integrated with Gantry Loading Robot

In modern industrial manufacturing, the storage of long materials such as steel pipes, aluminum profiles, I-beams, and metal tubes represents one of the most persistent operational challenges. Facilities handling materials ranging from 6 meters to 12 meters in length have traditionally relied on conventional horizontal stacking methods or basic cantilever racks that require extensive manual intervention. These outdated approaches create a cascade of problems: material deformation due to improper support, safety hazards from manual handling of heavy loads, inefficient floor space utilization, and significant time losses during material retrieval operations.

Category Gantry Loading and Unloading Manipulator Tag Fully Automatic Warehouse Storage System Integrated with Gantry Loading Robot

Fully Automatic Warehouse Storage System Integrated with Gantry Loading Robot

The industrial landscape of 2026 demands smarter solutions. As manufacturing facilities face increasing pressure to optimize operational efficiency, reduce labor costs, and maintain precise inventory control, the limitations of traditional storage methods have become unacceptable bottlenecks. Manual handling of 5-ton bundles of steel beams not only poses serious safety risks to warehouse personnel but also introduces variability in material quality through scratches, dents, and bending that can render expensive profiles unsuitable for precision applications.

Enter the Automatic Vertical Cantilever Rack System – a sophisticated storage solution engineered specifically for the unique demands of long material management. This system represents a fundamental shift from reactive storage practices to proactive, intelligent material flow management. By combining heavy-duty structural engineering with advanced automation technology, facilities can now achieve storage densities previously impossible while eliminating the manual handling processes that have plagued the industry for decades.

Understanding the Core Architecture: More Than Just a Rack

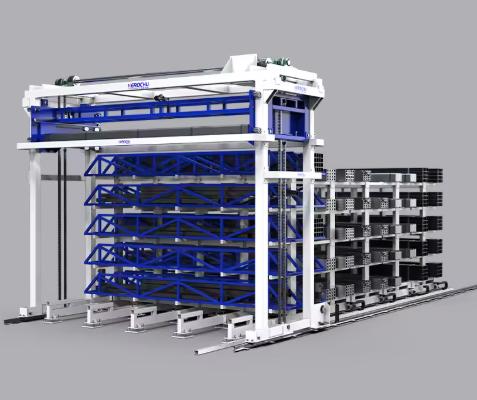

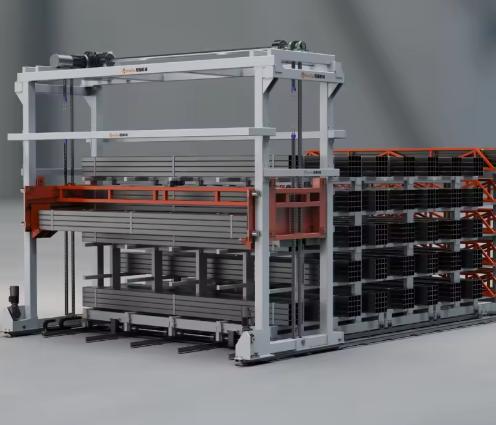

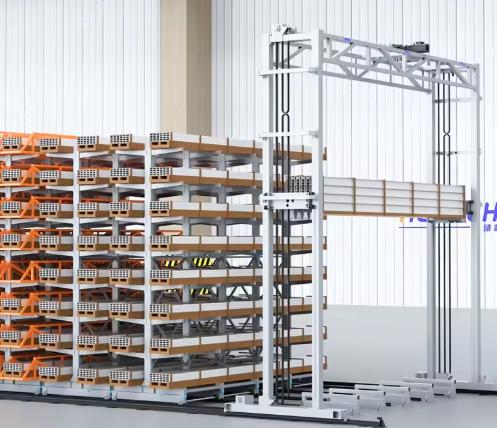

The Automatic Vertical Cantilever Rack System transcends the concept of traditional storage equipment. At its foundation lies a comprehensive system architecture designed around three critical components working in perfect synchronization. The Loading/Unloading Gantry System serves as the automated workhorse, traversing storage aisles with pinpoint accuracy to retrieve and place materials without human intervention. This gantry operates on precision guide rails that ensure smooth, vibration-free movement even when handling asymmetrical loads weighing several tons.

The High-Capacity Profile Material Racks form the backbone of the storage structure. Unlike standard cantilever racks with fixed configurations, these vertical storage structures are custom-engineered to accommodate specific facility dimensions, material mix, and throughput requirements. The system supports between 8 to 13+ layers, with each layer engineered to bear loads up to 5 tons. This modular approach allows facilities to maximize their vertical cube utilization, transforming previously wasted overhead space into productive storage capacity.

Material Frames, including specialized pallets and baskets, complete the triad by securely holding single items or bundled profiles within the rack structure. These frames incorporate adjustable support systems such as cradles and extendable arms that conform to various profile shapes and lengths, preventing the deformation and damage that commonly occurs with improper support. The integration of these three components creates a seamless material flow ecosystem where every element enhances the performance of the others.

Heavy-Duty Engineering Meets Precision Control

What distinguishes this automatic storage system from conventional solutions is its ability to reconcile two seemingly contradictory requirements: brute strength and delicate precision. The main structure employs high-grade industrial steel profiles engineered through finite element analysis to ensure optimal load distribution and structural integrity under maximum capacity conditions. Each layer undergoes rigorous testing to verify its 5-ton load-bearing capability, providing confidence when storing dense steel beams or large bundles of pipes.

Yet despite this formidable strength, the system operates with remarkable delicacy. The gantry’s chain drive transmission combined with linear guide rails enables controlled movements that prevent sudden jolts or vibrations. Vertical lifting speeds of 9 meters per minute and horizontal travel speeds of 12 meters per minute are carefully calibrated to balance operational efficiency with load stability. This calibration proves crucial when handling materials with shifting centers of gravity or irregular shapes that could become unstable during rapid acceleration or deceleration.

The optional profile support systems further enhance this precision capability. Adjustable arms extend to provide continuous support along the entire length of stored materials, eliminating the point-loading that causes bending in traditional rack systems. For particularly sensitive finished products or pre-machined profiles, these support mechanisms ensure that materials remain in pristine condition from storage through retrieval, eliminating costly quality rejections downstream in the production process.

Intelligent Operation: Where Automation Transforms Efficiency

The term “intelligent” in Intelligent Mobile Profile Automated Storage and Retrieval System describes genuine autonomous decision-making capability, not marketing exaggeration. Unlike traditional AS/RS systems that follow rigid, pre-programmed paths regardless of actual conditions, this system utilizes an array of advanced sensors and adaptive control algorithms to optimize movements in real-time. Weight sensors continuously monitor load distribution, proximity sensors detect obstacles or misaligned materials, and position encoders track gantry location with millimeter accuracy.

This intelligence manifests most visibly in the one-click automatic retrieval function that reduces material handling time by approximately 60% compared to manual operations. Warehouse operators simply input the material identification code or select from a visual inventory interface, and the system autonomously calculates the optimal retrieval path, positions the gantry, extends the support arms, extracts the material, and delivers it to the designated pickup station. This elimination of manual searching, positioning, and lifting translates directly into reduced labor costs and faster production cycle times.

The system’s adaptability extends beyond individual retrieval operations. Advanced algorithms analyze usage patterns to suggest optimal storage locations based on material turnover rates, grouping frequently accessed items in more accessible positions while relegating slower-moving stock to higher or deeper storage positions. This dynamic slotting capability continuously improves operational efficiency without requiring manual reorganization of the warehouse layout.

WMS Integration: Achieving Complete Inventory Visibility

Modern manufacturing operations demand more than physical storage efficiency – they require complete digital visibility and traceability. The Automatic Vertical Cantilever Rack System addresses this need through optional Warehouse Management System (WMS) integration that transforms physical inventory into real-time digital data. Every material entry and exit automatically updates inventory records, eliminating the discrepancies between physical stock and system records that plague manual tracking methods.

This integration enables standardized material management where inventory becomes visible, traceable, and countable at all times. Production planners can access accurate stock levels instantly, purchasing departments receive automatic alerts when materials reach reorder points, and quality control teams can trace specific batches throughout their storage history. The system maintains detailed logs of storage duration, handling events, and location history for each item, supporting both operational optimization and regulatory compliance requirements.

The digital transformation extends to analytics capabilities that provide insights impossible to obtain through manual observation. Managers can generate reports on storage utilization rates, retrieval frequency patterns, peak demand periods, and equipment performance metrics. These data-driven insights enable continuous improvement initiatives, capacity planning decisions, and justification for future automation investments based on quantifiable return on investment calculations.

Versatility Across Materials and Industries

One of the system’s most compelling advantages lies in its remarkable versatility. While engineered primarily for steel pipes and aluminum profiles, the adaptable design accommodates an extensive range of long materials including copper tubes, PVC extrusions, wooden beams, composite profiles, and custom-manufactured sections. The adjustable support arms accept various bundle configurations, from single delicate pieces to densely packed multi-item bundles weighing several tons.

This versatility makes the system valuable across diverse industries. Construction material distributors benefit from organized storage of varying beam lengths and profiles. Automotive manufacturers achieve efficient management of chassis components and structural elements. Aerospace suppliers maintain pristine condition of expensive titanium and aluminum extrusions. Furniture producers organize wood and metal framing materials with minimal damage. Each application leverages the same core technology while benefiting from customization options tailored to specific material characteristics and handling requirements.

The system’s flexibility extends to facility integration as well. Customizable rack quantities and configurations allow installation in existing warehouses without major structural modifications. Facilities with low ceiling heights can opt for fewer layers with greater horizontal density, while buildings with high cubic capacity can maximize vertical storage. The gantry system adapts to aisle widths and lengths specific to each installation, ensuring optimal performance regardless of building constraints.

Economic Impact: Calculating the True Return on Investment

Implementing an Automatic Vertical Cantilever Rack System requires capital investment, but the comprehensive economic benefits typically deliver payback periods ranging from 18 to 36 months depending on operation scale and current inefficiency levels. The most immediate savings come from labor reduction, as one automated system can replace multiple material handlers working across shifts. With material handling time reduced by 60%, facilities often redeploy workers to higher-value tasks rather than eliminating positions entirely, improving overall workforce productivity.

Space optimization generates substantial indirect savings by deferring or eliminating warehouse expansion projects. By utilizing vertical cube efficiency, many facilities increase storage capacity by 200-400% within existing footprints, avoiding the enormous costs of new construction or facility leasing. Additionally, reduced material damage directly improves profit margins by minimizing scrap rates and customer returns caused by storage-induced defects.

Long-term economic benefits include improved cash flow through better inventory turnover, reduced insurance premiums from enhanced safety records, and increased production throughput from eliminated material waiting times. The system’s durability and low maintenance requirements ensure consistent performance over 15-20 year lifespans, providing sustained value long after initial investment recovery. When evaluated holistically, the Automatic Vertical Cantilever Rack System transforms from a cost center into a strategic competitive advantage that strengthens overall business performance.

FAQ

Here are some frequently asked questions about our sheet metal racks and pipe storage solutions. We hope you find them helpful!

Q1: Can I request a custom size or color?
Absolutely. We offer complimentary design services and deliver efficient, tailored solutions to meet your specific requirements.

Q2: Are you a manufacturer or a distributor?
We are a direct manufacturer with over 15 years of industry experience and expertise.

Q3: Is there a minimum order quantity?
No. We welcome orders of any size, starting from a single unit.

Q4: How can I get detailed product information?
Click the “Get a Quote” button to receive product images, detailed specifications, and videos. Our team is always ready to assist.

Q5: How do I provide my storage rack requirements?
Simply share the type, dimensions, and quantity of materials you plan to store, along with any other specific needs. We will develop a professional storage solution for you. Alternatively, leave your contact details for a personalized consultation.

Q6: Do you offer automated loading systems or robotic arms?
Yes. We provide loading robotic arms and integrated loading/unloading systems tailored to your laser cutting machine’s table size and material handling method (e.g., board rack, exchange platform, or material warehouse). Contact us with your details for a customized proposal.

Q7: Do you provide on-site installation and debugging?
Yes. Our technicians can travel to your facility for installation and debugging, ensuring successful operation. We have served clients globally, including in the USA, South Korea, Russia, Qatar, Mexico, South Africa, Egypt, and Lebanon.

Q8: How do you ensure product quality?
Our quality assurance includes:

A team of over 40 technical engineers for professional debugging and support.
A dedicated quality control department compliant with ISO9001 standards.
CE certification for all exports.
Rigorous load testing before shipment to ensure structural safety and reliability.

Q9: Where is your factory located?
Our modern 10,000-square-meter manufacturing facility is located in Jiyang Industrial Park, Jinan, Shandong, China.

Q10: How can I evaluate your company’s capabilities?
We offer virtual video factory tours and warmly welcome on-site visits.

Q11: What does your company specialize in?
Jinan Constant Storage Machinery Manufacturing Co., Ltd. is a high-tech enterprise specializing in the R&D, production, sales, installation, and service of intelligent storage solutions. Our product range includes sheet material warehouses, drawer-style shelves, cantilever racks, servo manipulators, gantry loaders, and fully automated handling systems. Supported by a skilled technical team and advanced equipment, we are committed to delivering high-performance storage products and solutions to customers worldwide.
