Fully Automatic Sheet Material Handling Equipment: The Herochu Servo Swing Arm Manipulator for High-Efficiency Metalworking

Servo Swing Arm Handling Manipulator: The Heart of Fully Automatic Sheet Material Handling

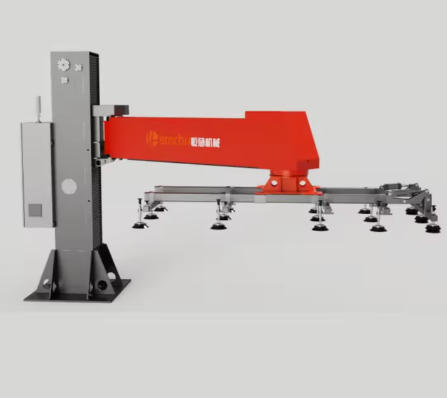

Revolutionize Your Metal Fabrication with a 1000kg-Capable Automated Handling System

Fully Automatic Sheet Material Handling Equipment: The Herochu Servo Swing Arm Manipulator for High-Efficiency Metalworking

In today’s fast-paced industrial landscape, the demand for automation in metal fabrication has never been higher. Companies are seeking reliable, cost-effective, and safe solutions to handle sheet metal without compromising productivity or worker safety. Enter the Herochu Fully Automatic Sheet Material Handling Equipment—a state-of-the-art Servo Swing Arm Handling Manipulator engineered specifically for modern metalworking environments.

Fully Automatic Sheet Material Handling Equipment: The Herochu Servo Swing Arm Manipulator for High-Efficiency Metalworking

This advanced robotic system is designed to automate the loading and unloading of sheet metal across a wide range of applications—from stainless steel kitchenware production to large-scale electrical cabinet manufacturing. With lifting capacities ranging from 300kg to 1000kg, the Herochu manipulator accommodates sheet sizes up to 4000x2000mm, making it one of the most versatile systems on the market.

Precision Meets Power

At the heart of the Herochu system lies a servo-driven swing arm, which ensures smooth, precise, and rapid movement during material transfer. Unlike traditional pneumatic or hydraulic arms, the servo motor provides unparalleled control over speed and positioning. This translates into faster cycle times, reduced wear on components, and minimal risk of damaging delicate sheet surfaces—a critical factor when handling polished or coated metals.

The manipulator features multiple high-performance suction cups (ranging from 15 to 18 units depending on model), with diameters from 150mm to 250mm, ensuring secure grip even on oily or uneven surfaces. Each cup is independently monitored, so if one fails, the system automatically compensates to maintain stability—enhancing both safety and reliability.

Safety by Design

Worker safety is non-negotiable in any industrial setting. That’s why the Herochu Servo Swing Arm comes equipped with dual-layer safety protocols: an emergency stop button that halts all motion instantly, and an automatic braking system that engages during power loss or unexpected stops. These features prevent uncontrolled arm movement, protecting both personnel and materials.

Additionally, the entire structure is built from high-grade steel and complies with CE, UKCA, and ISO 9001 standards, guaranteeing performance under demanding conditions while meeting global regulatory requirements.

Space-Saving & Modular Architecture

One of the standout advantages of this system is its modular design. Components can be easily assembled or disassembled, allowing for flexible deployment in workshops with limited floor space. Whether you’re retrofitting an existing production line or building a new facility, the Herochu manipulator adapts seamlessly—without requiring major structural changes.

Its compact footprint doesn’t compromise functionality; instead, it optimizes workflow by integrating directly with laser cutters, shearing machines, and press brakes. This plug-and-play compatibility reduces setup time and eliminates bottlenecks in material flow.

Economic Impact: Lower Costs, Higher Output

By automating repetitive tasks, the Herochu system significantly reduces labor dependency. A single operator can manage multiple stations, freeing skilled workers for higher-value activities. Moreover, automated handling minimizes human error and surface scratches—common issues in manual sheet transfer—which directly lowers scrap rates and rework costs.

With a starting price of just $ 19,300, and options for OEM/ODM customization, this equipment delivers exceptional ROI. Factories report throughput increases of up to 40% within the first three months of installation.

Ideal Applications Across Industries

Kitchenware Manufacturing: Efficiently handles stainless steel sheets for sinks, countertops, and appliances.
Electrical Enclosures: Automates feeding of large panels into CNC punching and bending cells.
Automotive & Construction: Processes structural sheet components with consistent precision.
Custom Fabrication Shops: Scales effortlessly from small batches to high-volume runs.

In conclusion, the Herochu Fully Automatic Sheet Material Handling Equipment isn’t just another robot—it’s a strategic investment in efficiency, safety, and future-proofing your operations. As industries worldwide accelerate toward smart manufacturing, this Servo Swing Arm Handling Manipulator stands out as a robust, scalable, and intelligent solution for the metalworking sector.

FAQ

Here are some frequently asked questions about our sheet metal racks and pipe storage solutions. We hope you find them helpful!

Q1: Can I request a custom size or color?
Absolutely. We offer complimentary design services and deliver efficient, tailored solutions to meet your specific requirements.

Q2: Are you a manufacturer or a distributor?
We are a direct manufacturer with over 15 years of industry experience and expertise.

Q3: Is there a minimum order quantity?
No. We welcome orders of any size, starting from a single unit.

Q4: How can I get detailed product information?
Click the “Get a Quote” button to receive product images, detailed specifications, and videos. Our team is always ready to assist.

Q5: How do I provide my storage rack requirements?
Simply share the type, dimensions, and quantity of materials you plan to store, along with any other specific needs. We will develop a professional storage solution for you. Alternatively, leave your contact details for a personalized consultation.

Q6: Do you offer automated loading systems or robotic arms?
Yes. We provide loading robotic arms and integrated loading/unloading systems tailored to your laser cutting machine’s table size and material handling method (e.g., board rack, exchange platform, or material warehouse). Contact us with your details for a customized proposal.

Q7: Do you provide on-site installation and debugging?
Yes. Our technicians can travel to your facility for installation and debugging, ensuring successful operation. We have served clients globally, including in the USA, South Korea, Russia, Qatar, Mexico, South Africa, Egypt, and Lebanon.

Q8: How do you ensure product quality?
Our quality assurance includes:

A team of over 40 technical engineers for professional debugging and support.
A dedicated quality control department compliant with ISO9001 standards.
CE certification for all exports.
Rigorous load testing before shipment to ensure structural safety and reliability.

Q9: Where is your factory located?
Our modern 10,000-square-meter manufacturing facility is located in Jiyang Industrial Park, Jinan, Shandong, China.

Q10: How can I evaluate your company’s capabilities?
We offer virtual video factory tours and warmly welcome on-site visits.

Q11: What does your company specialize in?
Jinan Constant Storage Machinery Manufacturing Co., Ltd. is a high-tech enterprise specializing in the R&D, production, sales, installation, and service of intelligent storage solutions. Our product range includes sheet material warehouses, drawer-style shelves, cantilever racks, servo manipulators, gantry loaders, and fully automated handling systems. Supported by a skilled technical team and advanced equipment, we are committed to delivering high-performance storage products and solutions to customers worldwide.

Customer visit

Herochu has always been adhering to the market-centric approach to meet customer requirements to the maximum extent, and the business philosophy of “creating brands with heart and gaining reputation with sincerity”. It provides customers with high-quality products and services with rigorous military quality, professionalism, and excellence, and has won unanimous praise in the Chinese aerospace, Chinese weapons, Chinese railways, automobile manufacturing, engineering machinery, non-ferrous metal titanium alloy and other industries.
