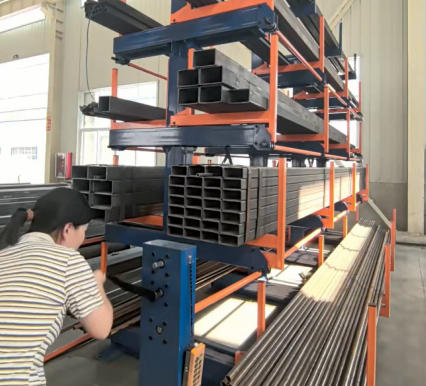

Electric Telescopic Cantilever Rack 5-Layer Heavy Duty Smart Control Storage System for Long Pipes, Steel Bars & Building Materials

Storing long, heavy building materials has long been a logistical headache—until now. The Electric Telescopic Cantilever Rack represents a paradigm shift in industrial storage, merging mechanical strength with digital intelligence to create a 5-layer, smart-controlled, heavy-duty storage ecosystem tailored for pipes, rebar, lumber, and structural metals.

This system is not merely a rack; it’s an integrated storage platform powered by electric telescopic arms that extend and retract at the push of a button or via centralized warehouse management software (WMS). Each of the five layers operates independently, allowing selective access without disturbing adjacent loads. With PLC frequency control, movement is smooth, precise, and energy-efficient—ideal for 24/7 operations in demanding environments like steel mills or precast concrete plants.

Electric Telescopic Cantilever Rack 5-Layer Heavy Duty Smart Control Storage System for Long Pipes, Steel Bars & Building Materials

Designed for maximum payload resilience, each layer supports up to 5–6 tons, with total rack capacities exceeding 25 tons in standard configurations. The HC-G12055D model, for instance, spans 12 meters in length while maintaining structural rigidity—thanks to reinforced base frames, diagonal bracing, and high-yield steel (S355 grade or higher). Every weld and joint undergoes non-destructive testing, ensuring compliance with EN 15512 and FEM 10.2.02 standards.

What truly sets this system apart is its space-saving intelligence. Traditional cantilever racks require wide aisles for forklift maneuvering—often 3.5 meters or more. The electric telescopic version reduces this to under 2.5 meters because arms only extend when needed. In a typical 1,000 sqm warehouse, this translates to an additional 200–300 sqm of usable storage area—enough to store hundreds more bundles of steel or piping.

Customization is built into the DNA of the product. Clients can specify:

Number of layers (3 to 7+)
Arm length (550–1,200mm)
Color coding for material segregation
Integration with RFID or barcode tracking
Manual override for power outages

Safety is paramount. Overload sensors prevent accidental overloading, while emergency stop buttons and anti-collision edges protect both equipment and personnel. The powder-coated finish resists chipping, UV degradation, and chemical exposure—critical for outdoor yards or coastal facilities.

Real-world applications abound. A European pipe distributor reduced loading times by 70% after installing this system, while a U.S.-based construction supplier cut forklift fuel costs by $ 18,000 annually due to narrower aisles and fewer trips. Another client in the Middle East uses it to store 9-meter aluminum window frames vertically, preventing warping and surface damage.

For companies investing in Industry 4.0, this rack serves as a foundational node in a larger automated storage and retrieval system (AS/RS). It communicates seamlessly with ERP platforms, enabling predictive restocking, cycle counting, and digital twin simulations for layout optimization.

In conclusion, the Electric Telescopic Cantilever Rack 5 Layer Heavy Duty Smart Control Storage System is more than hardware—it’s a productivity multiplier. By fusing electromechanical precision with industrial-grade durability, it solves the century-old challenge of long-item storage with 21st-century intelligence.

FAQ

Here are some frequently asked questions about our sheet metal racks and pipe storage solutions. We hope you find them helpful!

Q1: Can I request a custom size or color?
Absolutely. We offer complimentary design services and deliver efficient, tailored solutions to meet your specific requirements.

Q2: Are you a manufacturer or a distributor?
We are a direct manufacturer with over 15 years of industry experience and expertise.

Q3: Is there a minimum order quantity?
No. We welcome orders of any size, starting from a single unit.

Q4: How can I get detailed product information?
Click the “Get a Quote” button to receive product images, detailed specifications, and videos. Our team is always ready to assist.

Q5: How do I provide my storage rack requirements?
Simply share the type, dimensions, and quantity of materials you plan to store, along with any other specific needs. We will develop a professional storage solution for you. Alternatively, leave your contact details for a personalized consultation.

Q6: Do you offer automated loading systems or robotic arms?
Yes. We provide loading robotic arms and integrated loading/unloading systems tailored to your laser cutting machine’s table size and material handling method (e.g., board rack, exchange platform, or material warehouse). Contact us with your details for a customized proposal.

Q7: Do you provide on-site installation and debugging?
Yes. Our technicians can travel to your facility for installation and debugging, ensuring successful operation. We have served clients globally, including in the USA, South Korea, Russia, Qatar, Mexico, South Africa, Egypt, and Lebanon.

Q8: How do you ensure product quality?
Our quality assurance includes:

A team of over 40 technical engineers for professional debugging and support.
A dedicated quality control department compliant with ISO9001 standards.
CE certification for all exports.
Rigorous load testing before shipment to ensure structural safety and reliability.

Q9: Where is your factory located?
Our modern 10,000-square-meter manufacturing facility is located in Jiyang Industrial Park, Jinan, Shandong, China.

Q10: How can I evaluate your company’s capabilities?
We offer virtual video factory tours and warmly welcome on-site visits.

Q11: What does your company specialize in?
Jinan Constant Storage Machinery Manufacturing Co., Ltd. is a high-tech enterprise specializing in the R&D, production, sales, installation, and service of intelligent storage solutions. Our product range includes sheet material warehouses, drawer-style shelves, cantilever racks, servo manipulators, gantry loaders, and fully automated handling systems. Supported by a skilled technical team and advanced equipment, we are committed to delivering high-performance storage products and solutions to customers worldwide.
