Electric heavy duty pipe storage racks

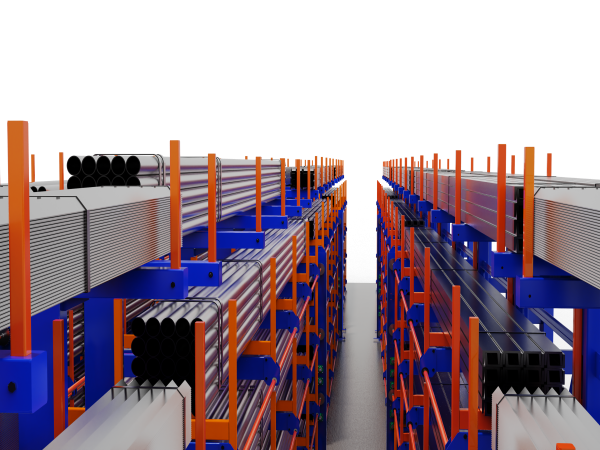

Roll out cantilever racking is ideal for storing and accessing bar stock, angle iron, tube,pipe, rollers, mandrels..etc long material and bulk goods, usually work will take a lot of time and find the right items they need if these items are stored on the ground.

Electric heavy duty pipe storage racks

Features:

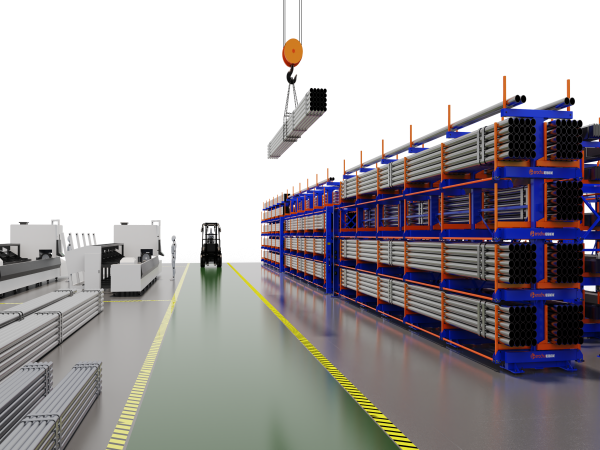

1.Material is handled by crane, no necessary with wider aisles so save space.

2.Sorting and storing any length of material.

3.Time-saving, material can be operated by crane from rack to terminal directly.

4.Solid structure with heavy loading capacity loading Max 5000kgs per layer.

5.100% extended arms, each layers can be accessed easily.

6.Materials can be stored by categories or size, and tray available for leftovers

7.Single or Double units available (Customized dimension) 8.Electrically Drive roll out racking available.

Standard	HC-G6053S	HC-G6053D	HC-G9055S	HC-G9055D	Customized
Storage Sheet Size	6000mm	6000mm	9000mm	12000mm	Customization
Loading Per layer	2tons	3tons	5tons	6tons	Customization
Number of layers	3+1	4+1	3+1	3+1	Customization
Single /Double	Single	Double	Double	Double	Customization
Total Loading per rack	8tons	25tons	35tons	42tons	Customization
Length of Am	550mm	600mm	800mm	800mm	Customization
Distance between two layers	600mm	600mm	800mm	800mm	Customization
Operation System	PLC Frequency conversioncontrol	PLC Frequency conversion control	PLC Frequency conversion control	PLC Frequency conversioncontrol	PLC Frequency conversioncontrol
Color of Rack	Orange/Blue	Orange/Blue	Orange/Blue	Orange/Blue	Customization

Optimized Roll Out Cantilever Racking System for Long Material Storage

The roll out cantilever racking system revolutionizes storage solutions for long materials like bar stock, angle iron, tubes, pipes, rollers, and mandrels. Unlike traditional ground storage that wastes time searching for items, this innovative system boosts efficiency while maximizing warehouse space utilization.

Key Features & Benefits:

✔ Space-Saving Design – Operated by crane without needing wide aisles, optimizing your storage footprint

✔ Versatile Storage – Accommodates materials of any length with 100% extendable arms for full accessibility

✔ Heavy-Duty Performance – Robust construction supports up to 5000kg per layer

✔ Smart Organization – Store materials by category/size with optional trays for remnants

✔ Time-Efficient Operation – Direct crane-to-terminal material handling eliminates unnecessary movement

✔ Customizable Configurations – Available in single/double units with electrically-driven options

FAQ

Here are some frequently asked questions about our sheet metal racks and pipe storage solutions. We hope you find them helpful!

Q1: Can I request a custom size or color?
Absolutely. We offer complimentary design services and deliver efficient, tailored solutions to meet your specific requirements.

Q2: Are you a manufacturer or a distributor?
We are a direct manufacturer with over 15 years of industry experience and expertise.

Q3: Is there a minimum order quantity?
No. We welcome orders of any size, starting from a single unit.

Q4: How can I get detailed product information?
Click the “Get a Quote” button to receive product images, detailed specifications, and videos. Our team is always ready to assist.

Q5: How do I provide my storage rack requirements?
Simply share the type, dimensions, and quantity of materials you plan to store, along with any other specific needs. We will develop a professional storage solution for you. Alternatively, leave your contact details for a personalized consultation.

Q6: Do you offer automated loading systems or robotic arms?
Yes. We provide loading robotic arms and integrated loading/unloading systems tailored to your laser cutting machine’s table size and material handling method (e.g., board rack, exchange platform, or material warehouse). Contact us with your details for a customized proposal.

Q7: Do you provide on-site installation and debugging?
Yes. Our technicians can travel to your facility for installation and debugging, ensuring successful operation. We have served clients globally, including in the USA, South Korea, Russia, Qatar, Mexico, South Africa, Egypt, and Lebanon.

Q8: How do you ensure product quality?
Our quality assurance includes:

A team of over 40 technical engineers for professional debugging and support.
A dedicated quality control department compliant with ISO9001 standards.
CE certification for all exports.
Rigorous load testing before shipment to ensure structural safety and reliability.

Q9: Where is your factory located?
Our modern 10,000-square-meter manufacturing facility is located in Jiyang Industrial Park, Jinan, Shandong, China.

Q10: How can I evaluate your company’s capabilities?
We offer virtual video factory tours and warmly welcome on-site visits.

Q11: What does your company specialize in?
Jinan Constant Storage Machinery Manufacturing Co., Ltd. is a high-tech enterprise specializing in the R&D, production, sales, installation, and service of intelligent storage solutions. Our product range includes sheet material warehouses, drawer-style shelves, cantilever racks, servo manipulators, gantry loaders, and fully automated handling systems. Supported by a skilled technical team and advanced equipment, we are committed to delivering high-performance storage products and solutions to customers worldwide.
