Double-Tower Automated Sheet Storage System

Behind the remarkable space-saving and efficiency claims of the modern Double-Tower Sheet Material Automated Storage and Retrieval System lies a foundation of deliberate and robust engineering. This isn’t a simple rack with a motor attached; it’s a precision machine tool for material handling. Understanding the core technology that drives this Automated Steel Plate Storage System reveals why it outperforms traditional methods and delivers reliable, long-term performance in demanding industrial environments. The synergy of its structural design, drive mechanism, and control software is what creates a solution greater than the sum of its parts.

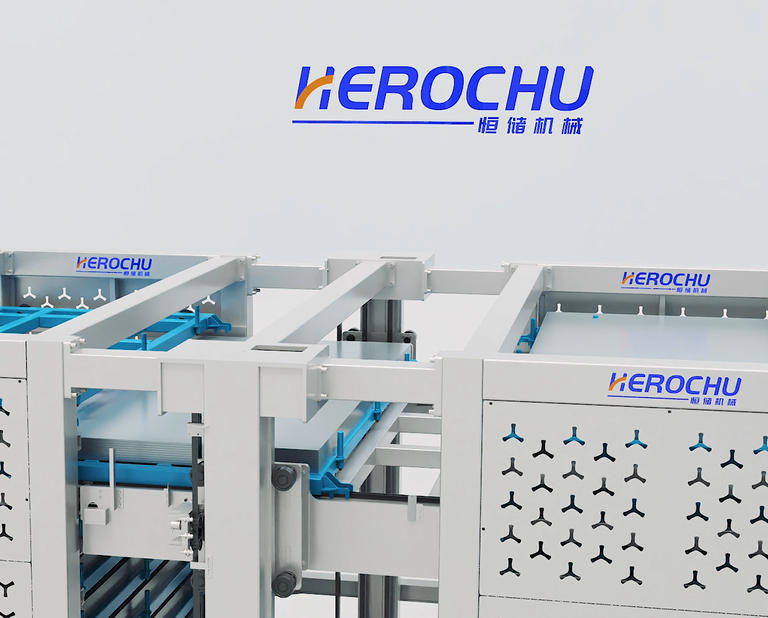

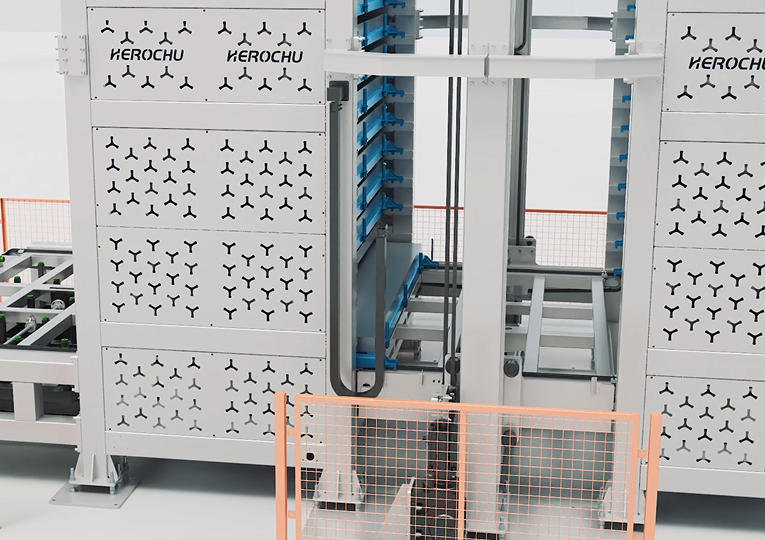

The architectural heart of the system is, of course, its dual-tower configuration. This design is a masterstroke in mechanical and spatial efficiency. Two vertical storage structures, built from heavy-duty steel, provide the framework. Housing the lift mechanism and its drive motors within or alongside these towers, rather than on a moving carriage, is a key innovation. This “counterweight” style design reduces the moving mass of the retrieval unit itself. A lighter shuttle means less inertial force, allowing for quicker acceleration and deceleration, reduced strain on the drive components, and enhanced overall energy efficiency. The centralized shuttle moving between the towers can access every storage location in both structures, creating a highly dense storage matrix without the need for multiple, independent machines.

The motion system is where precision meets power. The retrieval unit travels on high-grade linear guide rails. These rails provide absolutely straight, rigid, and low-friction guidance, ensuring the shuttle moves without wobble or deviation—a critical factor when aligning with storage slots that may hold several tons of material. The driving force comes from a chain drive transmission. Chosen for its exceptional strength, reliability, and ability to handle high loads, the chain drive is far more robust for this application than belt or cable systems. It transmits power positively from the stationary motors to the moving shuttle, enabling the consistent speeds of 9m/min vertical and 12m/min horizontal that balance speed with safe, controlled handling of heavy loads.

The load handling technology is specifically tailored for sheet metal. Each storage position is essentially a robust pallet or cartridge. The system’s lifting forks or platforms engage with these pallets with precise alignment. The optional plate support systems are crucial here; they can be customized with rollers, pads, or adjustable arms to securely cradle different sheet sizes (from 3015mm to 6020mm) and prevent edge damage or sagging. The high load per layer capacity of 3T/5T is made possible by the over-engineered structure of these pallets and the lifting mechanism, which often employs multiple, synchronized lift points to distribute the immense weight evenly.

The intelligence of the system is governed by its Programmable Logic Controller (PLC) and warehouse management software (WMS). This “brain” transforms the hardware from a simple machine into an intelligent logistics hub. The software manages the inventory database, knowing exactly which sheet is in which of the 68+ positions. It optimizes storage based on parameters like size, weight, or frequency of use. An operator interface—which can be a simple push-button panel, a touchscreen, or integrated with a factory’s main ERP system—allows for intuitive interaction. The operator requests a material by part number, job ID, or location, and the software executes the most efficient retrieval sequence. This software also provides vital diagnostic data, maintenance alerts, and usage reports, enabling predictive maintenance and continuous operational analysis.

This focus on engineered reliability directly addresses the weaknesses of traditional storage. It replaces the variable, skill-dependent operation of a forklift with the repeatable, programmed precision of a machine. It replaces the open, collision-prone environment of a warehouse aisle with the enclosed, guided path of a rail system. It replaces manual inventory logs with digital accuracy.

In essence, the Dual-Tower Sheet Metal Storage Warehouse is a testament to applied mechanical and software engineering. Its Double-Tower Automate Sheet Metal Storage Warehouse System design principles—distributed mass, guided motion, robust drive, and intelligent control—work in concert to create an Automated Warehouse Racking Solution that is not just a container, but an active, reliable, and indispensable contributor to modern manufacturing productivity.
