Double-Tower Automated Sheet Metal Storage and Retrieval System

In the competitive world of modern manufacturing, efficiency is not just a goal—it’s a necessity. One of the most persistent challenges fabricators and metalworking shops face is the storage and handling of raw sheet material. Traditional methods like static cantilever racks or sprawling floor storage are fraught with inefficiencies: they consume vast amounts of precious floor space, require significant manual labor, pose safety risks, and often lead to material damage. For forward-thinking operations looking to leapfrog the competition, the solution lies in intelligent automation. The Double-Tower Sheet Material Automated Storage and Retrieval System represents the pinnacle of this evolution, offering a transformative approach to material logistics.

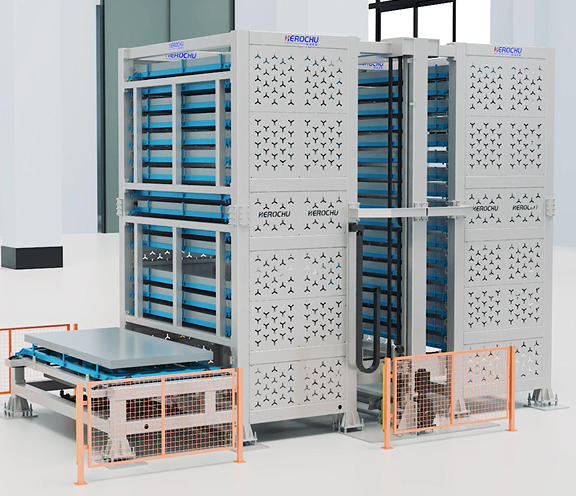

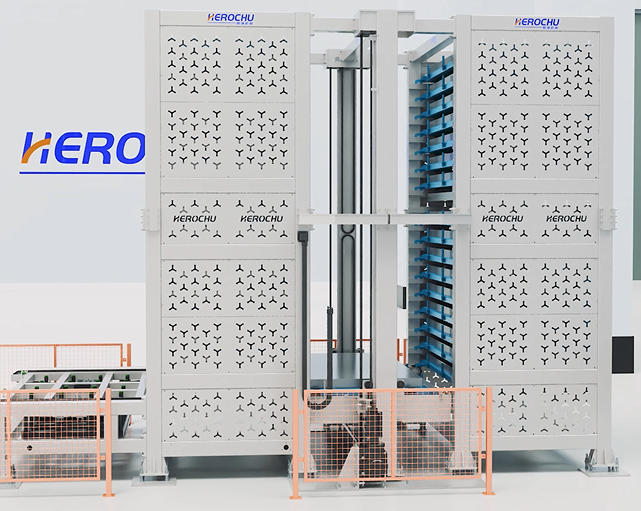

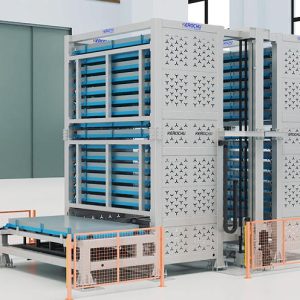

At its core, this system is a high-density, vertical storage solution engineered for the specific demands of sheet metal, steel plate, and other flat materials. Unlike conventional warehouse racking, this is not a passive structure. It is a fully integrated, computer-managed Automated Steel Plate Storage System designed to store, retrieve, and deliver materials with unparalleled precision and speed. The “double-tower” configuration is its defining characteristic. Picture two robust vertical storage columns, standing parallel, serviced by a centralized automated retrieval mechanism that travels between them. This design is fundamentally different from single-column systems, offering superior stability, greater capacity within the same footprint, and optimized mechanical performance.

Let’s delve into the specifications that make this system a powerhouse. It is engineered to handle a versatile range of sheet sizes, accommodating common industry formats such as 3015mm, 4015mm, 4020mm, 6015mm, and 6020mm. The system’s vertical design allows for configurations between 8 to 13 floors, creating a dense grid of storage locations. Each of these locations, or pallet positions, boasts an impressive load capacity of either 3 or 5 tons per layer, making it suitable for even the heaviest gauge materials. The motion is where engineering excellence shines. The retrieval unit operates on a combination of linear guide rails and chain drive transmission. This pairing ensures exceptionally smooth, precise, and reliable movement. The vertical lifting speed of 9 meters per minute and the inlet/outlet speed of 12 meters per minute are calibrated for optimal workflow—fast enough to keep pace with production demands without sacrificing the care required for handling delicate or expensive materials. Furthermore, the plate support system is often optional and customizable, allowing adaptation for different material types or edge-protection needs.

The benefits of implementing this Dual-Tower Sheet Metal Storage Warehouse are profound and multi-faceted. The most immediate impact is on spatial efficiency. The system’s ability to store over 448,000 lbs of material in a mere 280 square feet is nothing short of revolutionary. This vertical consolidation can reclaim up to 80% of the floor space typically lost to wide aisles and sprawling rack layouts. This reclaimed space can be repurposed for additional production cells, value-added services, or simply to create a safer, less congested working environment.

Operational efficiency sees a dramatic uplift. The era of searching for a specific sheet, maneuvering a forklift, and manually wrestling with heavy, awkward materials is over. An operator simply inputs a material request via a user-friendly control panel. The system’s computerized brain identifies the location, and the automated shuttle retrieves the designated pallet, delivering it seamlessly to the ergonomically positioned access point at ground level. This “goods-to-person” principle slashes retrieval times, eliminates waiting, and keeps your skilled fabricators at their machines, producing revenue-generating work instead of fetching materials. Forklift traffic—and its associated costs, dangers, and certifications—are virtually eliminated from the storage equation.

This leads directly to the critical advantage of enhanced safety. Manual handling of heavy, sharp-edged sheet metal is a primary source of workplace injuries in metal fabrication. The automated system acts as a guardian, enclosing the materials within its structure and managing all movement. Operators interact with sheets at a safe, accessible workstation, removing risks associated with dropped loads, pinch points, and forklift collisions. It also mitigates the organizational risk tied to the scarcity and cost of certified forklift operators.

Finally, material integrity and inventory control are vastly improved. Each sheet resides in its own dedicated slot or cartridge, minimizing surface contact and preventing the scratches, dents, and warping common in stacked storage. Precise automated handling replaces the unpredictable forces of forklift forks and slings. For industries like aerospace, defense, or precision automotive where material quality is paramount, this protection is invaluable. Simultaneously, the integrated software provides real-time inventory tracking, reducing loss and enabling just-in-time material management.

In conclusion, the Double-Tower Automate Sheet Metal Storage Warehouse System is far more than a storage rack. It is a strategic asset—a high-density Automated Warehouse Racking Solution that redefines the flow of materials. It transforms a cost center (storage) into a driver of efficiency, safety, and profitability. For any manufacturing operation serious about lean principles, space optimization, and workforce safety, investing in this advanced automated storage and retrieval technology is a definitive step toward a more productive and resilient future.
