Customized Pipes Stacking Racking and Automatic Vertical Storage Rack Systems

The storage of long, cylindrical goods like pipes and tubes presents a unique set of engineering challenges. Unlike square or rectangular beams, pipes are prone to rolling, shifting, and bending if not properly supported. For warehouses handling large volumes of piping, a standard rack is a liability. The solution lies in specialized engineering: Customized Pipes Stacking Racking integrated into an Automatic Vertical Storage Rack System. Herochu has developed a comprehensive approach to this problem, combining custom-engineered supports with the space-saving benefits of vertical automation to create a storage solution that is both secure and highly scalable.

The Challenge of Pipe Storage

Pipes are inherently unstable. Stacking them in loose piles on the floor—a common sight in many yards—is not only a massive waste of space but also a significant safety risk. Retrieving a pipe from the bottom of a pile requires moving the entire stack, a process that is labor-intensive and dangerous. Furthermore, this method offers no inventory control; knowing exactly how many of a specific SKU you have often requires a physical count.

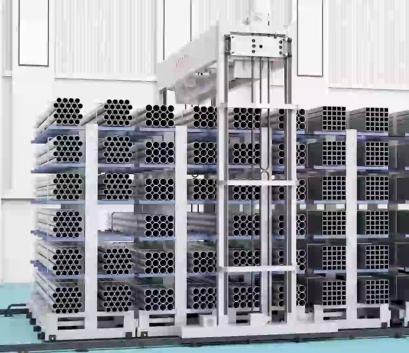

Herochu’s Customized Pipes Stacking Racking solves these problems by providing a dedicated, secure home for every pipe or bundle of tubes. By integrating this specialized racking into an Automatic Vertical Storage Rack System, we elevate the pipes off the floor and into a controlled, dense storage environment. The system utilizes material frames—pallets or baskets designed with curved cradles or V-shaped supports—that cradle the pipes securely, preventing them from rolling during storage or while being transported by the automated gantry.

Custom Engineering for Profile Integrity

The term “Customized” in Customized Pipes Stacking Racking is critical. The support structures within the rack and on the material frames must be matched to the diameter and length of the pipes being stored. A 2-inch diameter tube requires a different cradle profile than a 12-inch diameter pipe. Herochu addresses this with optional, highly configurable profile support systems. These can include adjustable arms or removable cradles that can be reconfigured as your product mix changes.

This attention to detail ensures the structural integrity of your inventory. Pipes are not allowed to sag or bend over time, which can occur if they are stored on flat surfaces without proper support. The robust main structure of the Herochu system, engineered for loads of 3 to 5 tons per layer, provides the foundation for this secure storage. Whether you are storing thin-walled tubing susceptible to denting or heavy-walled schedule pipe, the customized racking ensures the material is held securely without damage.

The Power of Vertical Automation

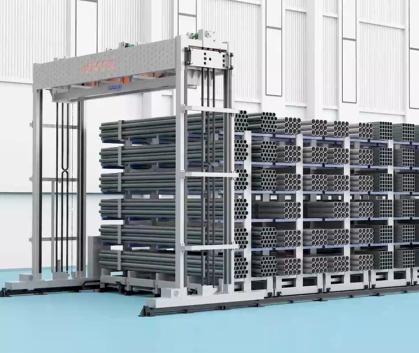

Combining Customized Pipes Stacking Racking with an Automatic Vertical Storage Rack System transforms your pipe storage from a static, space-wasting operation into a dynamic, high-density automated process. The system’s core is the loading and unloading gantry, which travels on precision guide rails. This automated machine can navigate the narrow aisles between the vertical racks, reaching heights of 8 to 13 layers or more.

This vertical integration is where the scalability comes in. If your business grows and your inventory of pipes increases, you don’t necessarily need a new building. With a well-designed Automatic Vertical Storage Rack System, you can often add more racks or increase the height of existing ones (within the limits of your facility) to accommodate the new stock. The gantry system is designed to service these expanded footprints, ensuring your storage capacity can scale with your business needs without a proportional increase in labor or floor space.

Efficiency in Motion: Speed and Reliability

A storage system is only as good as its ability to deliver materials when needed. Herochu’s system is built for speed. The chain drive transmission on linear guide rails provides rapid vertical lifting (9m/min) and horizontal inlet and outlet movement (12m/min). This means that even as the system scales to store thousands of pipes, the retrieval time for any single item remains minimal. The automated process eliminates the need for an operator to hunt through a pile, hook a chain around a pipe, and drag it out—a process that is both slow and perilous.

By implementing Customized Pipes Stacking Racking within a fully Automatic Vertical Storage Rack System, you gain complete control over your pipe inventory. You maximize your warehouse space, protect your valuable materials from damage, enhance workplace safety, and drastically improve the speed and accuracy of your material handling operations. It is a scalable, engineered solution for the unique demands of pipe and tube storage.
