Customized Automatic Storage Rack System Industrial Steel Profile Warehouse Solution for Pipes

In the era of Industry 4.0, the warehouse is no longer a passive holding area. It is a dynamic node in the supply chain. For businesses dealing with pipes, tubes, and structural profiles, the transition to a Customized Automatic Storage Rack System is not just about better organization—it is about gaining digital control over physical assets. The modern Industrial Steel Profile Warehouse Solution for Pipes is defined by its ability to track, manage, and move inventory with minimal human intervention, driven by powerful software.

This article explores the “intelligent” side of automated storage, focusing on how software integration and real-time data transform a simple rack into a strategic asset for steel warehouses.

Beyond the Hardware: The Role of WMS

When discussing a Customized Steel Profile Warehouse System for Pipe Storage, it is easy to focus on the visible elements: the towering racks, the moving gantries, and the heavy-duty chains. However, the true brain of the operation is the Warehouse Management System (WMS).

Standard material management often relies on tribal knowledge or clipboards. An operator knows that “the 4-inch steel pipe is usually over in the north bay.” An automated system, however, knows the exact coordinate, weight, and length of every single bundle. With optional WMS integration, the storage system becomes a self-updating inventory database.

When a truckload of pipes arrives, the operator enters the batch and specifications into the system. The Automatic Storage Rack System then assigns an optimal location based on the product’s size and demand velocity. Fast-moving items are placed in “golden zones”—positions that are quickest for the gantry to access—while slow-moving stock is stored higher up or further back. This dynamic slotting optimization is impossible to maintain manually but is effortless for an algorithm.

Real-Time Inventory: Visible, Traceable, and Countable

One of the most significant pain points in pipe and profile storage is inventory inaccuracy. Long materials are difficult to count; they are often bundled with straps, making visual verification of quantities inside the bundle difficult. Furthermore, remnants from production (cut-offs) often get “lost” back into inventory without proper tracking.

An intelligent system solves this through Standardized Material Management. Every movement is recorded. When a gantry retrieves a bundle of five pipes and delivers it to the saw, the WMS deducts those five pipes from inventory. If the saw operator returns two remnants, they are scanned and stored in a dedicated remnant location, with their new length logged in the system.

This creates a closed-loop system where inventory is real-time visible, traceable, and countable. At any moment, a manager can log in and see exactly how many meters of 100mm x 100mm square tube are in stock, where they are located, and how long they have been there. This visibility prevents over-ordering and supports accurate job costing.

“One-Click” Retrieval: Slashing Material Handling Time

The interface between the operator and the Industrial Profile Steel Warehouse System is designed for simplicity. Despite the complex mechanics underneath, the user experience is streamlined to a “one-click” operation.

Imagine a production scheduler releases a work order for a job requiring 20 pieces of 8-meter channel iron. Previously, this would involve sending a worker to find the material, which might be buried under other stock. Now, the operator selects the required SKU from a dropdown menu in the control software. With one click, the system dispatches the gantry.

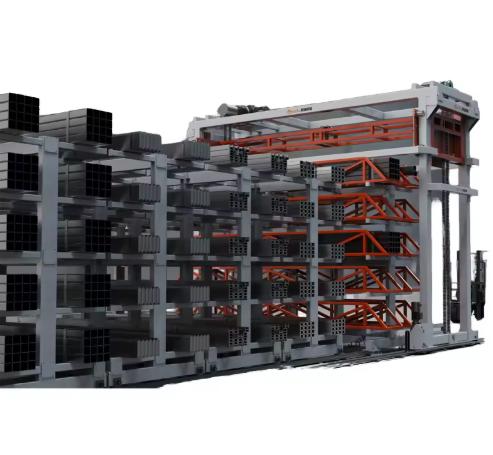

The gantry moves horizontally at speeds up to 12 meters per minute while the carriage lifts vertically to the exact storage level. Once at the correct bay, the extractor mechanism engages, pulling the specific material frame from the rack. The entire cycle—from command input to material presentation at the output station—takes minutes. This efficiency is quantified in the marketing highlights as a 60% reduction in material handling time. That 60% translates directly into labor savings and faster machine utilization.

Heavy-Duty Design Meets Precision Control

While the software handles the intelligence, the hardware must handle the stress. A system storing Steel Beams and Pipes must support immense weight—often up to 5 tons per layer. This requires a marriage of brute force and finesse.

The gantry’s chain drive transmission provides the power needed to accelerate and decelerate these heavy loads. However, the control algorithms modulate that power to ensure smooth starts and stops. This is crucial when handling finished pipes where the surface coating could be scratched by sudden jerks.

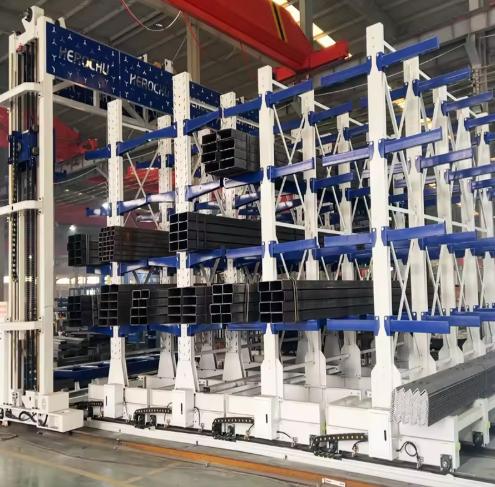

The Stable structure and reliable operation of these racks ensure that even at heights of 8 to 13 layers, the system remains rigid. Precision guide rails keep the gantry aligned to the millimeter, ensuring that the extractor forks enter the storage cells cleanly every time. This combination of rugged construction and intelligent control makes the system suitable for the full spectrum of materials, from delicate aluminum profiles to heavy steel pipes.
