Customizable Hand-Cranked Pipe Rack for Organized Tube Storage

Meta Description: Achieve lean warehouse management with a Customizable Hand-Cranked Pipe Rack for Organized Tube Storage. Learn how adjustable dividers, modular design, and manual control eliminate waste and improve workflow.

In the world of logistics, organization is synonymous with speed. For facilities handling a diverse mix of long goods—from structural steel profiles to aluminum extrusions and copper piping—chaotic storage leads to costly errors. Implementing a Customizable Hand-Cranked Pipe Rack for Organized Tube Storage is the cornerstone of a lean strategy, transforming a disorganized stockyard into a model of efficiency where every SKU has its place.

Beyond Basic Storage: The Need for Customization

No two warehouses are alike, and neither are their inventory lists. A standard rack might hold the weight, but it won’t necessarily optimize the workflow. Customization in cantilever racks goes beyond just choosing a color; it involves engineering the rack to fit the specific dimensional and operational nuances of your inventory .

A truly Customizable Hand-Cranked Pipe Rack for Organized Tube Storage allows you to define:

• Arm Length and Capacity: Arms can be designed to specific lengths (typically from 12 inches to over 4 feet) with load capacities tailored to your heaviest stock .

• Upright Height: Columns can reach up to 10.5 meters or more, allowing you to maximize vertical space without sacrificing safety .

• Single or Double-Sided Configuration: Depending on your layout, you can opt for single-sided units against walls or double-sided units in the center of the warehouse to create high-density “lanes” .

The Role of Dividers and Segregation

The “customizable” aspect is most critical when dealing with mixed inventory. Imagine a single level storing different diameters of stainless steel tubing or segregating 304 from 316L grades. Without physical barriers, materials can roll into each other, causing damage and mixing up inventory.

High-quality crank-out racks address this with adjustable dividers and stopper pins. These slot into the cantilever arms, allowing you to create distinct compartments on a single arm level . This feature ensures that:

• Inventory Accuracy: Pickers grab the right grade and diameter every time.

• Surface Protection: Materials don’t rub against each other during storage or retrieval.

• Space Efficiency: You fill the arm horizontally without leaving gaps for different SKUs to mix.

Material Integrity Through Organized Handling

For industries serving high-end manufacturing, the surface finish (Ra) is part of the product’s value. Disorganized storage often leads to “fishing” for the right part, dragging one piece across another. The combination of a hand-crank mechanism and customized dividers eliminates this.

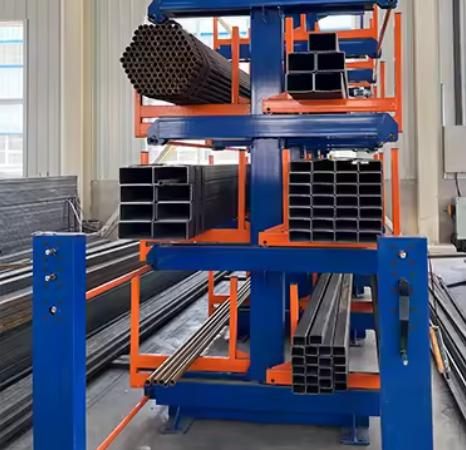

Because the system extends fully into the aisle, the crane operator has a clear, unobstructed path to the exact compartment needed. There is no lateral dragging of materials across the arms. The vertical lift, combined with UHMW liners on the arms, ensures that sensitive materials like anodized aluminum or polished hydraulic cylinder tubing remain pristine .

Adapting to Multi-Length Inventory

A common challenge in pipe and tube storage is handling varying lengths. You might have a mix of 20-foot and 10-foot remnants. A standard rack might waste space or cause overhang issues. Customizable systems solve this through modular column spacing.

By analyzing the deflection properties of your materials, engineers can space the upright columns to support the longest lengths without sagging. For shorter remnants, some systems allow for the integration of intermediate supports or even separate “remnant” bays, ensuring that every inch of the warehouse is utilized efficiently .

Enhancing the Operator Experience

Lean principles aren’t just about inventory; they’re about people. A well-organized rack reduces the cognitive load on operators. When a system is customizable, controls can be placed at ergonomic heights, and the cranking mechanism is smooth and predictable.

The manual crank system, far from being antiquated, is actually a form of “lean automation.” It provides high-mix, low-volume operations with the flexibility they need without the high cost and complexity of fully automated systems. The operator has direct, tactile control, moving precisely the load they need, when they need it .

Conclusion

A Customizable Hand-Cranked Pipe Rack for Organized Tube Storage is more than a storage product; it is a workflow management tool. By tailoring the rack to the exact dimensions of your inventory and incorporating features like dividers and modular bracing, you create a system that reduces waste, protects materials, and empowers your workforce. It turns the storage area from a passive holding zone into an active component of your production line.
