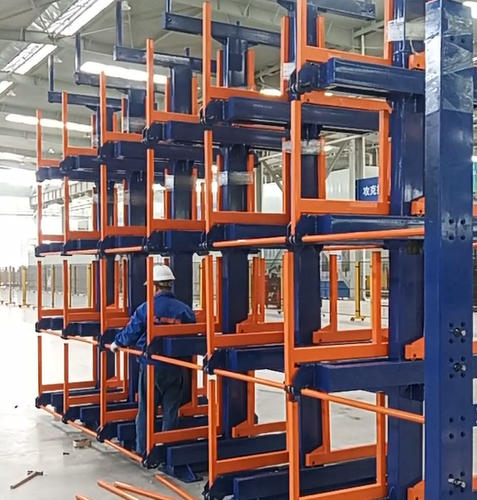

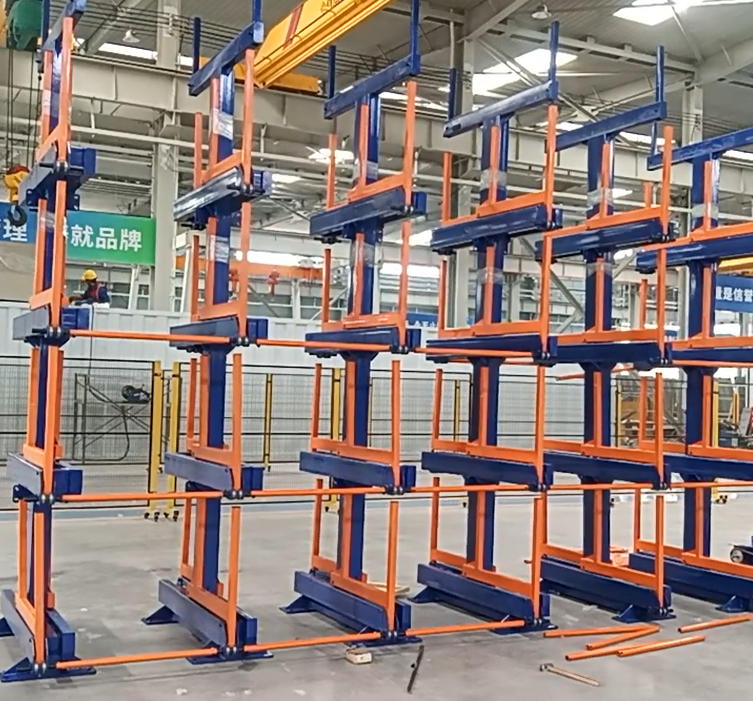

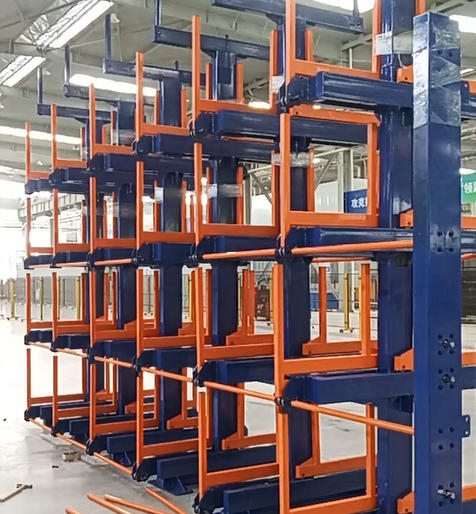

Crank Out Cantilever Racks

Cantilever racks stand apart from other storage systems for one key reason: their design. Unlike conventional racks that rely on front and rear columns to support loads, Herochu’s Crank Out Cantilever Racks use only vertical supports at the rear, with sturdy “arms” extending forward from these columns to hold your materials. This simple yet innovative design eliminates front obstructions, creating a wide-open access zone that’s a game-changer for loading and unloading. Whether you’re using a forklift, pallet jack, or manual lifter, you won’t waste time maneuvering around front columns—every storage slot is immediately accessible, cutting down on handling time and labor costs.

Crank Out Cantilever Racks

Specification

Model	HC-G6053S	HC-G6053D	HC-G9055S	HC-G9055D
Load (single layer)	3t	3t	5t	3t
Tube Length	6m	6m	9m	9m
Layers	4+1
Available dimensions of compartment	Depth * Height: 600×400,600×600,800×600 mm
Overall dimensions/mm	6435x3340x1550	6435x3340x1750	9435x3340x1550	9435x3340x1750
Cantilever movement mode	Single-side power-assisted type	Double-side power-assisted type	Single-side power-assisted type	Double-side power-assisted type
Height from the ground	330mm
Top floor height from ground	3040mm		3840mm
Column spacing	1800mm		1500mm
Note: Both manual and electric can be customized, and the load-bearing capacity, length, number of layers, and layer height can be customized.

Herochu Crank Out Cantilever Racks: Customizable, Heavy-Duty Storage for Bulky & Long Loads

For workshops, warehouses, and manufacturing facilities dealing with long, bulky, or awkward loads—think pipes, lumber, steel bars, or even furniture—finding storage that’s accessible, space-efficient, and durable is a constant challenge. Traditional pallet racks or static shelves block access with front columns, force you to rearrange entire stacks to retrieve one item, and often can’t handle the weight or length of specialized materials. That’s where Herochu’s Crank Out Cantilever Racks change the game. Engineered with a unique rear-only vertical support design and extendable arms, these racks deliver wide-open front access, flexible configuration, and industrial-grade strength—all while being fully customizable to your workshop’s needs. Starting at $3,698 and backed by CE, EU, and ISO 9001 certifications, Herochu’s Crank Out Cantilever Racks aren’t just storage—they’re a solution to streamline your workflow and protect your valuable materials.

What Makes Herochu Crank Out Cantilever Racks Different?

But Herochu’s Crank Out Cantilever Racks go beyond just open access. They’re built to address the unique pain points of storing long, heavy, or irregularly shaped items, with features that prioritize flexibility, durability, and safety. Let’s break down why these racks are the ideal choice for workshops and warehouses of all sizes.

1. Flexible Configuration for Every Load Type

No two workshops store the same materials—and your storage system shouldn’t treat them like they do. Herochu’s Crank Out Cantilever Racks are designed with adaptability in mind, starting with their arms: available in a wide range of styles, lengths (up to 8’), and weight capacities (500–2000kgs per arm). These arms aren’t fixed, either—they can be adjusted vertically in 4-inch increments, letting you tailor the rack’s opening height to fit everything from short pipes to tall lumber stacks. Need to switch from storing steel bars one week to plywood the next? Simply reposition the arms—no tools, no downtime, no need to invest in a new rack.

This flexibility extends to the rack’s overall setup, too. Choose between single-sided (for wall-mounted or corner placement) or double-sided (for freestanding use in open spaces) models, depending on your workshop layout. And if your business grows—say, you start handling more materials or larger loads—you can easily extend the system with add-on bays. No need to replace the entire rack; just expand it to match your needs. This scalability ensures your investment lasts for years, even as your storage requirements change.

2. Industrial-Grade Durability for Heavy-Duty Use

Long, bulky materials like steel bars, structural members, or thick lumber aren’t light—and flimsy storage can lead to bent arms, collapsed racks, or worse, workplace accidents. Herochu’s Crank Out Cantilever Racks are built to handle the heaviest loads, using structural steel with a minimum yield strength of 50,000 psi—a material choice that ensures resistance to warping, bending, or corrosion, even in high-use environments.

Every component is engineered for strength: the arm connector plates are heavy-duty to prevent slippage, and column-to-base connections are bolted (not welded) for added stability, reducing the risk of structural failure. The racks also support freestanding heights up to 30’, letting you maximize vertical space without sacrificing safety. Whether you’re storing 500kg pipes or 2000kg steel sheets, these racks keep your materials secure—no matter how heavy or how long they are.

3. Dual-Sided Access & Space Savings

Workshop floor space is a finite resource, and wasted horizontal space can cramp your workflow. Herochu’s Crank Out Cantilever Racks solve this by eliminating the front columns that take up valuable room in traditional racks. Instead, the rear-only support design frees up horizontal space, letting you store more materials in the same footprint.

Even better, double-sided models allow access from both sides of the rack, so two teams can load or unload materials simultaneously—cutting down on wait times and boosting efficiency. This design also reduces the risk of forklift damage: without front columns to collide with, operators can maneuver more easily, lowering the chance of costly repairs to both the rack and your equipment. For busy workshops where every square foot and every minute counts, this space-saving, dual-access design is a game-changer.

4. Indoor & Outdoor Versatility

Many storage systems are limited to indoor use, forcing you to find separate solutions for outdoor materials like lumber or building supplies. Herochu’s Crank Out Cantilever Racks break this barrier—they’re built to perform reliably both indoors and outdoors. The structural steel construction resists rust and weather damage, and with optional weather-resistant spray paint (available in customizable colors), you can protect the rack even in harsh outdoor conditions.

Add decking to the arms, and these racks can even function like pallet racks—storing boxes, pallets, or smaller items—while still offering the open access that sets cantilever systems apart. This versatility means you can use the same rack for multiple storage needs, from indoor pipe storage to outdoor lumber stacks, simplifying your inventory management and reducing the number of storage systems you need to invest in.

What You Can Store with Herochu Crank Out Cantilever Racks

The beauty of these racks lies in their ability to handle almost any long, bulky, or irregularly shaped item. Herochu’s Crank Out Cantilever Racks are trusted by workshops and warehouses to store:

Steel products: Steel bars, sheet steel, structural members, and tubing
Wood & lumber: Long timber, plywood, and building materials
Pipes & conduit: Metal pipes, plastic conduit, and extrusions
Furniture & appliances: Bulky furniture pieces and large appliances (ideal for distribution centers)
Rolls & sheets: Fabric rolls, plastic sheets, and roofing materials
Boxes & pallets: With optional decking, perfect for standard palletized loads
Doors & windows: Large door panels and window frames

No matter what your workshop specializes in, these racks can be tailored to fit your materials—whether you need 8’ arms for extra-long pipes or higher weight capacities for heavy steel bars.

Customization: Build a Rack That Fits Your Workshop

Every workshop has unique needs, and a one-size-fits-all storage system rarely works. Herochu’s Crank Out Cantilever Racks are fully customizable, so you can design a solution that matches your space, your materials, and your workflow. Here’s how we tailor the rack to you:

1. Size & Dimensions

Arm length: Choose from standard lengths up to 8’ or request custom lengths for extra-long materials.
Height: Freestanding models go up to 30’, but we can adjust the height to fit your ceiling or outdoor storage constraints.
Width: Customize the rack’s width to match your workshop’s layout—whether you need a narrow single-sided rack for a corner or a wide double-sided rack for open space.

2. Load Capacity

Each arm supports 500–2000kgs, but we can design heavy-duty arms for higher capacities (just let our team know your needs).
The rack’s overall load capacity is calculated based on your material weight, so you never have to worry about overloading.

3. Finish & Color

Standard finish: Durable spray paint that resists scratches and corrosion.
Custom colors: Match the rack to your workshop’s branding or safety color-coding (e.g., red for fire safety zones, blue for steel storage).

4. Add-Ons & Accessories

Decking: For storing boxes, pallets, or smaller items (available in wood, steel, or plastic).
Weather covers: For outdoor use, to protect materials from rain, snow, or sun.
Label holders: To organize materials by type, size, or project, making inventory checks faster.

Our customization process is simple and customer-focused:

Consultation: Our team will ask about your workshop layout, the materials you store, and your workflow to understand your needs.
Design: We’ll create a 2D or 3D sketch of the custom rack, so you can visualize how it will fit in your space.
Quotation: We’ll provide a transparent quote, starting at $3,698, with no hidden fees.
Production & Delivery: Once approved, we’ll build the rack in our modern factory and coordinate delivery to your location.
Installation Guidance: We’ll send step-by-step instructions or connect you with a local installer to ensure the rack is set up safely and correctly.

Why Choose Herochu? Credibility You Can Trust

Herochu isn’t just a storage equipment brand—we’re part of Ji’nan Constant Storage Machinery Manufacturing Co., LTD, a leading manufacturer with over 16 years of experience in designing and building warehousing solutions. When you choose Herochu’s Crank Out Cantilever Racks, you’re choosing a product backed by:

1. Global Certifications

Every Herochu rack is CE, EU, and ISO 9001 certified, meaning it meets the strictest international standards for safety, quality, and performance. These certifications aren’t just labels—they’re proof that our racks undergo rigorous testing to ensure they can handle industrial use, protecting your team and your materials.

2. Modern Manufacturing & Expert Team

We operate a 16,000-square-meter modern factory equipped with state-of-the-art laser cutting and welding equipment, ensuring every rack is built with precision. Our team of over 100 employees includes engineers, production specialists, and customer service experts—all dedicated to creating storage solutions that work for you. We don’t just sell racks; we partner with you to solve your storage challenges.

3. Proven Track Record

Herochu has signed strategic cooperation agreements with well-known domestic enterprises and holds multiple technical patents for our storage designs. We’ve also been honored with titles like “AAA Credit Enterprise” and “Honest Entrepreneur”—recognition of our commitment to quality, integrity, and customer satisfaction. When you invest in Herochu, you’re investing in a brand that’s trusted by industry leaders.

4. Full-Service Support

Our support doesn’t end when you receive your rack. We offer ongoing assistance, including maintenance tips, replacement parts (like extra arms or connectors), and guidance on expanding your system as your business grows. Whether you have a question about adjusting the arms or need help with a custom order, our team is just a call or email away.

Invest in Efficiency & Durability—Starting at $3,698

Herochu’s Crank Out Cantilever Racks offer an affordable solution for workshops and warehouses looking to streamline storage, save space, and protect their materials. Starting at $3,698, these racks deliver long-term value: they’re built to last, customizable to your needs, and designed to boost efficiency every day.

Think about the time your team wastes now—moving stacks to access one pipe, repairing forklift damage to front columns, or storing outdoor materials in temporary, unstable solutions. Herochu’s Crank Out Cantilever Racks eliminate these pain points, letting your team focus on what matters most: production.

Get Started with Herochu Today

Ready to transform how you store long, bulky materials? Contact Herochu’s team today to discuss your needs. Whether you’re looking for a standard model or a fully customized rack, we’ll work with you to design a solution that fits your workshop, your budget, and your materials. With Herochu’s Crank Out Cantilever Racks, you’re not just buying storage—you’re buying a more efficient, safer, and more productive workshop.

FAQ

Here are some frequently asked questions about our sheet metal racks and pipe storage solutions. We hope you find them helpful!

Q1: Can I request a custom size or color?
Absolutely. We offer complimentary design services and deliver efficient, tailored solutions to meet your specific requirements.

Q2: Are you a manufacturer or a distributor?
We are a direct manufacturer with over 15 years of industry experience and expertise.

Q3: Is there a minimum order quantity?
No. We welcome orders of any size, starting from a single unit.

Q4: How can I get detailed product information?
Click the “Get a Quote” button to receive product images, detailed specifications, and videos. Our team is always ready to assist.

Q5: How do I provide my storage rack requirements?
Simply share the type, dimensions, and quantity of materials you plan to store, along with any other specific needs. We will develop a professional storage solution for you. Alternatively, leave your contact details for a personalized consultation.

Q6: Do you offer automated loading systems or robotic arms?
Yes. We provide loading robotic arms and integrated loading/unloading systems tailored to your laser cutting machine’s table size and material handling method (e.g., board rack, exchange platform, or material warehouse). Contact us with your details for a customized proposal.

Q7: Do you provide on-site installation and debugging?
Yes. Our technicians can travel to your facility for installation and debugging, ensuring successful operation. We have served clients globally, including in the USA, South Korea, Russia, Qatar, Mexico, South Africa, Egypt, and Lebanon.

Q8: How do you ensure product quality?
Our quality assurance includes:

A team of over 40 technical engineers for professional debugging and support.
A dedicated quality control department compliant with ISO9001 standards.
CE certification for all exports.
Rigorous load testing before shipment to ensure structural safety and reliability.

Q9: Where is your factory located?
Our modern 10,000-square-meter manufacturing facility is located in Jiyang Industrial Park, Jinan, Shandong, China.

Q10: How can I evaluate your company’s capabilities?
We offer virtual video factory tours and warmly welcome on-site visits.

Q11: What does your company specialize in?
Jinan Constant Storage Machinery Manufacturing Co., Ltd. is a high-tech enterprise specializing in the R&D, production, sales, installation, and service of intelligent storage solutions. Our product range includes sheet material warehouses, drawer-style shelves, cantilever racks, servo manipulators, gantry loaders, and fully automated handling systems. Supported by a skilled technical team and advanced equipment, we are committed to delivering high-performance storage products and solutions to customers worldwide.
