Herochu’s Roll-Out Cantilever Rack (a specialized variant of our core cantilever design) is engineered exclusively for long materials that are difficult to handle with traditional shelving. Unlike fixed cantilever racks, this system features arms that fully extend with a simple crank turn—eliminating the need for cumbersome lifting or reaching when loading and unloading. This design breakthrough transforms how you manage long stock: no more struggling to maneuver pipes or lumber into tight spaces, and no more wasting time coordinating multiple workers for basic tasks.

Crank-Out Cantilever Racking | Steel Pipe Storage Racks

Herochu Crank-Out Cantilever Racking: Industrial-Grade Steel Pipe Storage Racks Tailored to Your Workshop

When it comes to storing long, heavy materials like steel pipes, plastic pipes, round steel, or extended wooden stock, standard storage solutions often fall short—wasting space, slowing down operations, and creating safety risks. Herochu’s Crank-Out Cantilever Racking solves these challenges head-on, delivering a specialized, CE, UE, and ISO 9001-certified storage system designed to maximize efficiency, safety, and space in your workshop or warehouse. Starting at just $6,200, this customizable Steel Pipe Storage Rack line adapts to your unique needs, whether you’re managing a small fabrication shop or a large-scale distribution center.

What Is Herochu’s Crank-Out Cantilever Racking?

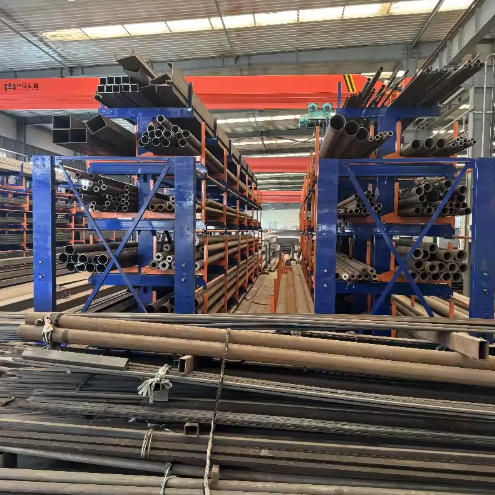

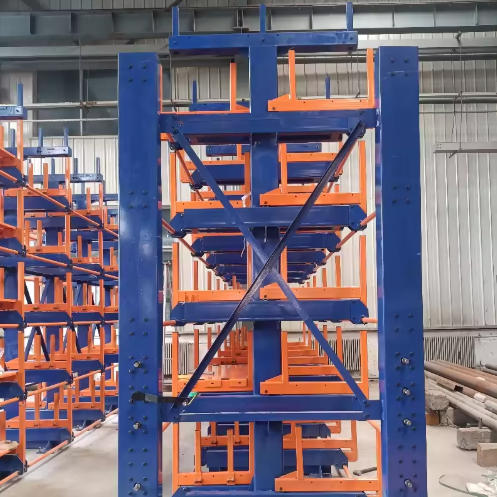

With hundreds of successful roll-out cantilever rack projects under our belt, Herochu has refined this system to balance durability and functionality. Each rack is constructed from high-grade steel, ensuring it withstands the rigors of industrial use—from daily loading of heavy steel pipes to the constant movement of extended wooden materials. We offer two primary configurations to match your space: single-side (ideal for wall-mounted setups to save floor space) and double-side (for freestanding use, doubling storage capacity in the same footprint). Most designs include 3 roll-out levels for easy access, plus a fixed top level for additional, less frequently used stock—optimizing every inch of vertical space.

Key Benefits: Why Workshops Choose Herochu’s Crank-Out Cantilever Racking

1. Dramatically Save Warehouse Storage Space

Floor space is a valuable resource in any workshop, and Herochu’s Crank-Out Cantilever Racking is built to conserve it. When not in use, the crank-operated arms retract fully, reducing the rack’s footprint and freeing up space for other equipment, workflows, or additional inventory. Unlike bulk storage methods that pile materials on the floor (risking damage and clutter), our cantilever design keeps long stock organized and off the ground—while the retractable arms ensure the system doesn’t occupy unnecessary space during lulls in operation. For workshops with limited square footage, this means fitting more inventory without expanding your facility.

2. Boost Working Efficiency (No More Team Lifting)

Traditional long-material storage often requires 2–3 workers to load or unload a single piece—wasting labor hours and creating bottlenecks. Herochu’s Crank-Out Cantilever Racking changes this: one person can operate the crank to extend the arms, position materials securely, and retract the arms—all in a fraction of the time. This efficiency gain adds up quickly: if your team handles 50 steel pipes per day, switching to our system could cut handling time by 50% or more, letting workers focus on higher-value tasks like fabrication or assembly. The smooth, crank-operated mechanism also reduces material damage—no more dropping pipes or scraping surfaces during movement—lowering replacement costs and minimizing downtime.

3. Enhance Workplace Safety

Safety is non-negotiable in industrial settings, and Herochu’s design prioritizes worker protection at every step. The retractable arms eliminate the need for workers to climb, reach over, or lean into tight spaces—common causes of strains, falls, or pinched fingers with fixed racks. The stable steel frame and secure arm locking mechanism ensure materials stay in place during extension and retraction, preventing accidental slips or spills. Plus, since only one worker is needed for operation, there’s less risk of miscommunication or coordination errors that can lead to accidents. Every Herochu Crank-Out Cantilever Rack meets strict CE, UE, and ISO 9001 standards, so you can trust that it’s built to withstand heavy use while keeping your team safe.

Standard Specifications: Choose the Right Rack for Your Needs

Herochu offers four core models of Crank-Out Cantilever Racking, each engineered to handle different load capacities and material lengths. All models include the 4+1 layer design (3 roll-out levels + 1 fixed top level) and are built with heavy-duty steel for long-lasting performance.

Model	Single-Layer Load	Material Length Capacity	Configuration	Overall Dimensions (L x W x H)
HC-G6053D	3t	6m	Bilateral Assistance	6435x3340x1750mm
HC-G9055S	5t	9m	Unilateral Assistance	9435x3340x1550mm
HC-G9055D	5t	9m	Bilateral Assistance	9435x3340x1750mm
HC-G12055D	5t	12m	Bilateral Assistance	12435x3340x1750mm

Fully Customizable: Build a Rack That Fits Your Workshop

Every workshop has unique needs—whether you need a higher load capacity for extra-heavy steel pipes, a shorter length for a compact space, or electric operation instead of manual cranking. Herochu offers full customization for all Crank-Out Cantilever Racking systems, including:

Load-bearing capacity: Upgrade to handle more than 5t per layer for ultra-heavy materials.

Length: Adjust to fit materials shorter than 6m or longer than 12m.

Number of layers: Add or remove roll-out or fixed levels to match your inventory volume.

Layer height: Modify vertical spacing to accommodate taller or shorter long materials.

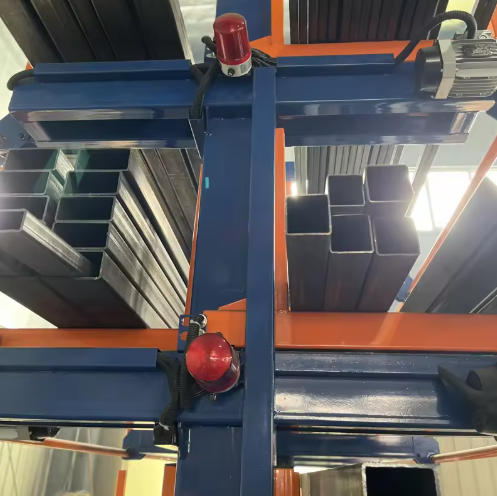

Operation type: Choose manual cranking (cost-effective for low-frequency use) or electric operation (ideal for high-volume workflows, reducing worker fatigue).

Our team works directly with you to assess your workshop layout, material types, and daily operations—ensuring the final rack integrates seamlessly with your existing processes. From initial design to installation, we prioritize transparency and collaboration, so you know exactly what to expect.

Why Herochu?

For over a decade, Herochu has been a trusted name in industrial storage solutions, with a track record of delivering durable, efficient products that solve real-world workshop challenges. Our Crank-Out Cantilever Racking isn’t just a storage system—it’s an investment in your team’s productivity, your facility’s safety, and your bottom line. With CE, UE, and ISO 9001 certifications, you’re getting a product that meets global quality standards, while our $6,200 starting price makes high-performance storage accessible for businesses of all sizes.

Whether you’re storing steel pipes, plastic pipes, round steel, or long wooden materials, Herochu’s Crank-Out Cantilever Racking is the smart, customizable solution your workshop needs. Contact our team today to discuss your requirements and get a tailored quote—let’s build a storage system that works as hard as you do.
