CE-Certified Pneumatic Swing Arm Manipulator for Precise Manufacturing

Meta Description: Explore the flexibility of a CE-Certified Pneumatic Swing Arm Manipulator. Ideal for complex handling tasks, these industrial manipulators offer precision control for automotive, component, and assembly line applications.

In the world of industrial manufacturing, not all handling tasks involve simple, flat sheets. Sometimes, operators need to manipulate complex geometries, insert components into confined spaces, or rotate eccentric loads. For these demanding applications, the CE-Certified Pneumatic Swing Arm Manipulator is the tool of choice. Offering unparalleled freedom of movement combined with the strength of pneumatics, these systems bridge the gap between a simple hoist and a fully articulated robot.

The Mechanics of the Swing Arm

Unlike a standard cantilever lifter that primarily moves loads horizontally and vertically, a swing arm manipulator—often referred to as a moment-absorbing industrial manipulator—is designed to handle torque. This allows it to manage loads where the center of gravity is offset or where the part needs to be rotated during the handling process.

These systems can be configured in several ways to suit the workspace:

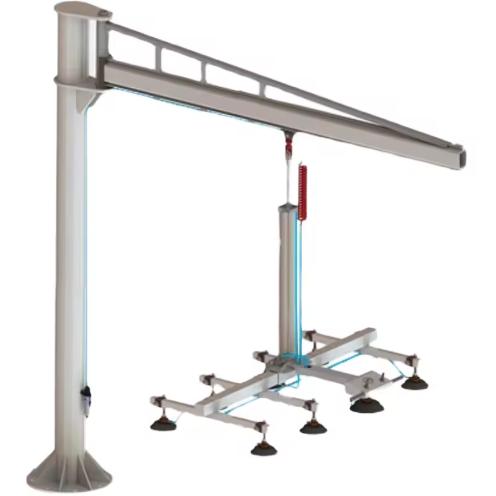

• Pillar Mounted: Fixed to the floor for a stable, high-capacity workstation.

• Suspended: Hung from an overhead structure to clear floor space.

• Mobile Platform: Mounted on a base that can be moved with a forklift, allowing one unit to serve multiple workstations .

This installation flexibility ensures that whether you are working on an automotive assembly line or a aerospace component cell, the manipulator can be positioned exactly where it is needed .

Key Features of a High-Performance Manipulator

When selecting a Pneumatic Swing Arm Manipulator, particularly one that is CE-certified, there are specific performance indicators to consider:

Moment Absorption and Reach

Standard lifters handle weight; swing arm manipulators handle weight and torque. A model like the Movomech Mechspace Pro is engineered to manage loads up to 150kg while absorbing up to 1500 Nm of torque . This capability is essential when the gripper tool needs to rotate a part for assembly. The “reach” of the arm is also a critical factor. With maximum radii often exceeding 4500mm and vertical lifts over 2000mm, these units offer a massive working envelope from a single fixed point .

Customized Gripper Integration

The true versatility of a swing arm manipulator lies in its end-of-arm tooling. Because it serves a wide variety of industries—from foundries to pharmaceuticals—the gripper must be tailored to the task. A reputable CE-Certified Pneumatic Swing Arm Manipulator is designed for seamless integration with bespoke gripper tools. Whether you need clamps for irregular castings, vacuum cups for glass, or forks for coils, the manipulator arm acts as the precise, balanced carrier for the tool.

Pneumatic Variants for Specific Tasks

Not all pneumatic systems function the same way. Depending on the application, you may need one of several pneumatic variants:

• Equilibrated Systems: Designed for handling fixed, known loads where the weight is constant.

• Balancing Systems: Ideal for scenarios where the load weight varies, as the system adjusts to provide a “weightless” feel regardless of the actual mass .

Applications Across Industries

The adaptability of the Pneumatic Swing Arm Manipulator makes it a staple across diverse sectors:

• Automotive Manufacturing: Handling doors, dashboards, and windshields where precise alignment is required to avoid scratching paint or damaging trim.

• Component Assembly: Inserting heavy battery packs or motors into housings where the operator needs to “float” the component to align bolt holes.

• Logistics and Packaging: Transferring heavy or bulky finished goods from the end of a production line into custom packaging, reducing the risk of back injuries.

Safety and Compliance in Critical Applications

In safety-critical applications, the replacement of manual handling is not just an efficiency measure; it is a regulatory requirement. A CE-certified unit guarantees that the machinery meets stringent European safety standards. Features such as brakes on the rotation axis prevent uncontrolled swinging when the arm is stationary. Furthermore, these systems typically operate on filtered, non-lubricated compressed air, ensuring reliable operation in clean environments like food processing or electronics manufacturing .

The intuitive controls of a modern swing arm manipulator mean that operators can master the system in minutes, not days. By combining human cognitive skills with machine power, the CE-Certified Pneumatic Swing Arm Manipulator creates a workstation that is greater than the sum of its parts—delivering precision, safety, and efficiency in one ergonomic package.
