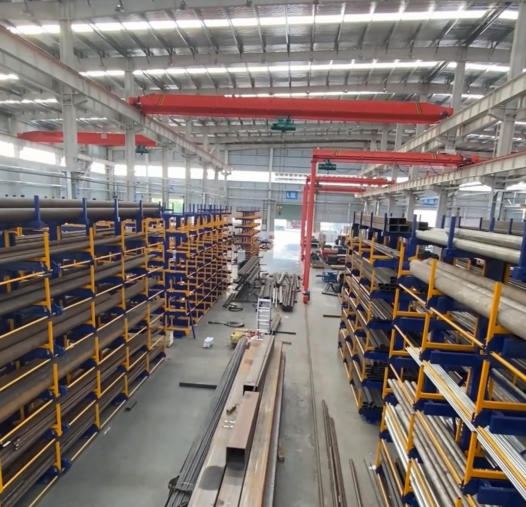

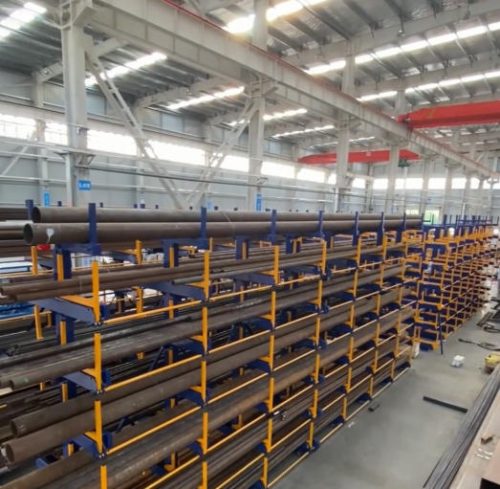

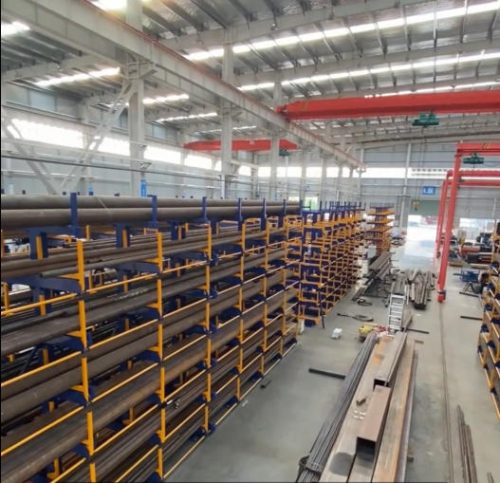

Cantilever-Type Pipe Rack

In industrial environments where space optimization and load capacity are critical, Herochu’s cantilever-type pipe racks redefine material storage. Designed for pipes, cables, sheet metal, and heavy equipment, these modular structures eliminate traditional storage limitations with:

Unmatched Customization: From 6m to 12m lengths (HC-G6053S to HC-G9055D models) and 2-ton to 6-ton per-layer capacity, configurations adapt to your workflow.
Smart Operation: PLC frequency conversion control ensures precision in loading/unloading processes.
Certified Durability: Built to CE/UE/ISO 9001 standards with reinforced orange/blue steel frames.

Category Roll Out Cantilever Racks Tag Cantilever-Type Pipe Rack

Cantilever-Type Pipe Rack

Herochu Cantilever Pipe Rack: The Smart Storage Backbone for Modern Workshops

Engineered for Heavy-Duty Performance | Fully Customizable | CE/ISO 9001 Certified

Why Choose Herochu Cantilever Racks?

Unmatched Customization: From 6m to 12m lengths (HC-G6053S to HC-G9055D models) and 2-ton to 6-ton per-layer capacity, configurations adapt to your workflow.
Smart Operation: PLC frequency conversion control ensures precision in loading/unloading processes.
Certified Durability: Built to CE/UE/ISO 9001 standards with reinforced orange/blue steel frames.

Technical Specifications That Deliver

Model	HC-G6053S	HC-G6053D	HC-G9055S	HC-G9055D	Custom Option
Length	6,000mm	6,000mm	9,000mm	12,000mm	Tailored
Load/Layer	2 tons	3 tons	5 tons	6 tons	Up to 6+ tons
Layers	3+1	4+1	3+1	3+1	Configurable
Total Load	8 tons	25 tons	35 tons	42 tons	Variable

Note: All models feature 550–800mm adjustable arm lengths and 600–800mm interlayer spacing for ergonomic access.

Applications Across Industries

Petrochemical Plants: Safely route insulated pipes and cable trays.
Manufacturing Warehouses: Store extruded materials without bending.
Construction Yards: Organize rebar and structural beams vertically.
Automotive: Optimize space for exhaust systems and chassis components.

Herochu’s Competitive Edge

Backed by Jinan Constant Storage Machinery’s R&D expertise, our racks integrate:

Servo Swing Arms: For automated heavy-load handling.
Gantry Loaders: Reduce manual labor by 60%.
Anti-Corrosion Coatings: Extend lifespan in harsh environments.

Starting at $3,698 – Configure your rack online or consult our engineers for bespoke solutions.

FAQ

Here are some frequently asked questions about our sheet metal racks and pipe storage solutions. We hope you find them helpful!

Q1: Can I request a custom size or color?
Absolutely. We offer complimentary design services and deliver efficient, tailored solutions to meet your specific requirements.

Q2: Are you a manufacturer or a distributor?
We are a direct manufacturer with over 15 years of industry experience and expertise.

Q3: Is there a minimum order quantity?
No. We welcome orders of any size, starting from a single unit.

Q4: How can I get detailed product information?
Click the “Get a Quote” button to receive product images, detailed specifications, and videos. Our team is always ready to assist.

Q5: How do I provide my storage rack requirements?
Simply share the type, dimensions, and quantity of materials you plan to store, along with any other specific needs. We will develop a professional storage solution for you. Alternatively, leave your contact details for a personalized consultation.

Q6: Do you offer automated loading systems or robotic arms?
Yes. We provide loading robotic arms and integrated loading/unloading systems tailored to your laser cutting machine’s table size and material handling method (e.g., board rack, exchange platform, or material warehouse). Contact us with your details for a customized proposal.

Q7: Do you provide on-site installation and debugging?
Yes. Our technicians can travel to your facility for installation and debugging, ensuring successful operation. We have served clients globally, including in the USA, South Korea, Russia, Qatar, Mexico, South Africa, Egypt, and Lebanon.

Q8: How do you ensure product quality?
Our quality assurance includes:

A team of over 40 technical engineers for professional debugging and support.
A dedicated quality control department compliant with ISO9001 standards.
CE certification for all exports.
Rigorous load testing before shipment to ensure structural safety and reliability.

Q9: Where is your factory located?
Our modern 10,000-square-meter manufacturing facility is located in Jiyang Industrial Park, Jinan, Shandong, China.

Q10: How can I evaluate your company’s capabilities?
We offer virtual video factory tours and warmly welcome on-site visits.

Q11: What does your company specialize in?
Jinan Constant Storage Machinery Manufacturing Co., Ltd. is a high-tech enterprise specializing in the R&D, production, sales, installation, and service of intelligent storage solutions. Our product range includes sheet material warehouses, drawer-style shelves, cantilever racks, servo manipulators, gantry loaders, and fully automated handling systems. Supported by a skilled technical team and advanced equipment, we are committed to delivering high-performance storage products and solutions to customers worldwide.
