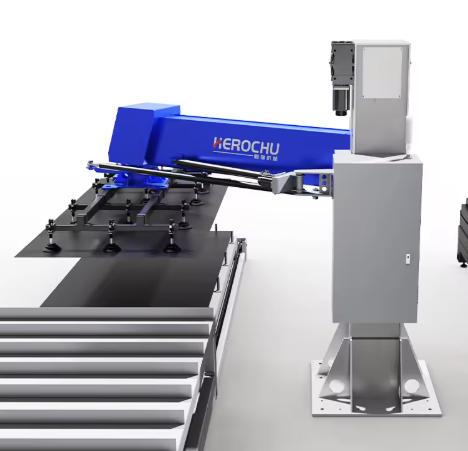

Heavy-Duty Fully Automatic Servo Swing Arm Robot: Material Handling Equipment 300-1000kg Load Capacity for Construction

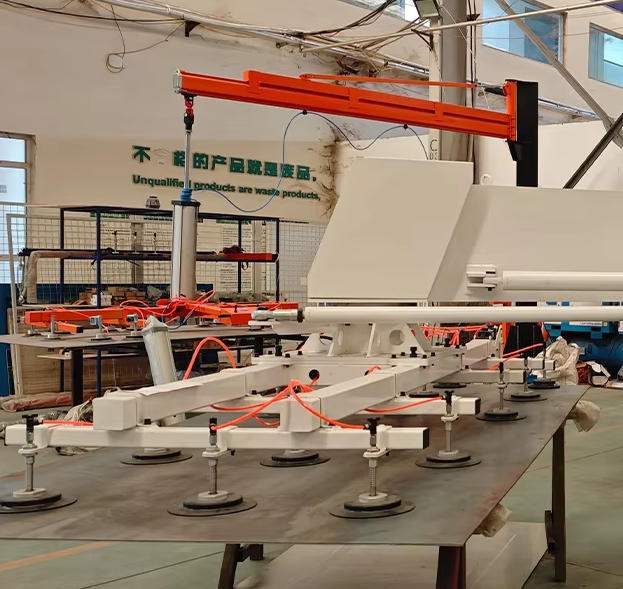

Industrial Robot Used to Assist Handling Palletizing: Automatic Column Robot for Metal Sheet Manipulator

Boosting Production Capacity with the Automatic Servo Cantilever Manipulator

In the modern manufacturing sector, the shift towards Industry 4.0 is driven by the need for efficiency, precision, and the reduction of labor costs. The Industrial Robot Used to Assist Handling Palletizing Automatic Column Robot for Metal Sheet Manipulator represents a pivotal advancement in this transition. This equipment is designed to replace manual loading processes that are not only physically taxing but also inherently variable in terms of speed and accuracy. By deploying a fully automated servo cantilever manipulator, manufacturers can achieve a level of production consistency that human labor simply cannot match, leading to significant cost savings and increased throughput.

Category Swing Arm Servo Manipulator Tag Boosting Production Capacity with the Automatic Servo Cantilever Manipulator

Boosting Production Capacity with the Automatic Servo Cantilever Manipulator

The primary advantage of this Material Handling Equipment lies in its servo-driven architecture. Unlike traditional pneumatic or hydraulic manipulators that rely on manual valve actuation for movement, this system utilizes a servo swing-arm positioning transmission. This allows for precise control over acceleration and deceleration profiles. In a high-volume production environment, such as a laser cutting cell, the speed at which a sheet is loaded onto the machine directly correlates to the machine’s uptime. The servo system allows for rapid cycling—picking a sheet, swinging it over the bed, and placing it with millimeter accuracy—without the “settling time” required by lesser systems to stop the load from swinging. This reduction in cycle time, even by a few seconds per sheet, compounds over a shift to result in substantial gains in daily production capacity.

The integration of the Omron numerical control system elevates this manipulator from a simple lifter to an intelligent processing station. The system supports both manual and automatic operating states, providing versatility for different production runs. In automatic mode, the manipulator can be synchronized with upstream or downstream processes. For instance, it can be programmed to automatically retrieve sheets from a storage rack and feed them into a laser cutter, then retrieve the cut skeleton and move it to a scrap bin, all without human intervention. This “lights-out” manufacturing capability is essential for maximizing the return on investment for expensive laser cutting machinery. The touch screen interface allows operators to input parameters such as sheet dimensions and quantity, and the PLC executes the sequence with high fidelity.

Efficiency is also driven by the machine’s ability to handle a wide range of material specifications without requiring mechanical changeovers. The Sheets handling manipulator for steel plates is capable of processing materials with thicknesses ranging from 1mm to 20mm and weights up to 1000kg. In a traditional manual environment, moving a 1000kg plate would require a crane and a team of workers, involving significant setup time and safety coordination. With this servo manipulator, the change from a thin sheet to a thick plate is seamless. The heavy-load oil-resistant suction cups are designed to adapt to the surface conditions of different metals, and the individual valve control ensures that the grip is optimized for the specific weight and surface area of the workpiece. This flexibility allows a single machine to serve multiple production lines, reducing the need for dedicated handling equipment for different product lines.

The ergonomic benefits of this automation translate directly into financial savings. Manual handling of steel plates is a leading cause of industrial fatigue and injury. By automating this process, manufacturers eliminate the physical strain on workers, reducing absenteeism and the associated costs of worker compensation. The New Heavy-Duty Fully Automatic Servo Swing Arm Robot handles the “dull, dirty, and dangerous” tasks, freeing up human operators to focus on quality control and machine supervision. The simple operation—requiring only the press of a touch button—means that operators do not need extensive training to manage the workflow. This ease of use reduces the learning curve for new employees and ensures that the production line can be staffed flexibly.

Moreover, the precision of the servo system contributes to improved production quality. In precision processing and electronic component assembly, the placement of the material must be exact. Misalignment can lead to scrapped parts and wasted material. The servo swing arm positioning transmission ensures that the plate is placed in the exact same position every time, reducing the defective rate. This repeatability is crucial for automated systems where downstream robots or tools rely on the workpiece being in a specific coordinate space. By minimizing variance, the manipulator ensures that the entire production cell operates smoothly, avoiding the bottlenecks caused by misaligned parts.

The system’s communication capabilities further enhance its efficiency. The touch screen and PLC communicate via network cable, allowing for rapid data exchange and remote monitoring. This connectivity enables the integration of the manipulator into a factory’s central management system, allowing for real-time tracking of production metrics. Managers can monitor the number of sheets handled, the cycle times, and the operational status of the machine from a central dashboard. This data-driven approach allows for predictive maintenance and optimized scheduling, ensuring that the equipment is always available when needed. The combination of high-speed servo actuation, intelligent control, and robust connectivity makes this manipulator a cornerstone of efficient, modern material handling.

FAQ

Here are some frequently asked questions about our sheet metal racks and pipe storage solutions. We hope you find them helpful!

Q1: Can I request a custom size or color?
Absolutely. We offer complimentary design services and deliver efficient, tailored solutions to meet your specific requirements.

Q2: Are you a manufacturer or a distributor?
We are a direct manufacturer with over 15 years of industry experience and expertise.

Q3: Is there a minimum order quantity?
No. We welcome orders of any size, starting from a single unit.

Q4: How can I get detailed product information?
Click the “Get a Quote” button to receive product images, detailed specifications, and videos. Our team is always ready to assist.

Q5: How do I provide my storage rack requirements?
Simply share the type, dimensions, and quantity of materials you plan to store, along with any other specific needs. We will develop a professional storage solution for you. Alternatively, leave your contact details for a personalized consultation.

Q6: Do you offer automated loading systems or robotic arms?
Yes. We provide loading robotic arms and integrated loading/unloading systems tailored to your laser cutting machine’s table size and material handling method (e.g., board rack, exchange platform, or material warehouse). Contact us with your details for a customized proposal.

Q7: Do you provide on-site installation and debugging?
Yes. Our technicians can travel to your facility for installation and debugging, ensuring successful operation. We have served clients globally, including in the USA, South Korea, Russia, Qatar, Mexico, South Africa, Egypt, and Lebanon.

Q8: How do you ensure product quality?
Our quality assurance includes:

A team of over 40 technical engineers for professional debugging and support.
A dedicated quality control department compliant with ISO9001 standards.
CE certification for all exports.
Rigorous load testing before shipment to ensure structural safety and reliability.

Q9: Where is your factory located?
Our modern 10,000-square-meter manufacturing facility is located in Jiyang Industrial Park, Jinan, Shandong, China.

Q10: How can I evaluate your company’s capabilities?
We offer virtual video factory tours and warmly welcome on-site visits.

Q11: What does your company specialize in?
Jinan Constant Storage Machinery Manufacturing Co., Ltd. is a high-tech enterprise specializing in the R&D, production, sales, installation, and service of intelligent storage solutions. Our product range includes sheet material warehouses, drawer-style shelves, cantilever racks, servo manipulators, gantry loaders, and fully automated handling systems. Supported by a skilled technical team and advanced equipment, we are committed to delivering high-performance storage products and solutions to customers worldwide.
