Boost Laser Cutting Efficiency with a Heavy-Duty 4-Axis Rotary Loading Robot for Fiber Laser Cutter
In high-volume sheet metal fabrication, the bottleneck isn’t always the laser—it’s often the loading and unloading process. Manual handling of heavy plates slows cycle times, risks surface damage, and introduces inconsistency into what should be a precision-driven workflow. The solution? A Heavy-Duty 4-Axis Rotary Loading Robot for Fiber Laser Cutter—an engineered automation system that transforms raw material logistics into a seamless, high-speed operation.
Boost Laser Cutting Efficiency with a Heavy-Duty 4-Axis Rotary Loading Robot for Fiber Laser Cutter
Precision Engineering for Demanding Applications
- Axis 1 (Base Rotation): Enables 360° swivel between material racks, the laser bed, and scrap bins.
- Axis 2 (Elbow Lift): Provides vertical reach up to 2,700 mm, accessing multiple pallet levels or stacked sheet towers.
- Axis 3 (Wrist Tilt): Adjusts gripper angle for optimal approach, preventing collisions with machine guards or fixtures.
- Axis 4 (End-Actuator Rotation): Rotates the suction head or clamp to align sheets precisely with the cutting nest—critical for nested layouts or mixed-material jobs.
Built for Heavy Loads, Designed for Reliability
- The 100 kg model excels with lightweight materials like 0.5–2 mm stainless or aluminum sheets, enabling rapid changeovers in high-mix job shops.

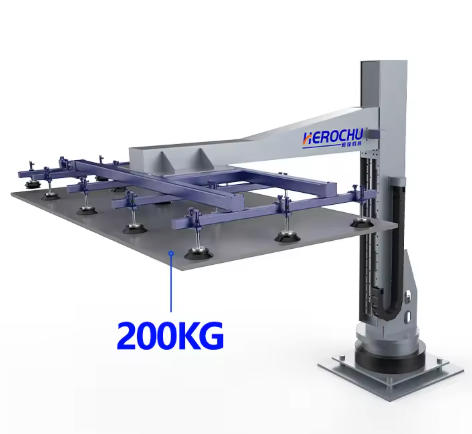

- The 200 kg version handles standard industrial gauges (up to 10 mm mild steel), making it the go-to for general fabrication.
- The 300 kg heavy-duty variant confidently manages thick plates (12–25 mm+) used in construction, shipbuilding, or heavy machinery—without vibration or drift.
Surface Protection and Material Versatility
24/7 Operation with Minimal Downtime
- Direct communication with fiber laser CNC controllers (via Modbus, Profinet, or Ethernet/IP)
- Optional barcode scanners to verify material grade before loading
- Safety light curtains and emergency stops compliant with ISO 13855
Why Fabricators Choose This System
- 42% increase in daily output
- Zero surface damage complaints in six months
- Payback period under 14 months
FAQ
Here are some frequently asked questions about our sheet metal racks and pipe storage solutions. We hope you find them helpful!
Q1: Can I request a custom size or color?
Absolutely. We offer complimentary design services and deliver efficient, tailored solutions to meet your specific requirements.
Q2: Are you a manufacturer or a distributor?
We are a direct manufacturer with over 15 years of industry experience and expertise.
Q3: Is there a minimum order quantity?
No. We welcome orders of any size, starting from a single unit.
Q4: How can I get detailed product information?
Click the “Get a Quote” button to receive product images, detailed specifications, and videos. Our team is always ready to assist.
Q5: How do I provide my storage rack requirements?
Simply share the type, dimensions, and quantity of materials you plan to store, along with any other specific needs. We will develop a professional storage solution for you. Alternatively, leave your contact details for a personalized consultation.
Q6: Do you offer automated loading systems or robotic arms?
Yes. We provide loading robotic arms and integrated loading/unloading systems tailored to your laser cutting machine’s table size and material handling method (e.g., board rack, exchange platform, or material warehouse). Contact us with your details for a customized proposal.
Q7: Do you provide on-site installation and debugging?
Yes. Our technicians can travel to your facility for installation and debugging, ensuring successful operation. We have served clients globally, including in the USA, South Korea, Russia, Qatar, Mexico, South Africa, Egypt, and Lebanon.
Q8: How do you ensure product quality?
Our quality assurance includes:
A team of over 40 technical engineers for professional debugging and support.
A dedicated quality control department compliant with ISO9001 standards.
CE certification for all exports.
Rigorous load testing before shipment to ensure structural safety and reliability.
Q9: Where is your factory located?
Our modern 10,000-square-meter manufacturing facility is located in Jiyang Industrial Park, Jinan, Shandong, China.
Q10: How can I evaluate your company’s capabilities?
We offer virtual video factory tours and warmly welcome on-site visits.
Q11: What does your company specialize in?
Jinan Constant Storage Machinery Manufacturing Co., Ltd. is a high-tech enterprise specializing in the R&D, production, sales, installation, and service of intelligent storage solutions. Our product range includes sheet material warehouses, drawer-style shelves, cantilever racks, servo manipulators, gantry loaders, and fully automated handling systems. Supported by a skilled technical team and advanced equipment, we are committed to delivering high-performance storage products and solutions to customers worldwide.
