Manual loading and unloading of laser cutting machines is a primary bottleneck in manufacturing workflows. It requires constant operator oversight, leading to inconsistent cycle times, increased labor costs, and unnecessary machine idle time. Even the most advanced laser cutters cannot operate at peak efficiency if they wait for manual material handling. Herochu’s Automation Systems resolve this by enabling fully automated production: the system transports the correct metal sheet to the laser table at the precise moment, then removes finished parts post-cutting and stores them in designated locations—all without human intervention. This not only maximizes machine utilization but also frees operators to focus on higher-value tasks, such as quality control or process optimization.

Category Automation Sheet Metal Material Warehouse Tag Automation systems for laser cutting machines

Automation systems for laser cutting machines

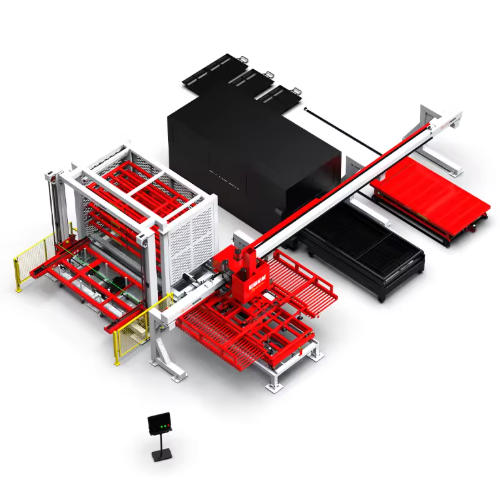

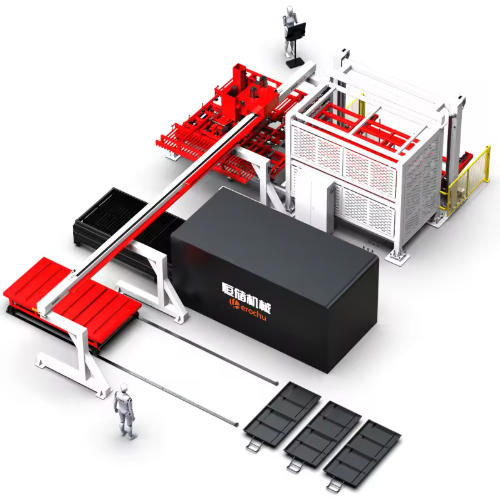

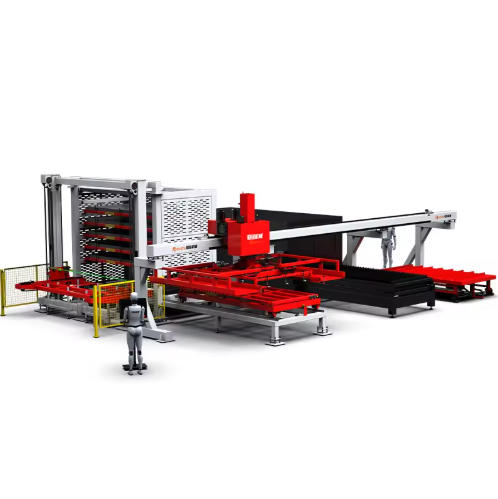

Automatic composite loading and unloading manipulator+plate storage warehouse (side)

Performance Profile
The system consists of a set of three-dimensional storage warehouse, a set of bilateral gantry truss, a set of loading and unloading composite truss manipulator, a finished material truck, PLC control system,and a laser cutting machine to form a sheet metal automatic production unit， can effectively guarantee product quality,improve production efficiency, reduce production costs.

Specification

STANDARD	HC-R3015-500	HC-R3015-750	HC-R3015-1000	HC-R4020-500	HC-R4020-750
Thickness of feeding plate	8mm	12mm	20mm	8mm	12mm
Maximum feeding width	3000*1500mm			4000*2000mm
Minimum feeding width	1250*1000mm			1250*1000mm
Maximum plate weight	300kg	500kg	1000kg	300kg	500kg
Number of suction cups	15	15	118	15	15
Suction cup diameter	150mm	200mm	250mm	150mm	200mm
Power mode	Electric

Herochu Automation Systems for Laser Cutting Machines: Elevate Operational Efficiency, Starting at $8,900

In modern manufacturing, laser cutting machines have evolved to deliver exceptional performance—handling materials from 0.5mm to 50mm thickness (including black steel, stainless steel, and aluminum) with fiber laser sources up to 40kW and advanced linear motor technology. These machines promise rapid, high-precision cutting, yet their full productivity potential remains untapped without a critical component: automated loading and unloading. Herochu’s Automation Systems for Laser Cutting Machines address this gap, eliminating manual intervention, reducing downtime, and aligning with global quality standards. CE, UE, and ISO 9001 certified, these systems are customizable to your workshop’s unique layout and production needs—starting at just $8,900.

The Case for Laser Cutting Automation: Overcoming Productivity Barriers

Tailored Configurations: Scalable Solutions for Every Workshop

Herochu recognizes that no two manufacturing facilities operate the same way. To meet diverse needs, we offer three core automation configurations—all designed for the industry’s most popular 3m x 1.5m sheet size, with options to adapt to larger formats (3015/4015/4020/6015/6020/6025mm):

Single Laser Cutter Automation: Ideal for small to mid-sized workshops, this system provides automated loading and unloading for one laser cutting machine. It streamlines material flow, reduces operator fatigue, and cuts downtime associated with manual sheet changes.

Single Laser + Automated Storage Integration: For facilities seeking enhanced material accessibility, this configuration pairs automated loading/unloading with an integrated storage system. Operators gain access to a range of metal sheets in under 3 minutes, eliminating the need to manually retrieve materials from off-site storage. Cut parts can also be returned to the storage system, creating a closed-loop workflow.

Multi-Laser + Automated Storage Integration: Designed for high-volume production environments, this solution supports multiple laser cutting machines with a centralized automated storage and handling system. It ensures synchronized material delivery across all machines, enabling 24/7 operation and scaling with your workshop’s growth.

Each configuration is built on a modular framework, allowing for future expansion—whether you add more laser cutters, increase storage capacity, or adjust to larger sheet sizes.

Technical Specifications: Built for Reliability and Speed

Herochu’s Automation Systems are engineered for durability, precision, and speed—critical for maintaining consistent production cycles. Key technical features include:

Sheet Size Compatibility: Supports standard and large formats (3015/4015/4020/6015/6020/6025mm) to match your laser cutter’s table dimensions.

Storage Capacity: 8–13 floors with a load capacity of 3T or 5T per layer, ensuring ample space for raw materials and finished parts.

Movement & Transmission: Linear guide rails paired with chain drive technology for smooth, accurate material transport. This combination minimizes vibration, reduces wear, and ensures reliable operation even in high-cycle environments.

Speed: Vertical lifting speed of 9m/min and inlet/outlet speed of 12m/min—fast enough to keep pace with high-power laser cutters and avoid bottlenecks.

Plate Support: Optional plate support configurations to accommodate delicate or heavy materials, preventing damage during transport and storage.

Quality Assurance: Compliance, Testing, and Expertise

At Herochu, product quality is non-negotiable. We maintain rigorous standards to ensure our Automation Systems meet global regulations and perform reliably in demanding manufacturing environments:

Certifications: CE, UE, and ISO 9001 certifications guarantee compliance with international safety, environmental, and quality benchmarks—facilitating seamless export to global markets.

Pre-Shipment Testing: Every system undergoes comprehensive load testing before leaving our 10,000-square-meter factory in Jinan, Shandong, China. This ensures structural stability, safety, and compatibility with your laser cutting equipment.

Engineering Support: Our team of over 40 technical engineers and dedicated quality inspection department works to resolve any concerns. Professional mechanical engineers conduct on-site debugging and provide ongoing support to keep your system running optimally.

Procurement and Implementation: A Partner-Centric Approach

Investing in automation should be straightforward. Herochu simplifies the procurement process to ensure you get the right solution for your workshop:

Customized Quotations: Contact our technical team with your workshop parameters (e.g., laser cutter model, sheet size, production volume), and we will design a tailored solution with a detailed quotation. If you need guidance, leave your contact information (WhatsApp, WeChat, or email), and our sales team will assist you.

Shelf and Storage Design: To specify the right storage solution, share details such as material type, sheet dimensions, number of shelves, and any special requirements. Our team will develop a professional storage layout that integrates seamlessly with your automation system.

Loading/Unloading Selection: Whether you need a robotic arm or an integrated system depends on your laser cutter’s table size and preferred loading method (board rack, exchange platform, or material warehouse). Our experts will help you determine the best fit—just provide your requirements or contact details.

On-Site Installation & Debugging: We offer end-to-end implementation support. Our professional team travels to your factory (with experience in South Africa, the U.S., Russia, South Korea, Qatar, Egypt, Lebanon, Mexico, and beyond) to install, test, and debug the system until it achieves successful trial operation.

Why Herochu? A Trusted Partner for Manufacturing Excellence

Herochu’s Automation Systems for Laser Cutting Machines are more than just equipment—they are a strategic investment in your workshop’s efficiency and scalability. By reducing labor requirements, minimizing downtime, and ensuring compliance with global standards, these systems deliver a rapid return on investment. Whether you’re a small workshop looking to streamline operations or a large manufacturer aiming to scale production, Herochu provides the flexibility, quality, and support you need to succeed.

Ready to unlock your laser cutting machines’ full potential? Contact Herochu today to discuss your automation needs and receive a customized solution.

FAQ

Here are some frequently asked questions about our sheet metal racks and pipe storage solutions. We hope you find them helpful!

Q1: Can I request a custom size or color?
Absolutely. We offer complimentary design services and deliver efficient, tailored solutions to meet your specific requirements.

Q2: Are you a manufacturer or a distributor?
We are a direct manufacturer with over 15 years of industry experience and expertise.

Q3: Is there a minimum order quantity?
No. We welcome orders of any size, starting from a single unit.

Q4: How can I get detailed product information?
Click the “Get a Quote” button to receive product images, detailed specifications, and videos. Our team is always ready to assist.

Q5: How do I provide my storage rack requirements?
Simply share the type, dimensions, and quantity of materials you plan to store, along with any other specific needs. We will develop a professional storage solution for you. Alternatively, leave your contact details for a personalized consultation.

Q6: Do you offer automated loading systems or robotic arms?
Yes. We provide loading robotic arms and integrated loading/unloading systems tailored to your laser cutting machine’s table size and material handling method (e.g., board rack, exchange platform, or material warehouse). Contact us with your details for a customized proposal.

Q7: Do you provide on-site installation and debugging?
Yes. Our technicians can travel to your facility for installation and debugging, ensuring successful operation. We have served clients globally, including in the USA, South Korea, Russia, Qatar, Mexico, South Africa, Egypt, and Lebanon.

Q8: How do you ensure product quality?
Our quality assurance includes:

A team of over 40 technical engineers for professional debugging and support.
A dedicated quality control department compliant with ISO9001 standards.
CE certification for all exports.
Rigorous load testing before shipment to ensure structural safety and reliability.

Q9: Where is your factory located?
Our modern 10,000-square-meter manufacturing facility is located in Jiyang Industrial Park, Jinan, Shandong, China.

Q10: How can I evaluate your company’s capabilities?
We offer virtual video factory tours and warmly welcome on-site visits.

Q11: What does your company specialize in?
Jinan Constant Storage Machinery Manufacturing Co., Ltd. is a high-tech enterprise specializing in the R&D, production, sales, installation, and service of intelligent storage solutions. Our product range includes sheet material warehouses, drawer-style shelves, cantilever racks, servo manipulators, gantry loaders, and fully automated handling systems. Supported by a skilled technical team and advanced equipment, we are committed to delivering high-performance storage products and solutions to customers worldwide.
