Automation Storage Solutions for Sheet Metal Fabrication
Unlock the next level of sheet-metal productivity with Herochu’s fully automated storage system—designed for fabricators who demand speed, accuracy, and maximum floor-space ROI. From single-part retrieval to full-kit staging, every motion is orchestrated by an intelligent numerical control platform that slashes handling time and eliminates human error. CE, UE, and ISO 9001 certifications guarantee world-class safety and reliability, while a starting customization price of only $10,000 makes advanced automation attainable for workshops of any size.
Automation Storage Solutions for Sheet Metal Fabrication
Precision-engineered in Guangdong, China
No two plants are identical. Our engineers visit your site, map your workflow, then configure rack heights, aisle widths, and load capacities to fit existing laser, punch, or press-brake cells. Whether you run a 200 m² job shop or a 20,000 m² production hall, Herochu scales seamlessly—so you invest in the capacity you need today and expand tomorrow without costly retrofits.

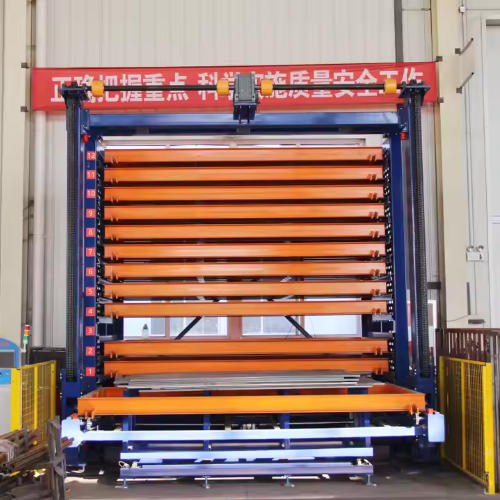

Conventional shelving wastes cubic meters of overhead air. Herochu’s vertical design exploits every centimeter: twelve independently driven levels store up to 4 tonnes of sheet, blank, or formed part per bay. Parts rest on reinforced, anti-scratch rails that keep surfaces pristine and ready for downstream processing. The result? Up to 300 % more storage density in the same footprint, freeing floor space for additional machines or value-added operations.
A high-power servo motor paired with original imported linear guide rails accelerates lift shuttles to 60 m/min with ±0.5 mm repeatability. Simply tap the 10-inch HMI, and the system retrieves, lifts, rotates, and presents the exact sheet to the operator or robotic arm in under 30 seconds. Dual-mode programming allows full automation during lights-out shifts, then switches to manual jog mode for quick change-overs or maintenance—no laptop required.
The intuitive touch screen displays real-time inventory thumbnails, cut lists, and nesting graphics. New operators master basic functions in minutes; advanced users create job queues, simulate cycle times, and export utilization reports to ERP/MRP systems via Ethernet. On-screen diagnostics highlight faults with color-coded icons, enabling technicians to pinpoint sensors or drives without climbing the rack.
• Voltage / Power: 380 V, 2.2 kW servo drive
• Max payload per shelf: 2,000 kg
• Overall footprint: 3.26 × 2 × 3.28 m (L × W × H) per module
• Weight: 4,000 kg including rack and shuttle
• Warranty: 12 months with remote support
• Compliance: CE, UE, ISO 9001
• Core component: Industrial-grade PLC with 10-year spare-parts availability
• Packaging: Single-item export crate, moisture-proof, forklift-ready
Herochu is manufactured by Ji’nan Constant Storage Machinery Manufacturing Co., Ltd.—a vertically integrated OEM with 18 years of experience in laser-cutting sheet-metal storage, drawer-type racks, telescopic cantilever systems, and fully automated material warehouses. From R&D to installation and lifetime service, one partner covers your entire project.
Customers report:
• 45 % reduction in forklift travel distance
• 30 % faster laser cutting throughput
• 70 % fewer scratches and rework incidents
• 25 % lower labor cost per processed sheet
Our bilingual technicians supervise mechanical assembly, PLC commissioning, and operator training within 5–7 working days. Remote diagnostics via VPN minimize downtime, and a European spare-parts hub guarantees overnight shipment of critical components. Optional annual service contracts include preventive maintenance, software updates, and rack recalibration.
Send us your workshop drawings and inventory list; our application team will return a 3D layout, cycle-time simulation, and ROI calculation within 48 hours. Budgets start at $10,000 for a single-bay starter system and scale linearly as you add height, depth, or shuttle modules.
FAQ
Here are some frequently asked questions about our sheet metal racks and pipe storage solutions. We hope you find them helpful!
Q1: Can I request a custom size or color?
Absolutely. We offer complimentary design services and deliver efficient, tailored solutions to meet your specific requirements.
Q2: Are you a manufacturer or a distributor?
We are a direct manufacturer with over 15 years of industry experience and expertise.
Q3: Is there a minimum order quantity?
No. We welcome orders of any size, starting from a single unit.
Q4: How can I get detailed product information?
Click the “Get a Quote” button to receive product images, detailed specifications, and videos. Our team is always ready to assist.
Q5: How do I provide my storage rack requirements?
Simply share the type, dimensions, and quantity of materials you plan to store, along with any other specific needs. We will develop a professional storage solution for you. Alternatively, leave your contact details for a personalized consultation.
Q6: Do you offer automated loading systems or robotic arms?
Yes. We provide loading robotic arms and integrated loading/unloading systems tailored to your laser cutting machine’s table size and material handling method (e.g., board rack, exchange platform, or material warehouse). Contact us with your details for a customized proposal.
Q7: Do you provide on-site installation and debugging?
Yes. Our technicians can travel to your facility for installation and debugging, ensuring successful operation. We have served clients globally, including in the USA, South Korea, Russia, Qatar, Mexico, South Africa, Egypt, and Lebanon.
Q8: How do you ensure product quality?
Our quality assurance includes:
A team of over 40 technical engineers for professional debugging and support.
A dedicated quality control department compliant with ISO9001 standards.
CE certification for all exports.
Rigorous load testing before shipment to ensure structural safety and reliability.
Q9: Where is your factory located?
Our modern 10,000-square-meter manufacturing facility is located in Jiyang Industrial Park, Jinan, Shandong, China.
Q10: How can I evaluate your company’s capabilities?
We offer virtual video factory tours and warmly welcome on-site visits.
Q11: What does your company specialize in?
Jinan Constant Storage Machinery Manufacturing Co., Ltd. is a high-tech enterprise specializing in the R&D, production, sales, installation, and service of intelligent storage solutions. Our product range includes sheet material warehouses, drawer-style shelves, cantilever racks, servo manipulators, gantry loaders, and fully automated handling systems. Supported by a skilled technical team and advanced equipment, we are committed to delivering high-performance storage products and solutions to customers worldwide.
Customer visit
Herochu has always been adhering to the market-centric approach to meet customer requirements to the maximum extent, and the business philosophy of “creating brands with heart and gaining reputation with sincerity”. It provides customers with high-quality products and services with rigorous military quality, professionalism, and excellence, and has won unanimous praise in the Chinese aerospace, Chinese weapons, Chinese railways, automobile manufacturing, engineering machinery, non-ferrous metal titanium alloy and other industries.
