Automatic warehouses for sheet metal storage

In modern manufacturing, efficient sheet metal storage and handling are critical for productivity and safety. Our Automatic Warehouse for Sheet Metal Storage is a cutting-edge solution designed to optimize material flow, reduce labor costs, and enhance operational efficiency. This fully automated system integrates 3D storage, robotic handling, and intelligent control, making it ideal for industries requiring high-speed, high-precision sheet metal processing.

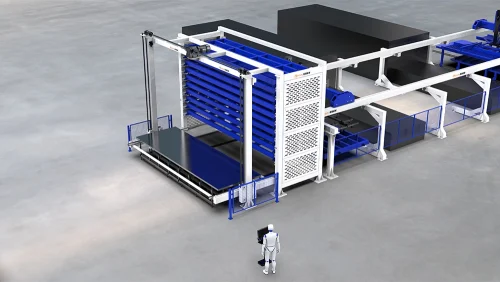

System Overview

The automated warehouse system consists of:

• Three-dimensional storage warehouse – Maximizes vertical space for high-density sheet metal storage.

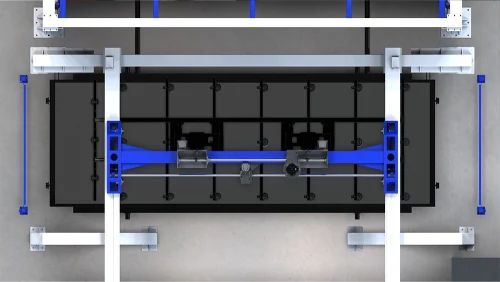

• Bilateral gantry truss – Ensures stable and precise movement of materials.

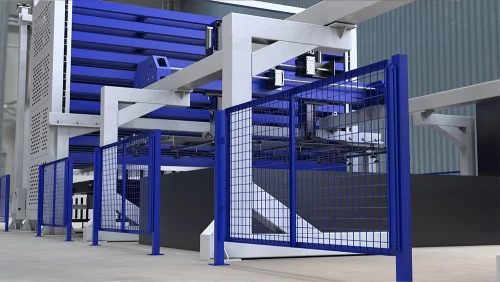

• Loading & unloading truss manipulators – Equipped with vacuum suction cups for secure sheet handling.

• Double-layer finished material truck – Facilitates smooth material transfer between storage and production.

• PLC control system – Provides full automation with real-time monitoring and adjustments.

• Laser cutting machine integration – Seamlessly connects storage with automated production.

Key Features & Benefits

1. Intelligent Control & Easy Operation

• Touchscreen & Remote Control – Switch between automatic and manual feeding modes via an intuitive touchscreen interface.

• Laser Machine Integration – Operators can select which laser machine receives materials using a nearby control box.

• Real-Time Monitoring – All settings and adjustments can be made directly on the screen for quick troubleshooting.

2. High-Speed & Precision Handling

• Pneumatic Rotating Manipulator – The sheet metal can be rotated 90° for both transverse and longitudinal feeding.

• Variable Frequency Motor Drive – Ensures fast movement (12m/min inlet/outlet speed, 9m/min lifting speed) and high repeat positioning accuracy.

• Linear Guide Rail + Chain Drive – Provides smooth, low-friction movement for long-term reliability.

3. Secure & Adjustable Vacuum Suction System

• Premium Vacuum Suction Cups – Made from high-quality brand materials for safe and reliable gripping.

• Adjustable Suction Cup Positions – Each cup can be repositioned within a certain range to accommodate different sheet sizes.

• Independent Control – Each suction cup has its own switch, allowing selective activation based on sheet dimensions.

4. Space-Saving & High-Capacity Storage

• Multi-Layer Design (8-13 floors) – Optimizes vertical storage for 3T/5T per layer, with a total capacity of dozens of tons.

• Supports Various Sheet Sizes – Compatible with 3015/4015/4020/6015/6020/6025mm sheets.

5. Enhanced Safety & Reduced Labor Costs

• Minimizes Manual Handling – Reduces operator fatigue and potential workplace injuries.

• Low Maintenance & High Durability – Simple structure with minimal wear parts ensures low upkeep costs.

Applications

Our Automatic Sheet Metal Warehouse is perfect for:
✔ Metal fabrication shops
✔ Automotive & aerospace industries
✔ Machinery & equipment manufacturing
✔ Construction & architectural metalwork
✔ Electronics & appliance production

Why Choose Our System?

✅ Fully Automated – Reduces human intervention and errors.
✅ High-Speed Operation – Boosts production efficiency.
✅ Customizable Storage – Adapts to various sheet sizes and weights.
✅ Energy-Efficient – Chain-driven system minimizes power consumption.
✅ Long Service Life – Built with industrial-grade materials for durability.

Conclusion

Upgrade your sheet metal storage and handling with our Automated Warehouse System – the smart choice for speed, precision, and safety. Whether you’re running a small workshop or a large-scale production facility, this system ensures seamless material flow, reduced downtime, and higher profitability.
