Automatic Twin-Tower Sheet Metal Storage System

Meta Description: Explore the engineering behind the Automatic Twin-Tower Sheet Metal Storage System. Learn how dual-column design doubles capacity, improves ergonomics, and secures inventory in under 300 square feet.

When floor space is the most expensive asset in the building, the only way to grow is up. For fabricators dealing with high volumes of plate, the evolution from single-tower solutions to an Automatic Twin-Tower Sheet Metal Storage System represents a leap in volumetric efficiency. This configuration, featuring two storage columns serviced by a centralized lifting mechanism, solves the paradox of needing more material close at hand without building an expensive addition to the plant.

The Mechanics of Dual-Column Storage

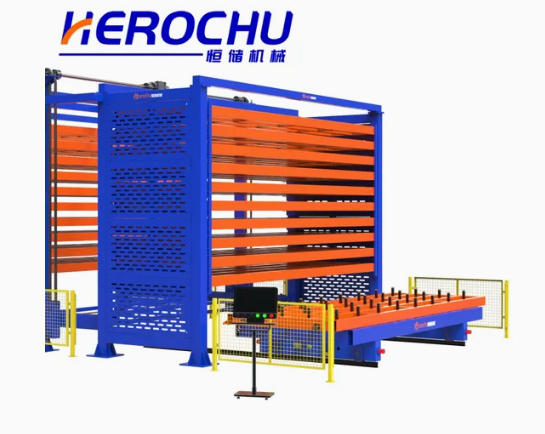

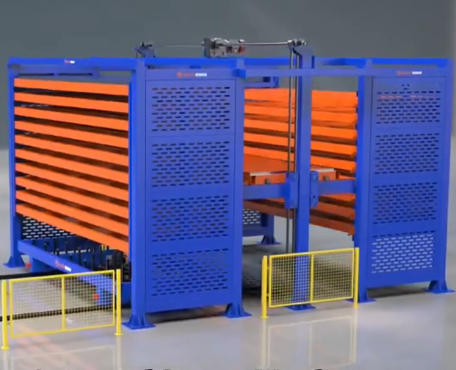

The twin-tower system operates on a simple premise: utilize a single elevator to service two opposing racks. Unlike stacking two independent towers side-by-side (which requires redundant aisles and mechanisms), the twin system integrates the lift between the columns . Shelves are extracted from either side and brought to the operator at a ground-level access point.

This design is particularly effective for automated sheet metal, long bars, heavy and untypical goods storage. Because the lift delivers shelves directly to the operator, the system accommodates not just flat sheets, but also long bars stored in cassettes within the same footprint. The ability to handle untypical goods—such as pre-formed panels, frames, or plastic sheets—without reconfiguring the entire warehouse adds a layer of flexibility that static racking cannot match.

Capacity Metrics That Matter

Let’s look at the hard numbers. A standard dual-tower configuration can store up to 68 positions, with each position holding up to 6,600 lbs . In total, this allows for over 290,000 lbs of inventory to be stored in a footprint of roughly 280 square feet . To store that volume in traditional cantilever racks, you would need wide aisles for forklift maneuverability, eating up thousands of square feet of expensive shop floor.

Furthermore, the load capacity per layer in heavy-duty systems can be customized to 3 or 5 tons, depending on the material handled . The mode of movement relies on linear guides and chain drives, providing vertical lifting speeds of 9m/min and inlet/outlet speeds of 12m/min. This ensures that even as density increases, access time remains consistently fast.

Ergonomic and Safety Advantages

The safety benefits of a twin-tower system cannot be overstated. Manual handling of heavy sheet metal involves significant risk—strains from lifting, crush hazards from moving bundles with forklifts, and laceration risks from sharp edges. By automating the retrieval process, the need for certified forklift operators to handle raw stock is virtually eliminated .

In a double-tower configuration, access points can be located on both sides of the system. This makes loading and unloading bulky items significantly more convenient and ergonomic . Instead of forcing a forklift to navigate a tight aisle to place a long plate, the material can be staged on the opposite side, directly in line with receiving. This bi-directional access streamworks the flow of goods from truck to storage to production.

Protection of High-Value Inventory

Sheet metal is susceptible to damage. A scratched surface on a stainless steel sheet destined for a food service application can render the entire piece scrap. In traditional storage, sheets rub against each other during extraction, or are dented by forklift tines.
Automated twin-tower systems house materials in dedicated trays or cartridges. The precision of the automated retrieval eliminates contact damage. For high-spec industries like aerospace or defense, where surface integrity is critical, this protection provides a rapid return on investment by reducing scrap rates .

Integration with Existing Ecosystems

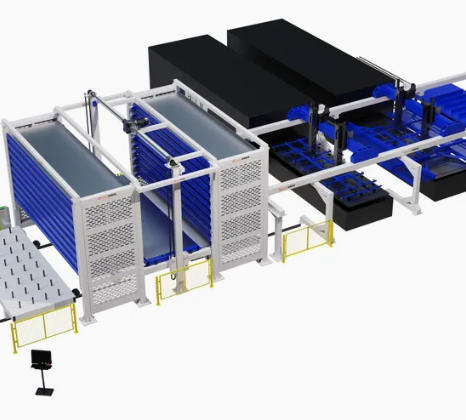

A modern twin-tower system is not an island. It is designed to integrate with your internal ERP or WMS system. Real-time control of storage operations, deliveries, and inventory means that cycle counting becomes a historical artifact . The system knows exactly what is in each location. Furthermore, it can act as a buffer for downstream equipment. Whether feeding a fiber laser, a water-jet cutter, or a press brake, the twin-tower system can be sequenced to deliver materials in the order of production, acting as the physical backbone of the smart factory.
