Customized sheet metal racks with CE Certification china manufacturer

Automatic sheet metal storage system

Sheet metal is the lifeblood of industries like automotive, aerospace, HVAC, and construction—but its bulky size and sensitivity to damage make it hard to manage. Herochu’s Automatic Sheet Metal Storage System reimagines sheet metal management by combining robust engineering with intelligent controls, turning disorganized storage into a streamlined, cost-saving asset. Whether you’re storing 3015mm aluminum sheets for HVAC ducts or 6025mm steel plates for automotive parts, this system adapts to your workflow, not the other way around.

Category Automated Storage Systems Tag Automatic sheet metal storage system

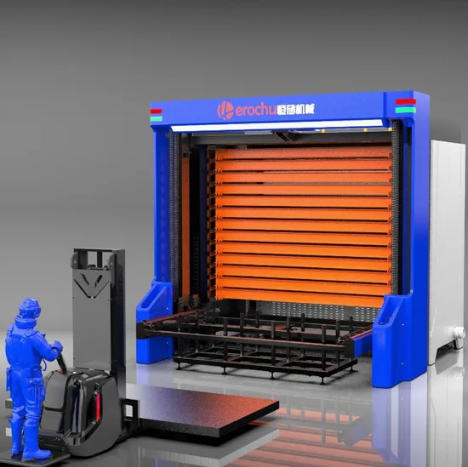

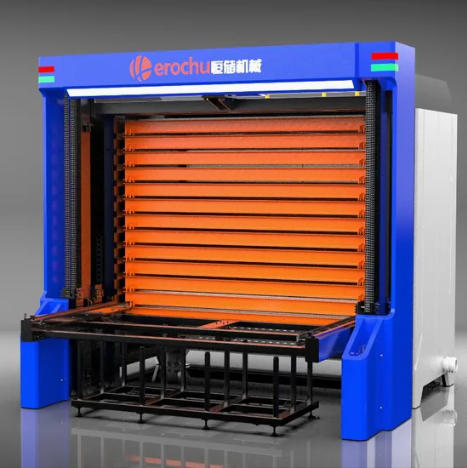

Automatic sheet metal storage system

Herochu Automatic Sheet Metal Storage System: Intelligent, Certified Solutions for Streamlined Manufacturing

In modern sheet metal fabrication—where precision, speed, and space efficiency define success—traditional storage methods fall short. Piling metal sheets on the floor risks scratches, dents, or rust; manual retrieval wastes hours of labor; and disorganized inventory leads to production delays or material waste. Herochu’s Automatic Sheet Metal Storage System eliminates these pain points with a fully integrated, PLC-controlled solution designed to centralize storage, automate material flow, and seamlessly connect to your production line. Backed by CE, UE, and ISO 9001 certifications, this system transforms how you manage raw materials and finished products—all customizable to your workshop’s unique needs, starting at just $19,998.

Why Herochu’s Automatic Sheet Metal Storage System? The Future of Fabrication Efficiency

1. Uncompromising Durability: Built for Heavy-Duty Industrial Use

Every component of Herochu’s Automatic Sheet Metal Storage System is engineered to withstand the rigors of daily fabrication. The system’s frame and storage units are constructed from high-grade steel, chosen for its strength, corrosion resistance, and long service life—critical for supporting heavy sheet metal loads. With a per-layer load capacity of 3T or 5T, it handles even thick, heavy sheets (from thin gauge aluminum to thick steel plates) without bending or structural strain.

The system’s movement relies on a linear guide rail + chain design—a combination that ensures smooth, stable operation even under full load. Unlike flimsy roller systems that jam or wear out quickly, Herochu’s linear guides reduce friction, minimizing maintenance needs and extending the system’s lifespan. The chain drive transmission adds another layer of reliability: it delivers consistent power to move storage units, ensuring precise positioning every time—no slipping, no misalignment, and no costly downtime.

To meet global safety and quality standards, every system undergoes rigorous testing before delivery, earning CE, UE, and ISO 9001 certifications. This isn’t just a storage unit—it’s a long-term investment in your workshop’s efficiency and reliability.

2. Fully Customizable: Designed Around Your Workshop’s Needs

No two fabrication shops have identical storage requirements. A small HVAC shop might need a compact system for 3015mm sheets, while a large automotive supplier requires a multi-tower setup for 6025mm steel plates. Herochu’s Automatic Sheet Metal Storage System is fully customizable to fit your space, material types, and production volume—starting with core specifications that adapt to your needs:

Sheet Size Compatibility: Supports standard sizes from 3015mm (ideal for small parts) up to 6025mm (for large-scale fabrication), including 4015mm, 4020mm, and 6015mm—covering nearly every common sheet metal dimension.

Number of Floors: Fully customizable to match your workshop’s vertical space. Whether you need 5 layers to save floor space or 15 layers to maximize storage capacity, we’ll design a system that uses height efficiently without compromising safety.

Number of Storage Units: Tailored to your inventory volume. A single storage tower works for small batches, while multi-tower setups handle high-volume production—each unit integrated to work in sync with your other equipment.

Plate Support: Optional support configurations to protect delicate or irregularly shaped sheets. Choose from rubberized supports for scratch-sensitive aluminum, reinforced steel supports for heavy steel plates, or custom designs for specialty materials.

Our customization process goes beyond specs. We start with a detailed consultation: our team visits your workshop to measure space, assess your material types (steel, aluminum, copper), and map your production flow (e.g., laser cutting → bending → welding). We then design a system that fits around existing machinery, connects to your MES (Manufacturing Execution System), and aligns with your daily output goals. The result? A storage system that feels like it was built for your shop—because it was.

3. Fully Automated Workflow: From Storage to Production, No Manual Labor Needed

The biggest advantage of Herochu’s Automatic Sheet Metal Storage System is its ability to eliminate manual labor—turning time-consuming tasks into seamless, automated processes. This isn’t just “storage with a motor”; it’s a fully integrated solution that handles every step of material management:

Centralized, Automated Storage: The system centralizes all sheet metal in one location, eliminating scattered piles or manual shelving. Load sheets once, and the system automatically indexes them, assigning each to a dedicated storage unit.

Automatic Weight Detection: Built-in sensors weigh each sheet as it’s loaded, logging data into the PLC system. This ensures accurate inventory tracking (no more guessing how many sheets are left) and prevents overloading—protecting both the system and your materials.

PLC & Touch Screen Control: All operations are managed via a user-friendly touch screen connected to a PLC (Programmable Logic Controller). No specialized training needed: simply select the sheet type, quantity, or destination, and the system handles the rest. The PLC also stores historical data (e.g., retrieval times, material usage), making it easy to track efficiency or identify bottlenecks.

Classified Visual Management: Every storage unit is labeled digitally (and physically, if needed) with sheet details—material type, thickness, size, and location. The touch screen displays a real-time map of all inventory, so you can find any sheet in seconds. No more digging through stacks or searching for misplaced labels—visibility is complete, and errors are minimized.

For high-volume shops, this automation translates to game-changing efficiency: a task that once took two workers 30 minutes (retrieving and transporting a heavy steel sheet) now takes 2 minutes—fully automated.

4. Seamless Integration with Unmanned Production Lines

Herochu’s Automatic Sheet Metal Storage System isn’t just a storage tool—it’s the backbone of an unmanned fabrication workflow. When paired with Herochu’s Double Beam Rack Loading and Unloading Machine and your existing laser cutting machine, it creates a fully automated process with zero manual intervention:

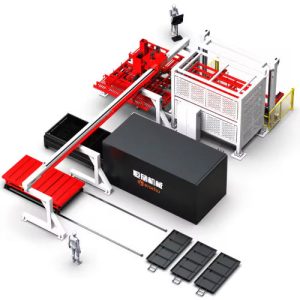

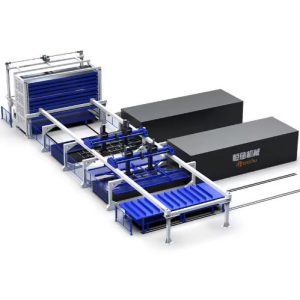

Automatic Sheet Retrieval: The storage system receives a signal from your laser cutting machine (or MES) requesting a specific sheet. It automatically retrieves the sheet, using its 12m/min inlet/outlet speed to move it quickly to the loading machine.

Precision Feeding: The Double Beam Loading and Unloading Machine picks up the sheet and feeds it directly into the laser cutting machine—no human hands needed. The system’s linear guide rails ensure the sheet is aligned perfectly, reducing cutting errors.

Post-Cutting Automation: After cutting, the machine automatically unloads the finished parts and separates them from waste. The storage system then retrieves the finished parts, returning them to a dedicated storage unit for later use or shipping.

This integration isn’t limited to laser cutters. Herochu’s Automatic Sheet Metal Storage System connects seamlessly to:

Shear center lines

Automatic punching centers

Robot automatic press brakes

Rolling centers

Various forming lines

Automatic welding production lines

Spraying lines

For manufacturers aiming to build an “unmanned factory,” this system is non-negotiable. It eliminates the need for workers to move heavy sheets between machines, reduces the risk of injury, and ensures consistent production flow—even during shift changes or peak demand.

5. Multi-Layer Storage: Maximize Space, Minimize Costs

Floor space is one of the most valuable assets in any workshop. Herochu’s Automatic Sheet Metal Storage System turns wasted vertical space into usable storage with its multi-layer design—a game-changer for shops struggling with overcrowding.

Traditional storage might require 100 square feet to store 50 sheets of 6025mm steel. A Herochu 10-layer system stores the same 50 sheets in just 10 square feet—freeing up 90 square feet for additional production equipment, workstations, or inventory. This isn’t just space savings; it’s cost savings:

Lower rent: You won’t need to expand your facility to accommodate more materials.

Reduced material handling: Sheets are stored vertically, so retrieval is faster (no walking across the shop to grab a sheet).

Less waste: Vertical storage eliminates stacking, which means no more dented or scratched sheets from heavy piles.

The system’s 9m/min vertical lifting speed ensures quick access to even the topmost layers. Whether you’re retrieving a sheet from the 2nd floor or the 15th, the system moves smoothly and precisely—no delays, no waiting.

6. Clear Advantages: Fast, Economic, Intuitive

Herochu’s Automatic Sheet Metal Storage System isn’t just a “nice-to-have”—it’s a revenue-driving tool that delivers measurable benefits:

Fast Operation: With 12m/min inlet/outlet speed and 9m/min vertical lifting speed, the system cuts material retrieval time by up to 70% compared to manual methods. For a shop that processes 100 sheets per day, that’s hours of saved labor every week.

Economic Efficiency: By reducing labor costs, minimizing material waste (no more damaged sheets), and eliminating the need for extra floor space, the system pays for itself in as little as 12–18 months. Starting at $19,998, it’s an investment that delivers ongoing returns.

Intuitive Use: The PLC touch screen interface is designed for shop floor teams—not IT experts. Workers can learn to operate the system in less than an hour, with clear icons for “retrieve,” “store,” “inventory check,” and “maintenance alerts.”

MES Integration: The system connects to your enterprise’s Manufacturing Execution System (MES), allowing real-time inventory tracking, production scheduling, and data analysis. Know exactly how many sheets you have, which ones are in use, and when to reorder—all from one dashboard.

Material Protection: The system’s optional plate supports and enclosed storage units protect sheets from dust, moisture, and scratches. For high-value materials like stainless steel or aluminum, this means fewer rejected parts and higher customer satisfaction.

What’s Included in Every Herochu Automatic Sheet Metal Storage System?

Every system is a turnkey solution, with all components needed to get up and running quickly—no need to source parts from multiple vendors. Standard inclusions:

Steel Storage Frame: Heavy-duty steel frame with customizable floor count, designed to support 3T/5T per layer.

Linear Guide Rails + Chain Drive: Smooth-moving rails and durable chain transmission for reliable sheet transport.

PLC Control System: Industrial-grade PLC with touch screen interface, pre-programmed for common operations (retrieval, storage, inventory tracking).

Weight Sensors: Built-in sensors for automatic weight detection and inventory logging.

Vertical Lifting Mechanism: High-speed lifting system (9m/min) for access to all layers.

Sheet Support Units: Optional rubberized or steel supports, customizable to your material type.

Safety Features: Emergency stop buttons, overload protection, and anti-collision sensors to ensure worker and material safety.

For customers integrating with production lines, we also include:

MES Integration Software: To connect the storage system to your existing MES or ERP (Enterprise Resource Planning) software.

Double Beam Loading/Unloading Machine Compatibility: Pre-wired connections to ensure seamless communication with Herochu’s loading equipment.

Fast Delivery: Get Your System Up and Running in Weeks, Not Months

We understand that downtime costs money. That’s why Herochu offers a one-stop delivery process—from design to installation—with fast lead times. Our self-operated factory uses advanced manufacturing equipment to produce components quickly, and our in-house installation team ensures your system is set up correctly, safely, and in line with your production schedule.

Here’s how it works:

Consultation: Our team visits your workshop to assess your needs, measure space, and confirm specs (sheet sizes, load capacity, floor count).

Design: We create a 3D layout of the system, showing how it fits with your existing equipment and workflow. We adjust the design until it’s perfect for your shop.

Manufacturing: Components are built in our factory, with quality checks at every stage (welding, painting, electrical testing) to ensure compliance with CE/UE/ISO 9001 standards.

Delivery: Components are shipped directly to your workshop, packed securely to prevent damage.

Installation: Our team installs the system, wires the PLC, tests all functions (lifting, retrieval, MES integration), and trains your staff on operation and maintenance.

Most standard systems are installed within 2–3 weeks; custom multi-tower setups take 4–5 weeks—far faster than industry averages. We don’t just sell you a system—we partner with you to ensure it’s working seamlessly from day one.

Who Uses Herochu’s Automatic Sheet Metal Storage System?

Our system is trusted by fabricators and manufacturers across industries that rely on efficient sheet metal management:

Automotive: Store steel and aluminum sheets for body panels, frames, or components, with seamless integration to robot press brakes.

Aerospace: Manage precision aluminum or titanium sheets, with material protection features to prevent scratches or contamination.

HVAC: Store 3015mm–4020mm galvanized steel sheets for ducts, with fast retrieval to keep up with high-volume orders.

Construction: Handle large 6020mm–6025mm steel plates for structural parts, with multi-layer storage to save yard space.

Electronics: Store thin-gauge copper or aluminum sheets for enclosures, with PLC tracking to avoid material mix-ups.

No matter your industry, if you work with sheet metal, Herochu’s system will streamline your workflow.

Invest in Efficiency: Herochu Automatic Sheet Metal Storage System Starts at $19,998

Quality industrial automation shouldn’t be out of reach. Herochu’s Automatic Sheet Metal Storage System starts at $19,998 for a standard single-tower setup (3015mm size, 5 layers, 3T per layer)—an affordable entry point for small to mid-sized shops. Custom systems (multi-tower, larger sizes, 5T capacity) are priced based on your needs, but we always prioritize value: every feature is designed to deliver a return on investment.

Every system comes with a 2-year warranty (extendable to 5 years) and ongoing support from our team. Whether you need help troubleshooting, replacing a part, or updating the PLC software, we’re available 24/7 to keep your system running smoothly.

Ready to Transform Your Sheet Metal Fabrication Workflow?

Don’t let manual storage slow down your production, waste materials, or increase labor costs. Herochu’s Automatic Sheet Metal Storage System—certified, customizable, and built for industrial use—turns sheet metal management into a competitive advantage. It’s not just about storing sheets; it’s about streamlining your entire operation, from raw material to finished product.

Contact our team today to schedule a workshop consultation. We’ll walk you through the design process, show you how the system integrates with your existing equipment, and help you calculate your potential cost savings. Let’s build a storage solution that works as hard as your team does.

Herochu: Intelligent Automation for the Future of Fabrication.

FAQ

Here are some frequently asked questions about our sheet metal racks and pipe storage solutions. We hope you find them helpful!

Q1: Can I request a custom size or color?
Absolutely. We offer complimentary design services and deliver efficient, tailored solutions to meet your specific requirements.

Q2: Are you a manufacturer or a distributor?
We are a direct manufacturer with over 15 years of industry experience and expertise.

Q3: Is there a minimum order quantity?
No. We welcome orders of any size, starting from a single unit.

Q4: How can I get detailed product information?
Click the “Get a Quote” button to receive product images, detailed specifications, and videos. Our team is always ready to assist.

Q5: How do I provide my storage rack requirements?
Simply share the type, dimensions, and quantity of materials you plan to store, along with any other specific needs. We will develop a professional storage solution for you. Alternatively, leave your contact details for a personalized consultation.

Q6: Do you offer automated loading systems or robotic arms?
Yes. We provide loading robotic arms and integrated loading/unloading systems tailored to your laser cutting machine’s table size and material handling method (e.g., board rack, exchange platform, or material warehouse). Contact us with your details for a customized proposal.

Q7: Do you provide on-site installation and debugging?
Yes. Our technicians can travel to your facility for installation and debugging, ensuring successful operation. We have served clients globally, including in the USA, South Korea, Russia, Qatar, Mexico, South Africa, Egypt, and Lebanon.

Q8: How do you ensure product quality?
Our quality assurance includes:

A team of over 40 technical engineers for professional debugging and support.
A dedicated quality control department compliant with ISO9001 standards.
CE certification for all exports.
Rigorous load testing before shipment to ensure structural safety and reliability.

Q9: Where is your factory located?
Our modern 10,000-square-meter manufacturing facility is located in Jiyang Industrial Park, Jinan, Shandong, China.

Q10: How can I evaluate your company’s capabilities?
We offer virtual video factory tours and warmly welcome on-site visits.

Q11: What does your company specialize in?
Jinan Constant Storage Machinery Manufacturing Co., Ltd. is a high-tech enterprise specializing in the R&D, production, sales, installation, and service of intelligent storage solutions. Our product range includes sheet material warehouses, drawer-style shelves, cantilever racks, servo manipulators, gantry loaders, and fully automated handling systems. Supported by a skilled technical team and advanced equipment, we are committed to delivering high-performance storage products and solutions to customers worldwide.
