Automatic Sheet Metal Storage

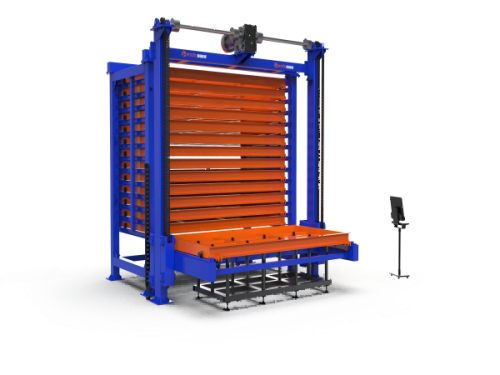

Automatic Sheet Metel Storage Rack is an automatic storage and retrieval system for sheet metal. It takes advantage of vertical space of warehouse and implementing a Goods-to-Operator workflow, working with lifter to deposit and retrieve drawers and deliver them directly to the loading/unloading bay at a safe working height.

Automatic Sheet Metal Storage

Automatic Sheet Metal Storage introduction

It is a customized system to accommedate a variety of sheets and others flat materials such as moulds, boxes, componets etc.

Automatic Sheet Metal Storage Features

1.Reduce storage floor footprint and increase vertical storage capacity

2.Lower material hanlding cost

3.Efficent material storage and flow

4.Creat an safty enviroment for worker and avoid damage of material

5.Updated inventory status

6.Heavy Duty Design with strandard loading 3tons( max 5 tons) per drawer

7.Touch Screen Control system

Constant Storage Configuration Table (Board Class) Drawer type Tray Storage Shelf
Project model	HC-B3015-63	HC-B4015-63	HC-B4020-65	HC-B6020-66	Note: Device colors can be customized
Load (single layer)	3t	3t	5t	6t	Customizable
Plate size mm	3000×1500	4000×1500	4000×2000	6000×2000
&# 9; Number of layers	5+1
The available height of the partition layer is mm	≤ 220
Width when door is opened mm	3515			4015
External dimensions (length x height x width) mm	3505x2280x2000	4505x2280x2000	4505x2280x2500	6505x2280x2500	Determine based on the size of the partition layer
Drawer movement method	Integrated pull-out type
Ground clearance height of the bottom layer	355
Top floor height	2195			2250	Determine based on floor height
Depth pad height	60				Not standard, customizable height
Model description: HC: Constant storage B: Board type
Digital description: For example, HC-B3015-633 meters x 1.5 meters, 6 layers, 3 tons of board
