Automatic sheet metal loading and unloading system

Automatic Loading and Unloading for Laser Cutting

Automatic sheet metal loading and unloading system/Automatic Loading and Unloading for Laser Cutting

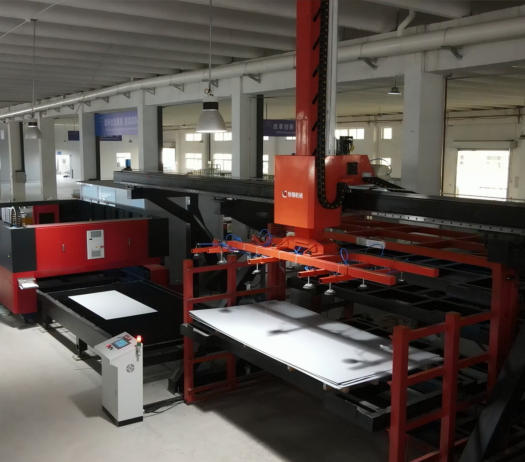

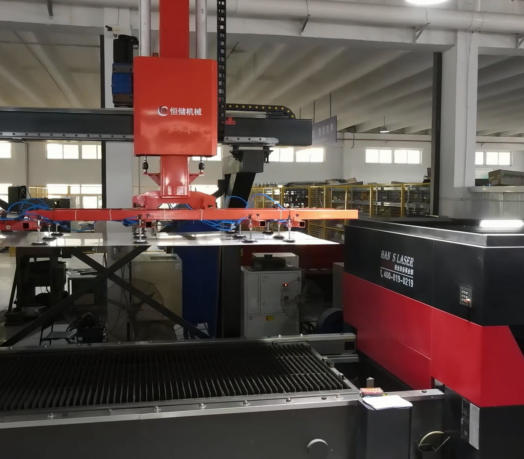

The Herochu Automatic Sheet Metal Loading and Unloading System revolutionizes the way manufacturers handle sheet metal processing. Designed for seamless integration with CNC laser cutting machines, this system optimizes material handling, reduces manual labor, and enhances workplace safety. Whether you need automated loading and unloading for laser cutting or a customized solution tailored to your workshop, Herochu delivers CE, UE, and ISO 9001 certified performance.

Automatic sheet metal loading and unloading system/Automatic Loading and Unloading for Laser Cutting

Enhance Your Laser Cutting Operations with Automated Precision

Why Choose Herochu’s Automatic Loading and Unloading System?

Herochu’s advanced automation technology streamlines sheet metal processing by:

Automating material transfer – Reduces manual handling and increases efficiency.
Improving safety – Minimizes workplace injuries and sheet damage.
Enhancing productivity – Faster loading/unloading cycles mean higher throughput.
Seamless integration – Compatible with various laser cutting machines, regardless of software.

Key Features of Herochu’s Automatic Sheet Metal Handling System

1. Automated Loading & Unloading with Precision

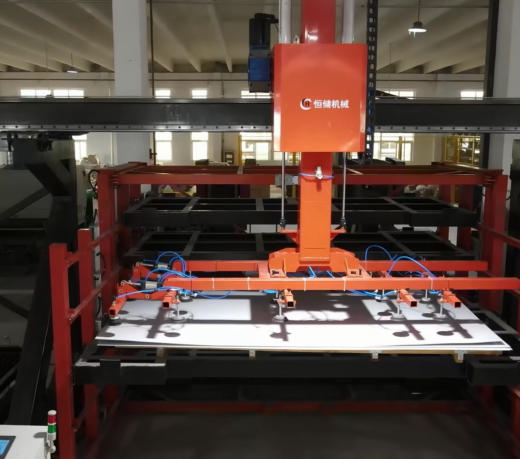

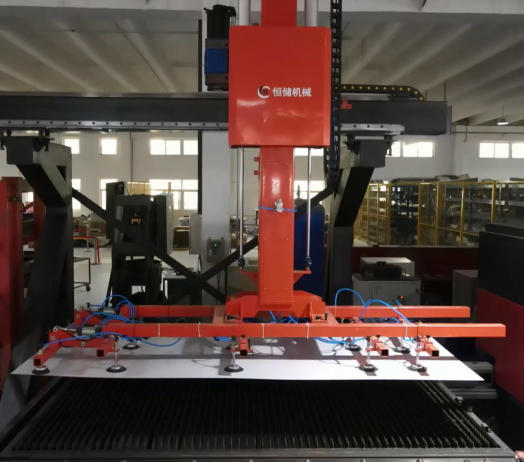

Suction cup and fork modules ensure secure handling of sheets.
Semi-automatic retrieval from stacks or shelving units.
Efficient transfer of cut components to picking stations (pallets or storage systems).

2. Optimized Transport & Storage Integration

Smooth transfer of processed parts to downstream workflows.
Space-saving design that integrates with automated storage solutions.

3. Universal Compatibility

Works with multiple CNC laser cutting machine brands.
No dependency on proprietary software – flexible integration.

Technical Specifications

Parameter	Details
Sheet Dimensions	Length: 1000–3000 mm, Width: 1000–1500 mm
Thickness Range	0.5–25 mm
Max. Sheet Weight	Up to 900 kg
Angular Speed	0.2 rad/s (max)
Certifications	CE, UE, ISO 9001

Servo Swing Arm Handling Manipulator – Flexible & Secure Material Handling

For additional flexibility, Herochu offers a Servo Swing Arm Handling Manipulator, designed for ergonomic and efficient sheet metal handling.

Key Advantages:

✅ Modular Assembly – Easy to install, disassemble, and reconfigure.
✅ Enhanced Safety – Emergency stop protection & automatic braking.
✅ Cost-Effective Operation – Simple loading process for seamless handling.

Specifications:

Model	HC-R3015-500	HC-R3015-750	HC-R3015-1000	HC-R4020-500	HC-R4020-750
Max. Plate Thickness	8mm	12mm	20mm	8mm	12mm
Max. Feeding Width	3000x1500mm	4000x2000mm
Min. Feeding Width	1250x1000mm
Max. Plate Weight	300kg	500kg	1000kg	300kg	500kg
Suction Cups	15	15	118	15	15
Suction Cup Diameter	150mm	200mm	250mm	150mm	200mm
Power Mode	Electric

Benefits for Your Production Line

🔹 Increased Efficiency – Faster loading/unloading reduces downtime.
🔹 Improved Workplace Safety – Minimizes manual handling risks.
🔹 Space Optimization – Compact design fits seamlessly into workshops.
🔹 Customizable Solutions – Tailored to your specific production needs.

Conclusion: Automate Your Sheet Metal Processing Today

The Herochu Automatic Sheet Metal Loading and Unloading System is the ideal solution for manufacturers looking to enhance productivity, safety, and precision in laser cutting operations. With CE, UE, and ISO 9001 certification, Herochu ensures reliable, high-performance automation that integrates effortlessly into your workflow.

Upgrade your production line with Herochu’s cutting-edge automation – Contact us today for a customized solution!

FAQ

Here are some frequently asked questions about our sheet metal racks and pipe storage solutions. We hope you find them helpful!

Q1: Can I request a custom size or color?
Absolutely. We offer complimentary design services and deliver efficient, tailored solutions to meet your specific requirements.

Q2: Are you a manufacturer or a distributor?
We are a direct manufacturer with over 15 years of industry experience and expertise.

Q3: Is there a minimum order quantity?
No. We welcome orders of any size, starting from a single unit.

Q4: How can I get detailed product information?
Click the “Get a Quote” button to receive product images, detailed specifications, and videos. Our team is always ready to assist.

Q5: How do I provide my storage rack requirements?
Simply share the type, dimensions, and quantity of materials you plan to store, along with any other specific needs. We will develop a professional storage solution for you. Alternatively, leave your contact details for a personalized consultation.

Q6: Do you offer automated loading systems or robotic arms?
Yes. We provide loading robotic arms and integrated loading/unloading systems tailored to your laser cutting machine’s table size and material handling method (e.g., board rack, exchange platform, or material warehouse). Contact us with your details for a customized proposal.

Q7: Do you provide on-site installation and debugging?
Yes. Our technicians can travel to your facility for installation and debugging, ensuring successful operation. We have served clients globally, including in the USA, South Korea, Russia, Qatar, Mexico, South Africa, Egypt, and Lebanon.

Q8: How do you ensure product quality?
Our quality assurance includes:

A team of over 40 technical engineers for professional debugging and support.
A dedicated quality control department compliant with ISO9001 standards.
CE certification for all exports.
Rigorous load testing before shipment to ensure structural safety and reliability.

Q9: Where is your factory located?
Our modern 10,000-square-meter manufacturing facility is located in Jiyang Industrial Park, Jinan, Shandong, China.

Q10: How can I evaluate your company’s capabilities?
We offer virtual video factory tours and warmly welcome on-site visits.

Q11: What does your company specialize in?

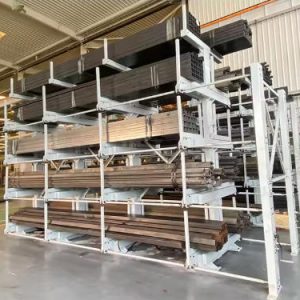

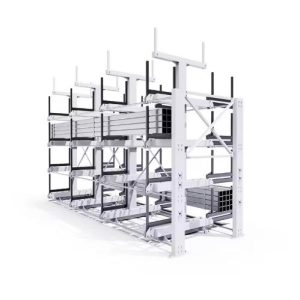

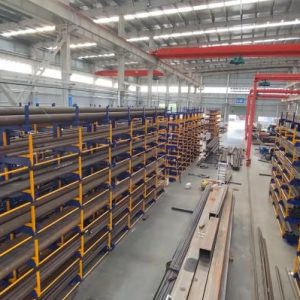

Jinan Constant Storage Machinery Manufacturing Co., Ltd. is a high-tech enterprise specializing in the R&D, production, sales, installation, and service of intelligent storage solutions. Our product range includes sheet material warehouses, drawer-style shelves, cantilever racks, servo manipulators, gantry loaders, and fully automated handling systems. Supported by a skilled technical team and advanced equipment, we are committed to delivering high-performance storage products and solutions to customers worldwide.
