Automatic Pipe Storage System

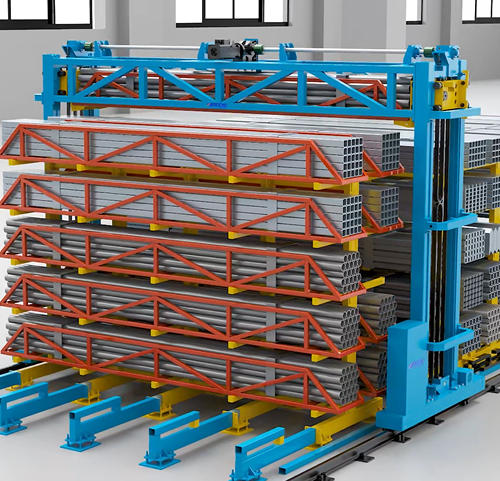

The Herochu Automatic Pipe Storage System is an advanced automated vertical storage solution specifically engineered for storing bar stock, pipes, tubes, and profiles. This cutting-edge system features an intelligent elevator mechanism that deposits and retrieves material drawers with precision, delivering them directly to the load/unload bay at a safe working height. By utilizing vertical space efficiently, this system significantly reduces the footprint required for material storage while optimizing workflow throughout your facility.

Category Automated Storage Systems Tag Automatic Pipe Storage System

Automatic Pipe Storage System

Herochu Automatic Pipe Storage System: Revolutionizing Material Handling in Your Workshop

In today’s competitive industrial landscape, optimizing material storage and workflow is crucial for maintaining operational efficiency and profitability. The Herochu Automatic Pipe Storage System represents a groundbreaking solution for modern manufacturing facilities, offering an automated, space-saving, and highly customizable approach to storing long materials. This innovative system is designed to transform your workshop’s material handling processes, reducing costs, improving safety, and enhancing overall productivity.

System Overview

Key Features

Customizable Design: Adaptable to your workshop’s specific requirements and available space
High Capacity: Each drawer can support up to 5,000 kg (11,000 lbs) of material
Versatile Storage: Accommodates various long materials as well as flat items like moulds, boxes, spare parts, and components
Automated Operation: Features user-friendly touch screen controls for effortless operation
Heavy-Duty Construction: Built to withstand rigorous industrial environments
Certified Quality: Meets CE, UE, and ISO 9001 standards for reliability and safety

Technical Specifications

The Herochu Automatic Pipe Storage System boasts impressive technical capabilities that set it apart from conventional storage solutions:

Core System Components

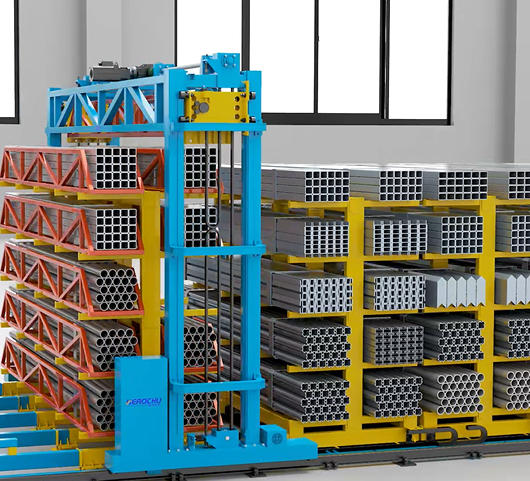

Double Tower Design: Comprising a 17-layer feed tower and a 19-layer main material tower with 36 total storage locations
Single-Layer Bin Specifications: 470mm bins capable of storing profiles up to 6000mm in length and 220mm in diameter
Rated Load Capacity: 3000kg per single-layer bin
Vertical Lifting Speed: 9 meters per minute for efficient material access
Inlet/Outlet Speed: 12 meters per minute for swift material transfer
Grid Size: 600mm x 500mm for optimal material organization
Number of Storage Units: Fully customizable based on your specific needs

Additional Technical Details

Material: High-grade steel construction for durability
Structure: Multi-level racking system with mobile capabilities
Height Range: 5-15 meters to accommodate various facility sizes
Weight: 500kg (base unit)
Transmission Mode: Chain drive for smooth operation

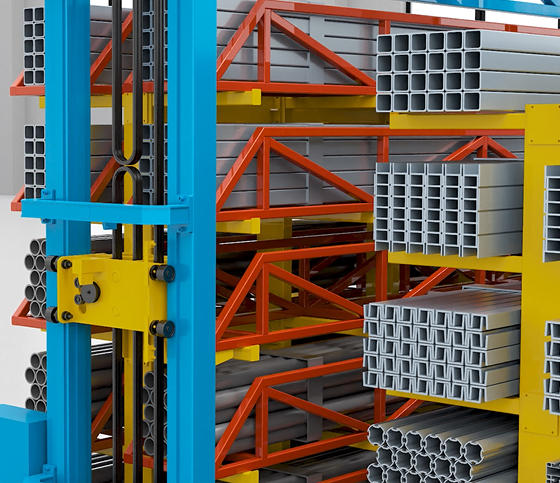

Mode of Movement: Linear guide rail + chain system for precise positioning
Production Capacity: 10,000 units annually to meet global demand
Transport Packaging: Containerized for secure international shipping

Customization Options

Understanding that every workshop has unique requirements, Herochu offers extensive customization options for its Automatic Pipe Storage System:

Number of Floors: Tailored to your facility’s vertical space
Load per Layer: Adjustable up to 3-ton capacity
Size of Each Grid: Configurable to accommodate various material dimensions
Number of Storage Units: Designed based on your inventory needs
Overall System Size: Customizable from 5 to 15 meters in height

Customer Benefits

Implementing the Herochu Automatic Pipe Storage System delivers substantial advantages to your operations:

Operational Efficiency

Material Handling Cost Reduction: Automates storage and retrieval processes, minimizing labor requirements
Reduced Storage Footprint: Utilizes vertical space effectively, freeing up valuable floor area
Efficient Material Flow: Optimizes workflow throughout your facility
Updated Inventory Status: Provides real-time tracking of material availability
Fast ROI: Delivers quick returns on investment through improved efficiency

Workplace Safety

Enhanced Safety Features: Delivers materials at a safe working height, reducing injury risks
Heavy-Duty Design: Built to withstand industrial conditions with minimal maintenance
User-Friendly Interface: Touch screen controls simplify operation for staff

Long-Term Value

Scalable Solution: Grow with your business by adding storage units as needed
Durable Construction: Long-lasting design ensures years of reliable service
Certified Quality: Meets international standards for reliability and performance

Applications

The Herochu Automatic Pipe Storage System is versatile enough to serve various industrial applications, including:

Manufacturing Facilities: For storing raw materials and finished products
Construction Sites: Organizing pipes, bars, and profiles on-site
Warehousing Operations: Optimizing inventory management for long materials
Tool Rooms: Storing moulds, spare parts, and components
Metalworking Shops: Efficiently managing bar stock and tubes

why Choose Herochu?

Herochu stands out in the material handling industry by offering:

Innovative Technology: Cutting-edge design that redefines vertical storage
Custom Solutions: Tailored to your specific workshop requirements
Quality Assurance: Backed by CE, UE, and ISO 9001 certifications
Global Support: With production capacity for worldwide distribution
Proven Performance: Trusted by industrial facilities to enhance productivity

Get Started Today

Transform your workshop’s material handling with Herochu’s Automatic Pipe Storage System. Starting at $18,999, this customizable solution offers a smart investment for any facility looking to optimize space, improve workflow, and enhance operational efficiency. Contact Herochu now to discuss your specific requirements and begin your journey toward smarter material storage.

FAQ

Here are some frequently asked questions about our sheet metal racks and pipe storage solutions. We hope you find them helpful!

Q1: Can I request a custom size or color?
Absolutely. We offer complimentary design services and deliver efficient, tailored solutions to meet your specific requirements.

Q2: Are you a manufacturer or a distributor?
We are a direct manufacturer with over 15 years of industry experience and expertise.

Q3: Is there a minimum order quantity?
No. We welcome orders of any size, starting from a single unit.

Q4: How can I get detailed product information?
Click the “Get a Quote” button to receive product images, detailed specifications, and videos. Our team is always ready to assist.

Q5: How do I provide my storage rack requirements?
Simply share the type, dimensions, and quantity of materials you plan to store, along with any other specific needs. We will develop a professional storage solution for you. Alternatively, leave your contact details for a personalized consultation.

Q6: Do you offer automated loading systems or robotic arms?
Yes. We provide loading robotic arms and integrated loading/unloading systems tailored to your laser cutting machine’s table size and material handling method (e.g., board rack, exchange platform, or material warehouse). Contact us with your details for a customized proposal.

Q7: Do you provide on-site installation and debugging?
Yes. Our technicians can travel to your facility for installation and debugging, ensuring successful operation. We have served clients globally, including in the USA, South Korea, Russia, Qatar, Mexico, South Africa, Egypt, and Lebanon.

Q8: How do you ensure product quality?
Our quality assurance includes:

A team of over 40 technical engineers for professional debugging and support.
A dedicated quality control department compliant with ISO9001 standards.
CE certification for all exports.
Rigorous load testing before shipment to ensure structural safety and reliability.

Q9: Where is your factory located?
Our modern 10,000-square-meter manufacturing facility is located in Jiyang Industrial Park, Jinan, Shandong, China.

Q10: How can I evaluate your company’s capabilities?
We offer virtual video factory tours and warmly welcome on-site visits.

Q11: What does your company specialize in?
Jinan Constant Storage Machinery Manufacturing Co., Ltd. is a high-tech enterprise specializing in the R&D, production, sales, installation, and service of intelligent storage solutions. Our product range includes sheet material warehouses, drawer-style shelves, cantilever racks, servo manipulators, gantry loaders, and fully automated handling systems. Supported by a skilled technical team and advanced equipment, we are committed to delivering high-performance storage products and solutions to customers worldwide.
