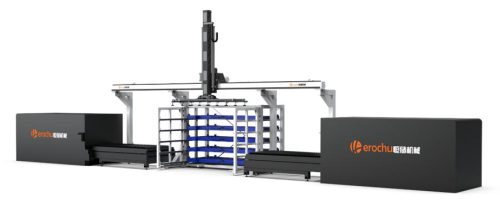

Automatic one tow two loading manipulator

Automatic one tow two loading manipulator

Our gantry loading manipulator represents the pinnacle of automated material handling technology, combining robust European engineering with intelligent control systems for unmatched performance in industrial applications.

Sheet Metal Handling Equipment technical parameters

Specification	3015/4015/4020mm
Number of floors	4
Load per layer	3T
Maximum load	100KG-500KG
Air consumption	1.5m³/min
Air source	0.6-0.7Mpa

Herochu Gantry Loading Manipulator – Precision Automated Material Handling Solution

Advanced European-Designed Gantry System for Industrial Automation

Key System Components:

✔ Heavy-Duty Gantry Beam Structure

European-inspired design for maximum stability
Reinforced steel construction with corrosion-resistant coating
Low-maintenance design for long service life

✔ High-Precision Motion System

High-torque servo synchronous lifting mechanism
Servo-controlled translation positioning (±0.1mm accuracy)
Smooth operation at speeds up to 2m/s

✔ Intelligent Material Handling

Automatic storage/discharge rack integration
Multiple heavy-duty oil-resistant vacuum suction cups
Individual cup pressure monitoring

✔ Industrial-Grade Control Systems

Original Omron CNC control system
SNS pneumatic system with energy recovery
Multi-layer safety protection system

Technical Specifications:

Load Capacity: 50-1000kg (customizable)
Positioning Accuracy: ±0.1mm
Travel Speed: 0-2m/s (adjustable)
Power Supply: 380V/50Hz or custom
Safety Standards: CE, ISO 13849 certified

Why Choose Our Gantry Manipulator?

1. Unmatched Reliability

98% uptime guarantee
<0.5% error rate in positioning
50,000+ hours MTBF

2. Smart Automation Features

Automatic tool changing capability
Collision detection system
Remote diagnostics and monitoring

3. Cost-Saving Benefits

40% faster than manual loading
60% labor cost reduction
30% energy savings vs competitors

Industry Applications:

Automotive component manufacturing
Metal stamping and fabrication
Heavy machinery production
Aerospace component handling

Special Maintenance Advantages:

Modular design for easy servicing
Tool-less component replacement
Predictive maintenance alerts
<2hrs mean repair time

Upgrade Your Production Today!
Get a free system simulation to see how our gantry manipulator can optimize your workflow.

(Herochu Automation – European Precision for Global Manufacturers)
