Heavy-Duty Gantry Automatic Loading/Unloading Plate Storage System for High-Volume Fabricators

Automatic Loading And Unloading System Gantry Loader

Automatic loading and warehouse system

In the dynamic world of manufacturing, the efficiency of material storage and retrieval directly impacts the bottom line. Automated Sheet Towers & Metal Storage Systems have emerged as the backbone of modern production facilities, offering a sophisticated blend of high-density storage, rapid access, and intelligent management. These systems are transforming how companies handle sheet metal, plates, and heavy goods, turning chaotic warehouses into streamlined, high-performance environments.

Category Automation Sheet Metal Material Warehouse Tag Automatic loading and warehouse system

Automatic loading and warehouse system

Understanding the Technology

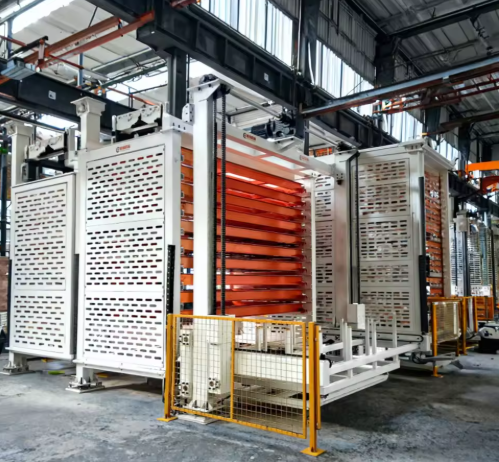

Automated Sheet Towers & Metal Storage Systems encompass a range of solutions designed to automate the storage and retrieval of flat materials. At their core, these systems utilize vertical carousels or shuttle mechanisms to move trays or shelves containing materials to an access port. The technology behind these towers is robust, employing linear guide rails and chain drives to ensure smooth, vibration-free movement even under heavy loads.

The specifications of these systems are impressive. Capable of handling sheet sizes from 3015mm up to 6025mm, they cater to a wide spectrum of industrial needs. With 8 to 13 floors available, the vertical utilization of space is maximized. Each layer supports loads between 3 to 5 tons, with options for heavier capacities up to 8,000 kg. This versatility allows a single system to store a diverse mix of materials, from thin gauge steel sheets to thick aluminum plates and long structural bars.

The Power of Automation

The primary advantage of Automated Sheet Towers & Metal Storage Systems is the elimination of manual search and retrieval. In traditional warehouses, workers spend considerable time locating specific sheets, moving other materials out of the way, and manually loading them onto transport vehicles. This process is not only time-consuming but also prone to errors and safety incidents.

Automation changes this paradigm entirely. With a simple command from a control panel or an integrated ERP system, the desired tray is brought to the access point within seconds. The vertical lifting speed of 9m/min and horizontal transfer speed of 12m/min ensure that materials are ready for processing almost instantly. This rapid response time is crucial for Just-In-Time (JIT) manufacturing methodologies, where delays in material supply can halt entire production lines.

Seamless Integration and Data Visibility

Modern Automated Sheet Towers & Metal Storage Systems are not isolated units; they are integral parts of a connected factory. They feature advanced software interfaces that allow for seamless integration with Enterprise Resource Planning (ERP) and Warehouse Management Systems (WMS). This connectivity provides real-time visibility into inventory levels, location data, and material history.

Managers can track exactly which batch of steel is stored on which floor, when it was received, and when it was last accessed. This level of granularity supports better demand forecasting, reduces overstocking, and minimizes the risk of material obsolescence. Furthermore, the system can automatically generate reports on usage patterns, helping businesses optimize their purchasing strategies and reduce carrying costs.

Integration extends beyond software. These towers can physically connect with other warehouse automation equipment. Robotic arms, AGVs (Automated Guided Vehicles), and conveyor systems can interact directly with the storage tower, creating a fully automated material flow. For example, a laser cutting cell can request a specific sheet, and the tower delivers it directly to the machine’s loading table, while the finished parts are returned to storage automatically.

Protecting Valuable Assets

Sheet metal and other raw materials represent a significant investment for any manufacturing company. Proper storage is essential to prevent damage from scratching, bending, or environmental exposure. Automated Sheet Towers & Metal Storage Systems provide a protected environment for these valuable assets. The enclosed structure shields materials from dust, humidity, and accidental impacts that are common in busy warehouse aisles.

Each tray is designed to support the material evenly, preventing warping or deformation that can occur with improper stacking. For sensitive materials like stainless steel or pre-painted sheets, this protection is vital to maintain surface quality and avoid costly rework or scrap. By reducing material damage, these systems contribute directly to cost savings and improved product quality.

Scalability and Flexibility

One of the standout features of Automated Sheet Towers & Metal Storage Systems is their scalability. Businesses do not need to commit to a massive infrastructure overhaul immediately. These systems can be installed as standalone units and expanded later as storage needs grow. Additional towers can be added, or existing units can be upgraded with more floors or higher load capacities.

This flexibility is particularly useful for companies experiencing seasonal fluctuations in production or those planning gradual expansion. The modular design ensures that the storage solution evolves alongside the business, protecting the initial investment and avoiding premature obsolescence. Moreover, the systems can be customized with optional plate supports and specialized trays to accommodate unique material shapes or sizes, ensuring a perfect fit for any application.

Economic Impact and ROI

While the initial investment in Automated Sheet Towers & Metal Storage Systems may be higher than traditional racking, the long-term economic benefits are undeniable. The reduction in labor costs associated with manual handling is significant. Fewer workers are needed for material retrieval, and those remaining can focus on higher-value tasks. The increase in storage density means that companies can defer expensive facility expansions or rentals.

Additionally, the improvement in inventory accuracy reduces the costs associated with lost or misplaced materials. Faster material turnover leads to shorter production cycles and quicker time-to-market for products. When all these factors are combined, the Return on Investment (ROI) for these automated systems is typically realized within a few years, making them a financially sound decision for forward-looking enterprises.

Conclusion

Automated Sheet Towers & Metal Storage Systems are redefining the standards of industrial storage. By combining high-capacity vertical storage with rapid automated retrieval and intelligent software integration, they offer a comprehensive solution to the challenges of modern manufacturing. As industries continue to push for greater efficiency and sustainability, these systems will play an increasingly critical role. Investing in Automated Sheet Towers & Metal Storage Systems is an investment in the future resilience and competitiveness of any manufacturing operation.

FAQ

Here are some frequently asked questions about our sheet metal racks and pipe storage solutions. We hope you find them helpful!

Q1: Can I request a custom size or color?
Absolutely. We offer complimentary design services and deliver efficient, tailored solutions to meet your specific requirements.

Q2: Are you a manufacturer or a distributor?
We are a direct manufacturer with over 15 years of industry experience and expertise.

Q3: Is there a minimum order quantity?
No. We welcome orders of any size, starting from a single unit.

Q4: How can I get detailed product information?
Click the “Get a Quote” button to receive product images, detailed specifications, and videos. Our team is always ready to assist.

Q5: How do I provide my storage rack requirements?
Simply share the type, dimensions, and quantity of materials you plan to store, along with any other specific needs. We will develop a professional storage solution for you. Alternatively, leave your contact details for a personalized consultation.

Q6: Do you offer automated loading systems or robotic arms?
Yes. We provide loading robotic arms and integrated loading/unloading systems tailored to your laser cutting machine’s table size and material handling method (e.g., board rack, exchange platform, or material warehouse). Contact us with your details for a customized proposal.

Q7: Do you provide on-site installation and debugging?
Yes. Our technicians can travel to your facility for installation and debugging, ensuring successful operation. We have served clients globally, including in the USA, South Korea, Russia, Qatar, Mexico, South Africa, Egypt, and Lebanon.

Q8: How do you ensure product quality?
Our quality assurance includes:

A team of over 40 technical engineers for professional debugging and support.
A dedicated quality control department compliant with ISO9001 standards.
CE certification for all exports.
Rigorous load testing before shipment to ensure structural safety and reliability.

Q9: Where is your factory located?
Our modern 10,000-square-meter manufacturing facility is located in Jiyang Industrial Park, Jinan, Shandong, China.

Q10: How can I evaluate your company’s capabilities?
We offer virtual video factory tours and warmly welcome on-site visits.

Q11: What does your company specialize in?
Jinan Constant Storage Machinery Manufacturing Co., Ltd. is a high-tech enterprise specializing in the R&D, production, sales, installation, and service of intelligent storage solutions. Our product range includes sheet material warehouses, drawer-style shelves, cantilever racks, servo manipulators, gantry loaders, and fully automated handling systems. Supported by a skilled technical team and advanced equipment, we are committed to delivering high-performance storage products and solutions to customers worldwide.
