Imagine walking into your sheet metal factory at 7 a.m. Instead of seeing operators scrambling to move steel plates with forklifts, or stacks of material cluttering the floor, you find a sleek, automated system quietly at work: A loading truss manipulator lifts a 3t bundle of 6020mm sheets from a forklift, glides it to a two-tower storage unit, and tucks it into a designated floor—all controlled by a PLC system. By 8 a.m., the unloading manipulator has already delivered three different plate sizes to your laser cutting machine, ready for production. No delays, no manual errors, no wasted space.

Category Automation Sheet Metal Material Warehouse Tag Automatic Heavy-duty Sheet Metal Storage Warehouse

Automatic Heavy-duty Sheet Metal Storage Warehouse

Herochu Automatic Heavy-duty Sheet Metal Storage Warehouse: Transform Your Factory’s Material Flow with Intelligent, Customizable Storage Starting at $8,999

This isn’t a futuristic vision—it’s the reality of Herochu’s Automatic Heavy-duty Sheet Metal Storage Warehouse. Designed for high-volume manufacturing facilities, metal processing plants, and large-scale distribution centers, this system turns chaotic, labor-intensive storage into a streamlined, intelligent hub. Certified to CE, UE, and ISO 9001 standards, it’s built to handle heavy loads (up to 3000kg total, 5t per layer), adapt to your workshop’s unique needs, and integrate seamlessly with your existing production line. If you’re tired of manual storage slowing down your operations, Herochu’s automatic warehouse is the solution that grows with your business—starting at $8,999.

The Problem Herochu Solves: When Manual Storage Breaks Your Production Flow

Every factory that handles sheet metal knows the costs of outdated storage:

Wasted Labor: Operators spend hours moving plates with forklifts or overhead hoists, leaving less time for skilled tasks like laser cutting or quality control.

Space Drain: Static stacks of sheets take up 40-50% more floor space than high-density automatic storage—space you could use for extra machinery or workflow expansion.

Error Risks: Manual loading/unloading leads to bent, scratched, or misplaced plates—costing you money in material waste and rework.

Production Delays: If a forklift is tied up moving material, your laser cutter or press brake sits idle. Every minute of downtime adds up to lost revenue.

Herochu’s Automatic Heavy-duty Sheet Metal Storage Warehouse eliminates these pain points with automation. It’s not just a place to store sheets—it’s a central material hub that communicates with your production line, ensuring plates arrive exactly when and where they’re needed. For example, a manufacturer using our two-tower system reduced material handling labor by 60% and freed up 35% of floor space—all while cutting production delays by half.

Core Specifications: Built for Heavy-Duty, Automated Performance

Herochu’s Automatic Heavy-duty Sheet Metal Storage Warehouse is engineered to handle the demands of industrial sheet metal storage. Let’s break down the key specs that make it a workhorse for factories:

Feature	Details	Why It Matters
Payload Capacity	200 kg (per manipulator)	Ensures the system can handle individual plates or small bundles with precision—critical for avoiding drops or damage.
Reach	2000 mm	Lets the truss manipulators cover a wide area, so the warehouse can service multiple production stations (e.g., two laser cutters side-by-side).
Number of Floors	8-13	Maximizes vertical space—an 8-floor system stores 2x more material than a 4-floor static rack, while a 13-floor system doubles that again.
Loading Per Layer	3t/5t	Handles heavy-duty loads: 3t per layer for standard steel sheets, 5t for thicker, denser plates (e.g., used in construction or heavy machinery).
Maximum Load	300kg-3000kg (total system)	Scales to your needs—smaller factories might start with a 500kg system, while large facilities can opt for 3000kg capacity.
Air Source	0.6-0.7MPa	Powers the pneumatic components of the manipulators, ensuring smooth, consistent movement (no jerky motions that damage sheets).
Package Gross Weight	1300.000kg	Reflects the system’s industrial-grade construction—built with high-strength steel for long-term durability.
Transport Package	Standard Export Packaging	Protects the system during shipping (whether you’re in the U.S., Europe, or Asia) to ensure it arrives in perfect working condition.

The system also supports six standard plate size configurations—3015, 4015, 4020, 6015, 6020, 6025—to fit the most common sheet metal dimensions used in manufacturing. Whether you’re storing 3000mm x 1500mm precision sheets for electrical enclosures or 6000mm x 2500mm heavy steel plates for construction, Herochu’s warehouse has you covered.

How It Works: The Herochu Two Tower System’s Automated Workflow

Herochu’s Automatic Heavy-duty Sheet Metal Storage Warehouse isn’t just a “storage unit”—it’s a fully integrated system that manages the entire material lifecycle, from loading to delivery to production. Let’s walk through the step-by-step process to see how it streamlines your operations:

1. Loading: Automated, Damage-Free Material Intake

Step 1: Forklift/Overhead Hoist Delivery: A forklift or overhead hoist brings a bundle of sheets to the loading area (no need for operators to manually carry heavy loads).

Step 2: Loading Truss Manipulator Takes Over: The system’s loading manipulator—controlled by a PLC (Programmable Logic Controller)—grabs the bundle with precision. Unlike manual handling, the manipulator applies consistent pressure, so sheets don’t shift, bend, or scratch.

Step 3: Lift to Designated Floor: An enhanced motor and gearbox control the lifting platform, raising the bundle to the correct floor (8-13 options) based on your inventory setup (e.g., 3015 sheets on Floor 2, 6025 sheets on Floor 10).

Step 4: Tray Storage: The PLC directs the system to slide the bundle onto a tray, which locks into place to prevent movement during storage.

2. Storage: High-Density, Organized Inventory

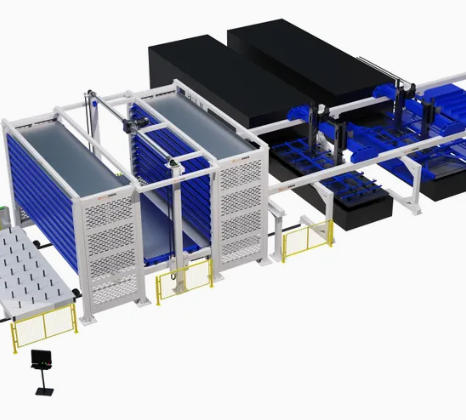

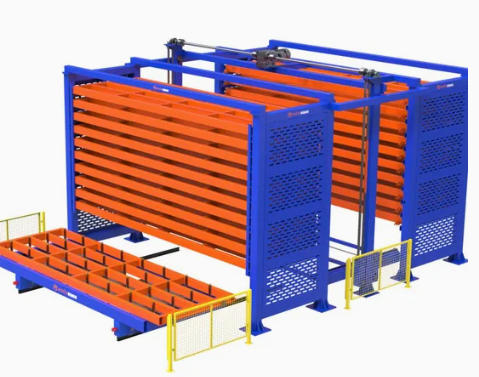

Two Tower Core: The central two-tower design is the heart of the system, providing high-density storage that uses vertical space instead of floor space. For example, a 10-floor two-tower system stores as much material as a 20-foot static rack but takes up 60% less floor area.

Bilateral Gantry Truss: The overhead gantry truss provides a stable framework for the manipulators, ensuring precise movement even when carrying heavy loads (up to 5t per layer). No more wobbly manual lifts that risk dropping sheets.

3. Unloading: Automated Delivery to Production

Step 1: PLC-Controlled Outbound Request: When your laser cutting machine (or other downstream equipment) needs material, the system receives a signal via the PLC. Operators can also send requests via the touch screen—no manual paperwork or radio calls.

Step 2: Retrieve the Tray: A feed motor reducer pulls the designated tray out from the tower, while another enhanced motor reducer lifts the tray to the unloading level.

Step 3: Unloading Manipulator Transfer: The unloading truss manipulator grabs the bundle and moves it to the double-layer finished material truck—no operator intervention needed.

Step 4: Deliver to Production: The material truck transports the bundle directly to your laser cutting machine (or press brake, shear, etc.), positioning it precisely for immediate use. No more operators wasting time moving material from storage to production.

4. Control: Intelligent, User-Friendly Management

PLC Control System + Touch Screen: The brain of the operation, the PLC manages every step—loading, storage, unloading, and delivery—with minimal human input. The touch screen lets operators monitor inventory levels, adjust workflows, and troubleshoot issues (e.g., low air pressure) in real time.

Automated Alerts: The system sends alerts for low inventory, maintenance needs (e.g., motor service), or errors (e.g., tray misalignment), so you can address issues before they cause downtime.

Customization: Build a System That Fits Your Workshop

Herochu’s Automatic Heavy-duty Sheet Metal Storage Warehouse is fully customizable—because no two factories have the same needs. Whether you need to adjust the number of floors, increase load capacity, or integrate with specific production machinery, we’ll design a system that works for you.

Here’s how we tailor the warehouse to your workflow:

Number of Floors: Need 15 floors instead of 13 to maximize vertical space? We’ll adjust the tower height and reinforce the structure to handle the extra load.

Load Capacity: Handling ultra-heavy 8t per layer sheets? We’ll upgrade the motors, gearboxes, and trays to support the higher weight.

Plate Sizes: Beyond the standard 3015-6025 options? We’ll modify the tray dimensions to fit non-standard sizes (e.g., 2500mm x 1800mm or 7000mm x 2200mm).

Integration with Existing Machinery: If you use a specific brand of laser cutter or press brake, we’ll program the PLC to communicate directly with that equipment—ensuring seamless material flow.

Additional Features: Want to add barcode scanning for inventory tracking? Or a backup power system for emergencies? We’ll incorporate these extras to make the system work for your unique needs.

Customization doesn’t mean long lead times, either. Our team works with your timeline to design, manufacture, and install the system—so you can start reaping the benefits of automation fast.

Why Herochu’s Automatic Warehouse Is a Smart Investment

Investing in an automatic sheet metal storage warehouse is more than just buying equipment—it’s investing in your factory’s efficiency, productivity, and bottom line. Here’s why Herochu’s system stands out from generic storage solutions:

1. Labor Savings: Reduce Manual Work, Boost Productivity

Manual material handling is one of the biggest labor drains in factories. Herochu’s automated system eliminates the need for operators to move sheets with forklifts or hoists, freeing them up for skilled tasks (e.g., operating laser cutters, quality control). A medium-sized factory using our system typically saves 10-15 hours of labor per week—translating to $50,000+ in annual labor cost savings.

2. Space Optimization: Use Vertical Space, Free Up Floor Area

Floor space is a valuable commodity in factories. Herochu’s two-tower design uses vertical space (8-13 floors) instead of horizontal space, letting you store 2-3x more material in the same footprint. For example, a factory that previously used a 100-square-foot static rack can now store the same amount of material in a 40-square-foot two-tower system—freeing up 60 square feet for an extra laser cutter or workbench.

3. Material Protection: Reduce Waste, Cut Rework Costs

Bent, scratched, or misplaced sheets cost factories thousands of dollars in waste and rework every year. Herochu’s automated system handles sheets with precision—no manual drops or shifts. The closed tray design and stable manipulator movement ensure sheets stay flat and undamaged, so every sheet that reaches production is usable. Factories using our system report a 30-40% reduction in material waste.

4. Safety: Minimize Risks for Operators

Manual material handling is one of the most common causes of workplace injuries (e.g., back strains, forklift collisions). Herochu’s system eliminates these risks by automating heavy lifts and reducing operator interaction with heavy loads. The PLC control system also includes safety features like emergency stop buttons and overload protection, ensuring compliance with global safety standards (CE, UE, ISO 9001).

5. Scalability: Grow With Your Business

As your factory expands, Herochu’s system grows with you. You can add more floors, increase load capacity, or integrate new machinery—no need to buy a whole new system. This scalability means your initial investment in an $8,999 warehouse will continue to deliver value for years to come.

Trust the Process: From Consultation to Installation

At Herochu, we make it easy to switch to automatic storage. Our process is designed to minimize downtime and ensure the system integrates seamlessly with your workflow:

Consultation: We start by visiting your factory (or conducting a virtual walkthrough) to understand your needs—plate sizes, production volume, existing machinery, and space constraints. We’ll recommend a standard or custom design that fits your goals.

Quote: You’ll receive a transparent, detailed quote starting at $8,999—no hidden fees. We’ll break down the cost of the two-tower system, manipulators, PLC control, and any customization.

Manufacturing: We build the system using high-grade steel and industrial-grade components, adhering to CE, UE, and ISO 9001 standards. Every part is tested for strength and performance before shipping.

Shipping: The system is packed in standard export packaging to protect it during transit. We work with trusted logistics partners to ensure on-time delivery, whether you’re in North America, Europe, Asia, or elsewhere.

Installation & Training: Our team installs the system on-site, calibrates the PLC to your workflow, and trains your operators on how to use the touch screen, monitor inventory, and troubleshoot issues. We’ll stay until you’re confident the system is running smoothly.

Ready to Automate Your Sheet Metal Storage?

If manual storage is slowing down your production, wasting labor, and taking up valuable space—Herochu’s Automatic Heavy-duty Sheet Metal Storage Warehouse is the solution you need. Starting at $8,999, it’s an investment that delivers immediate returns: labor savings, space optimization, material protection, and safer operations.

Whether you’re a small factory looking to streamline storage or a large facility needing a high-density, automated hub, Herochu’s system is customizable to your needs. And with CE, UE, and ISO 9001 certifications, you know you’re getting a reliable, durable system that meets global standards.

Contact Herochu today to schedule a consultation. Let’s turn your chaotic storage into an intelligent, efficient hub that powers your production.

Herochu: Where automatic storage meets industrial strength.

FAQ

Here are some frequently asked questions about our sheet metal racks and pipe storage solutions. We hope you find them helpful!

Q1: Can I request a custom size or color?
Absolutely. We offer complimentary design services and deliver efficient, tailored solutions to meet your specific requirements.

Q2: Are you a manufacturer or a distributor?
We are a direct manufacturer with over 15 years of industry experience and expertise.

Q3: Is there a minimum order quantity?
No. We welcome orders of any size, starting from a single unit.

Q4: How can I get detailed product information?
Click the “Get a Quote” button to receive product images, detailed specifications, and videos. Our team is always ready to assist.

Q5: How do I provide my storage rack requirements?
Simply share the type, dimensions, and quantity of materials you plan to store, along with any other specific needs. We will develop a professional storage solution for you. Alternatively, leave your contact details for a personalized consultation.

Q6: Do you offer automated loading systems or robotic arms?
Yes. We provide loading robotic arms and integrated loading/unloading systems tailored to your laser cutting machine’s table size and material handling method (e.g., board rack, exchange platform, or material warehouse). Contact us with your details for a customized proposal.

Q7: Do you provide on-site installation and debugging?
Yes. Our technicians can travel to your facility for installation and debugging, ensuring successful operation. We have served clients globally, including in the USA, South Korea, Russia, Qatar, Mexico, South Africa, Egypt, and Lebanon.

Q8: How do you ensure product quality?
Our quality assurance includes:

A team of over 40 technical engineers for professional debugging and support.
A dedicated quality control department compliant with ISO9001 standards.
CE certification for all exports.
Rigorous load testing before shipment to ensure structural safety and reliability.

Q9: Where is your factory located?
Our modern 10,000-square-meter manufacturing facility is located in Jiyang Industrial Park, Jinan, Shandong, China.

Q10: How can I evaluate your company’s capabilities?
We offer virtual video factory tours and warmly welcome on-site visits.

Q11: What does your company specialize in?
Jinan Constant Storage Machinery Manufacturing Co., Ltd. is a high-tech enterprise specializing in the R&D, production, sales, installation, and service of intelligent storage solutions. Our product range includes sheet material warehouses, drawer-style shelves, cantilever racks, servo manipulators, gantry loaders, and fully automated handling systems. Supported by a skilled technical team and advanced equipment, we are committed to delivering high-performance storage products and solutions to customers worldwide.
