Automatic composite loading and unloading manipulator & plate storage warehouse

Automatic composite loading and unloading manipulator & plate storage warehouse

In today’s competitive manufacturing landscape, efficiency, precision, and cost-effectiveness are critical. Herochu’s Automatic Composite Loading and Unloading Manipulator and Plate Storage Warehouse system provides a seamless automation solution for sheet metal processing, ensuring superior product quality, enhanced productivity, and reduced operational costs.

Automatic composite loading and unloading manipulator & plate storage warehouse

Automatic Composite Loading and Unloading Manipulator & Plate Storage Warehouse – Custom Solutions Starting at $6,600

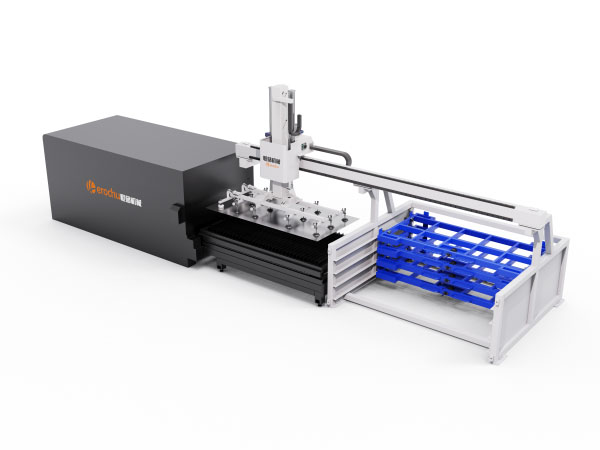

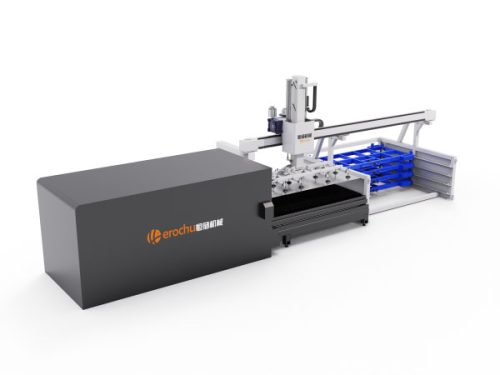

Performance Profile: A Fully Integrated Automation System

Our system integrates:

Three-Dimensional Storage Warehouse – Optimizes space utilization with multi-tiered storage.
Bilateral Gantry Truss – Ensures stable and precise material handling.

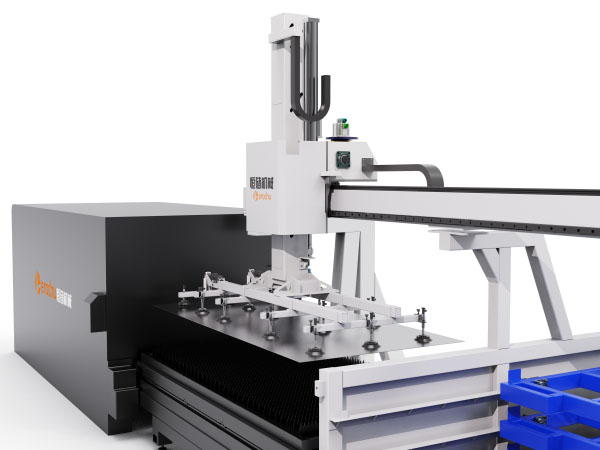

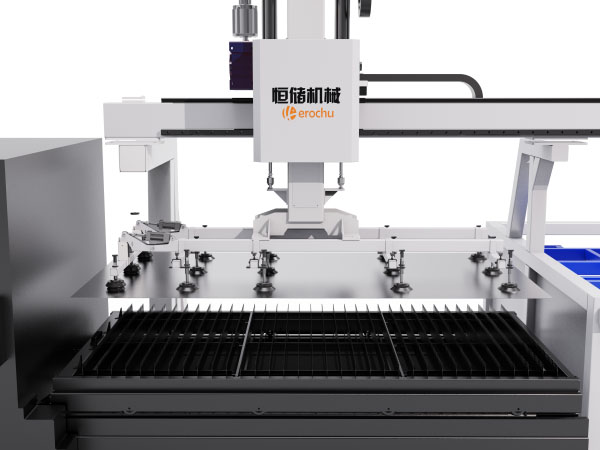

Loading & Unloading Composite Truss Manipulator – Facilitates smooth transfer of materials.
Finished Material Truck – Streamlines the movement of processed sheets.
PLC Control System – Delivers intelligent, automated operation.
Laser Cutting Machine Compatibility – Forms a complete sheet metal automatic production unit.

This automated loading and unloading system minimizes manual intervention, reduces errors, and maximizes throughput—ideal for industries requiring high-volume, high-precision metal fabrication.

Key Equipment Technical Parameters

Specification	Details
Model Size	3015/4015/4020/6015/6020 mm
Number of Floors	8-13 (Customizable)
Load per Layer	3T/5T (Adjustable based on needs)
Maximum Load	300KG-3000KG
Air Consumption	1.5m³/min
Air Source Pressure	0.6-0.7Mpa

Why Choose Herochu’s Automated Loading & Storage System?

✅ Fully Customizable – Tailored to fit your workshop layout and production demands.
✅ High Load Capacity – Supports heavy-duty industrial applications.
✅ Energy Efficient – Optimized air consumption reduces operational costs.
✅ Certified Quality – CE, UE, and ISO 9001 certified for reliability and safety.
✅ Cost-Effective Automation – Prices start from just $6,600, offering an excellent ROI.

Applications Across Industries

This system is ideal for:

Metal Fabrication – Automated loading/unloading for laser cutters, CNC machines.
Automotive Manufacturing – Efficient handling of sheet metal components.
Aerospace & Heavy Machinery – High-capacity storage and precision transfer.
Electronics & Appliances – Streamlined production of metal casings and parts.

Seamless Integration & Smart Control

The PLC-based control system ensures smooth coordination between the storage warehouse, manipulator, and laser cutting machine, enabling 24/7 unmanned production with minimal downtime.

Get Your Customized Solution Today!

Herochu specializes in bespoke automation systems designed to enhance your production line. Whether you need a compact storage warehouse or a heavy-duty manipulator, we provide cost-effective, high-performance solutions.

FAQ

Here are some frequently asked questions about our sheet metal racks and pipe storage solutions. We hope you find them helpful!

Q1: Can I request a custom size or color?
Absolutely. We offer complimentary design services and deliver efficient, tailored solutions to meet your specific requirements.

Q2: Are you a manufacturer or a distributor?
We are a direct manufacturer with over 15 years of industry experience and expertise.

Q3: Is there a minimum order quantity?
No. We welcome orders of any size, starting from a single unit.

Q4: How can I get detailed product information?
Click the “Get a Quote” button to receive product images, detailed specifications, and videos. Our team is always ready to assist.

Q5: How do I provide my storage rack requirements?
Simply share the type, dimensions, and quantity of materials you plan to store, along with any other specific needs. We will develop a professional storage solution for you. Alternatively, leave your contact details for a personalized consultation.

Q6: Do you offer automated loading systems or robotic arms?
Yes. We provide loading robotic arms and integrated loading/unloading systems tailored to your laser cutting machine’s table size and material handling method (e.g., board rack, exchange platform, or material warehouse). Contact us with your details for a customized proposal.

Q7: Do you provide on-site installation and debugging?
Yes. Our technicians can travel to your facility for installation and debugging, ensuring successful operation. We have served clients globally, including in the USA, South Korea, Russia, Qatar, Mexico, South Africa, Egypt, and Lebanon.

Q8: How do you ensure product quality?
Our quality assurance includes:

A team of over 40 technical engineers for professional debugging and support.
A dedicated quality control department compliant with ISO9001 standards.
CE certification for all exports.
Rigorous load testing before shipment to ensure structural safety and reliability.

Q9: Where is your factory located?
Our modern 10,000-square-meter manufacturing facility is located in Jiyang Industrial Park, Jinan, Shandong, China.

Q10: How can I evaluate your company’s capabilities?
We offer virtual video factory tours and warmly welcome on-site visits.

Q11: What does your company specialize in?
Jinan Constant Storage Machinery Manufacturing Co., Ltd. is a high-tech enterprise specializing in the R&D, production, sales, installation, and service of intelligent storage solutions. Our product range includes sheet material warehouses, drawer-style shelves, cantilever racks, servo manipulators, gantry loaders, and fully automated handling systems. Supported by a skilled technical team and advanced equipment, we are committed to delivering high-performance storage products and solutions to customers worldwide.
