Automated Storage & Weighing Smart Sheet Metal Warehouse

Inventory management in sheet metal fabrication is notoriously difficult. Steel sheets look identical, manual counts are error-prone, and weight is often the only reliable measure of remaining stock. The Automated Storage & Weighing Smart Sheet Metal Warehouse solves this problem by combining automated storage and retrieval with integrated weighing technology and a smart Warehouse Management System (WMS). This solution provides absolute certainty about material inventory, enabling true just-in-time manufacturing.

The Concept of a Smart Sheet Metal Warehouse

A “smart warehouse” goes beyond basic storage. It is an intelligent system that knows not only what material is stored but also its exact weight, location, age, and suitability for upcoming production jobs. This system comprises:

• Automated vertical storage racks with multiple drawers or trays.

• A precision weighing mechanism integrated into each drawer or the retrieval lifter.

• A WMS with real-time inventory, batch traceability, and ERP connectivity.

• A touchscreen control interface for operator interaction.

The result is a self-aware storage system that eliminates guesswork from material management.

Integrated Weighing for Absolute Inventory Accuracy

Traditional sheet metal storage relies on sheet counts. But counts are unreliable: sheets may be removed from the middle of a stack, partial stacks may be returned, or different thicknesses may be mixed. The weighing function solves this. Each time a drawer is accessed, the system weighs the remaining material. Because the density and dimensions of standard steel sheets are known, weight converts directly to an exact sheet count.

For example, a 3000x1500x3mm mild steel sheet weighs approximately 106 kg. If the system weighs a drawer and finds 530 kg remaining, it knows exactly five sheets are present—even if they are not stacked perfectly or if sheets have been removed from the middle. This accuracy extends to stainless steel, aluminum, and other alloys, using material-specific density values.

Automated Storage Rack with Smart Retrieval

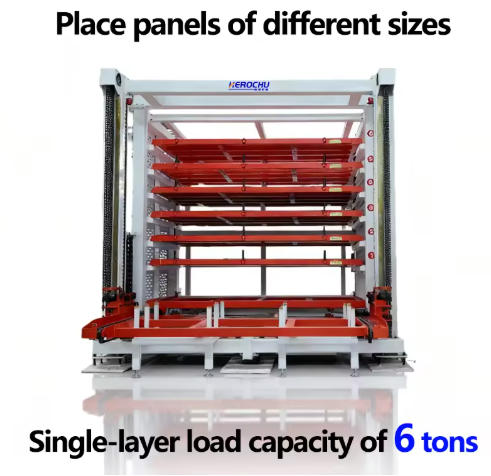

The core of the system is an Automated Storage Rack that operates autonomously. The rack uses vertical space efficiently, storing materials in a footprint up to 70% smaller than flat storage. The automated retrieval mechanism brings requested drawers to a safe, ergonomic loading/unloading bay.

The workflow is simple:

1. Operator or connected production system requests a specific material type and thickness.

2. The automated storage rack locates the correct drawer.

3. The drawer is delivered to the bay.

4. The operator removes the needed number of sheets (or an automated loader does).

5. The drawer is returned, and the system re-weighs the remaining material.

6. The WMS updates inventory in real time.

This “goods-to-operator” workflow reduces walking, lifting, and searching time while improving accuracy.

Intelligent WMS and ERP Integration

The WMS is the brain of the smart warehouse. It supports:

• Real-time inventory queries: Know instantly how many sheets of 3mm stainless steel are available and in which drawer.

• Batch traceability: Each incoming coil or sheet set is assigned a batch number. The system tracks which parts were cut from which batch, essential for quality assurance.

• Expiration warning: For materials with surface treatments or coatings that degrade over time, the system flags aging inventory for priority use.

Scan-in and automatic positioning achieve 100% accuracy. When new material arrives, a barcode scan automatically assigns it to an available drawer and records its weight. There is no manual data entry, therefore no errors, omissions, or inventory overstock.

Connection to the ERP system enables the integration of production, warehousing, and logistics data. The ERP can see real-time material availability, automatically generate purchase orders at reorder points, and schedule production based on what is actually in stock—not what a manual count estimated.

Unmanned Factory Capability

The system is designed for unmanned factory operations. With robotic handling integration, the smart warehouse can:

• Receive new material from an automated guided vehicle (AGV).

• Store the material in the optimal drawer based on weight and size.

• Retrieve material on demand from a laser cutter or press brake.

• Weigh and report remaining stock after each retrieval.

• Synchronize all data with the central production control system.

No human intervention is required for routine material storage and retrieval.

Safety and Material Protection

By automating the handling of heavy, sharp-edged metal sheets, the system creates a safer environment for workers. Operators interact only with the loading/unloading bay, never with the tall stacks or moving parts inside the rack. The system’s precision handling also prevents material damage: sheets are not dragged, dropped, or bumped during storage or retrieval.

Technical Capabilities

While the system is customizable, typical specifications include:

• Load capacity per drawer: 3 to 6 tons

• Sheet sizes: up to 6000x2000mm

• Number of layers: 5+1 or more

• Weighing accuracy: ±0.5% of total load

• WMS features: real-time query, batch traceability, expiration warning, ERP interface

Conclusion

The Automated Storage & Weighing Smart Sheet Metal Warehouse transforms material management from a source of uncertainty into a precise, data-driven function. By integrating weighing technology with automated storage and a smart WMS, the system provides absolute inventory accuracy, eliminates manual errors, and enables seamless ERP integration. For any metal fabrication facility seeking to achieve true lean manufacturing, this smart warehouse is an indispensable tool.
