Automated sheet metal storage system
The Herochu Automated Sheet Metal Storage System is not merely a piece of equipment; it is a fundamental re-engineering of your material handling workflow. It is the answer for forward-thinking manufacturers who recognize that true efficiency isn’t just about faster cutting speeds, but about eliminating the bottlenecks that exist between the cuts. This is the core of Industry 4.0: creating a seamless, intelligent, and autonomous flow of materials from storage to machine.
Automated sheet metal storage system

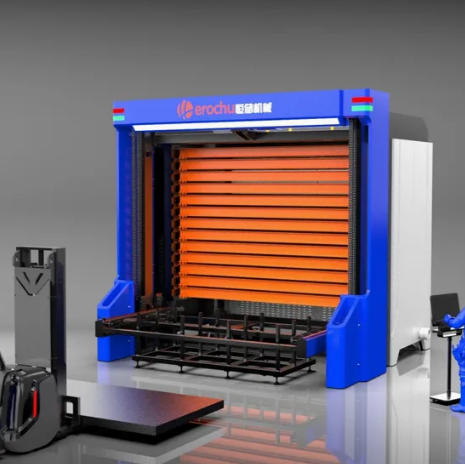

The Unseen Workforce: Introducing the Herochu Automated Sheet Metal Storage System
Imagine a critical job order arrives. It requires a specific grade and thickness of steel plate. In a traditional shop, what follows is a familiar, time-consuming ritual: a operator climbs onto a forklift, navigates to a crowded storage area, and begins the physical labor of shifting heavy, precarious stacks of sheet metal. They’re searching, often by sight and memory, for the correct plate. Minutes turn into twenty. Dust is stirred, floors are scratched, and the risk of a costly slip or sheet damage looms with every movement. Finally, the right plate is found, extracted, and transported to the laser cutter. The machine, your most significant capital investment, has been idle all this time. This is the hidden tax of conventional storage—a tax on time, safety, and profitability.
The Herochu Automated Sheet Metal Storage System is not merely a piece of equipment; it is a fundamental re-engineering of your material handling workflow. It is the answer for forward-thinking manufacturers who recognize that true efficiency isn’t just about faster cutting speeds, but about eliminating the bottlenecks that exist between the cuts. This is the core of Industry 4.0: creating a seamless, intelligent, and autonomous flow of materials from storage to machine.
From Storage Clutter to Automated Command Center
The Herochu system transforms your raw material inventory from a static, chaotic pile into a dynamic, high-density vault. Think of it as a highly specialized, robotic librarian for your most valuable raw assets. Instead of relying on manual labor and guesswork, the system leverages Programmable Logic Controller (PLC) automation and an intuitive touch-screen interface to become the nerve center of your material flow.
The Core Promise: Centralized, Intelligent Control
-
Centralized Storage: Every sheet, of every specification, is housed within a single, secure, and massively space-efficient structural frame. No more scattered piles across the workshop floor.
-
Automatic Warehousing & Retrieval: This is the heart of the system. With a few commands on the touch screen, the machine itself locates, retrieves, and delivers the exact sheet you need. The operator’s role shifts from physical labor to supervisory command.
-
Automatic Weight Detection: As sheets are stored, the system can log their weight, providing verifiable data for inventory management and ensuring no layer is overloaded beyond its engineered capacity.
-
Classified Visual Management: The PLC software allows you to catalog your inventory digitally. You can input data like material type, thickness, grade, and job destination. The visual interface gives you a real-time, bird’s-eye view of your entire sheet metal stock, eliminating the chaos of “lost” inventory.
Engineering the Uncompromising: A Deep Dive into Herochu’s Automated Architecture
What separates a true industrial automation solution from a simple motorized rack? It’s the relentless focus on precision, durability, and seamless integration.
1. The Robotic Core: Precision Movement and Drive
The system’s ability to reliably handle tons of material with millimeter precision rests on its robust transmission and movement systems.
-
Linear Guide Rail + Chain Movement: This combination is the workhorse of industrial automation. The linear guide rails ensure buttery-smooth, rigid, and precisely aligned horizontal and vertical movement, eliminating wobble or misalignment even under full 3-ton loads. The durable chain drive provides the powerful, positive engagement needed for consistent and reliable operation over millions of cycles. This is far superior to less robust systems like belt drives or simple rollers when dealing with such extreme weights.
-
Optimized Performance Speeds: With a vertical lifting speed of 9 m/min and an inlet/outlet speed of 12 m/min, the system operates with a purposeful, efficient pace. It’s not rushed, because rushed movements lead to misalignments and dangerous pendulum effects on heavy sheets. It’s a speed designed for unwavering stability and precision, ensuring the sheet is presented perfectly for the next step in the process.
2. The Backbone: Structural Integrity and Customization
The framework of a Herochu system is a feat of structural engineering, designed not just to hold weight, but to do so dynamically and for decades.
-
High-Strength Steel Construction: The main structure is fabricated from high-grade steel, ensuring it can withstand the constant stresses of moving loads and the dense weight of the stored inventory itself.
-
Unmatched Customization: Your sheet metal inventory is unique. Your storage system must be, too. We offer complete customization on:
-
Number of Floors: Configure the height of your system to match your volume and ceiling height.
-
Number of Storage Units: Scale the system to your exact inventory needs.
-
Sheet Size: Standard models accommodate common sizes like 3015, 4020, and 6020mm, but we engineer solutions for any dimension you work with.
-
Load Capacity: Choose between a 3T or 5T load per layer to match the density of your materials.
-
3. The Intelligent Layer: Pallet and Support Systems

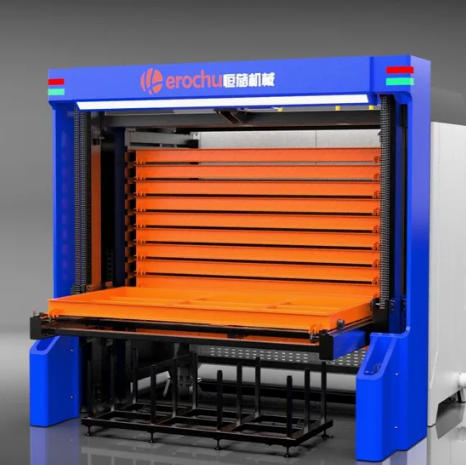

The point of contact with your valuable sheet metal is critical. Our drawer pallets are engineered for maximum support and minimal deflection.
-
Engineered Pallets: With a pressure rating of 667 kg per square meter, the pallets are designed to support the sheet evenly across its entire surface, preventing the bowing or warping that can occur with inadequate support.
-
Optional Support Configurations: We understand that different materials (e.g., delicate aluminum, thick steel, non-ferrous metals) may require different support structures. We offer optional pallet and support designs to ensure your specific materials are cradled perfectly, preserving their pristine surface quality.
The Tangible Transformation: Quantifying Your Return on Automation
Investing in a Herochu Automated System is a strategic decision that pays dividends across every facet of your operation.
1. Radical Space Liberation: The 23-Square-Meter Revolution
Space is your most finite resource. Traditional floor stacking is incredibly wasteful, requiring ample aisles for forklifts and room for personnel to maneuver. As our analysis shows, storing 8 different sizes of sheet metal in a traditional method can consume a vast area.
The Herochu 3015 model consolidates this entire inventory into a footprint of just 4.8m x 4.8m (approximately 23 square meters). This isn’t just incremental improvement; it’s a revolution. The square meters you reclaim can be used to install an additional laser cutter, a bending cell, or to create a more logical and safe production flow. It allows for capacity expansion without the prohibitive cost of a physical factory extension.
2. The Dawn of the “One-Person” Material Flow
Labor is your most valuable and costly resource. The Herochu system fundamentally changes the labor equation. What once required a skilled forklift operator’s full attention for extended periods now becomes a task that can be managed by a single person from a control panel. This “One-Person Operation” model doesn’t just reduce labor costs; it reallocates your human capital to higher-value tasks like machine programming, quality control, and process optimization. It is a critical step towards establishing a “black light factory” or automated production cell that can run with minimal human intervention.
3. Seamless Production Line Integration
An automated storage system in isolation is powerful. An automated storage system integrated with your production equipment is transformative. The Herochu system is designed for seamless connection with laser cutting machines, punching machines, and other automation equipment. It becomes the reliable feeder for your automated downstream processes, creating a continuous, uninterrupted production line. By integrating with ERP and MES systems, it provides real-time inventory data, enabling truly lean manufacturing and just-in-time material flow.
4. Unwavering Safety and Asset Protection
The safety benefits are profound. By automating the most physically dangerous aspect of sheet metal handling—the retrieval and transport of heavy, sharp plates—you virtually eliminate the risk of crushing injuries, forklift accidents, and sheet drops. Furthermore, storing sheets individually within a protected, enclosed structure completely prevents the scratches, dings, and edge damage common with traditional stacking, directly protecting your profit margins embedded in every raw sheet.
Who is the Herochu Automated System For?
This solution is engineered for manufacturers who see themselves as leaders, not followers. It is ideally suited for:
-
Enterprises with limited production space that need to expand capacity or add new production lines without building a new facility.
-
Companies operating a flexible production model with multiple product varieties, small batch sizes, and high-frequency material access.
-
Visionary businesses seeking to establish automated sheet metal processing cells or move towards unattended “lights-out” manufacturing operations.
-
Industries with zero tolerance for compromise on plate surface quality and strict control over material loss, such as aerospace, automotive, or high-end architectural metalwork.
Stop managing your sheet metal inventory and start commanding it. The Herochu Automated Sheet Metal Storage System, starting at $18,999, is not an expense; it is an investment in the future-proofing of your manufacturing enterprise. It is the bridge from the manual, chaotic workshop of the past to the efficient, safe, and profitable smart factory of the future.
Contact us today for a personalized consultation and let us demonstrate how we can engineer an automation solution tailored precisely to your workshop’s unique dimensions, materials, and ambitions.
FAQ
Here are some frequently asked questions about our sheet metal racks and pipe storage solutions. We hope you find them helpful!
Q1: Can I request a custom size or color?
Absolutely. We offer complimentary design services and deliver efficient, tailored solutions to meet your specific requirements.
Q2: Are you a manufacturer or a distributor?
We are a direct manufacturer with over 15 years of industry experience and expertise.
Q3: Is there a minimum order quantity?
No. We welcome orders of any size, starting from a single unit.
Q4: How can I get detailed product information?
Click the “Get a Quote” button to receive product images, detailed specifications, and videos. Our team is always ready to assist.
Q5: How do I provide my storage rack requirements?
Simply share the type, dimensions, and quantity of materials you plan to store, along with any other specific needs. We will develop a professional storage solution for you. Alternatively, leave your contact details for a personalized consultation.
Q6: Do you offer automated loading systems or robotic arms?
Yes. We provide loading robotic arms and integrated loading/unloading systems tailored to your laser cutting machine’s table size and material handling method (e.g., board rack, exchange platform, or material warehouse). Contact us with your details for a customized proposal.
Q7: Do you provide on-site installation and debugging?
Yes. Our technicians can travel to your facility for installation and debugging, ensuring successful operation. We have served clients globally, including in the USA, South Korea, Russia, Qatar, Mexico, South Africa, Egypt, and Lebanon.
Q8: How do you ensure product quality?
Our quality assurance includes:
A team of over 40 technical engineers for professional debugging and support.
A dedicated quality control department compliant with ISO9001 standards.
CE certification for all exports.
Rigorous load testing before shipment to ensure structural safety and reliability.
Q9: Where is your factory located?
Our modern 10,000-square-meter manufacturing facility is located in Jiyang Industrial Park, Jinan, Shandong, China.
Q10: How can I evaluate your company’s capabilities?
We offer virtual video factory tours and warmly welcome on-site visits.
Q11: What does your company specialize in?
Jinan Constant Storage Machinery Manufacturing Co., Ltd. is a high-tech enterprise specializing in the R&D, production, sales, installation, and service of intelligent storage solutions. Our product range includes sheet material warehouses, drawer-style shelves, cantilever racks, servo manipulators, gantry loaders, and fully automated handling systems. Supported by a skilled technical team and advanced equipment, we are committed to delivering high-performance storage products and solutions to customers worldwide.
