Herochu Automated Long Goods Storage System: Transform Industrial Material Management for Rods, Profiles, Panels, Tubes, and Pipes

In manufacturing facilities, steel yards, and heavy engineering workshops, the storage and handling of long, unwieldy materials—from metal rods and structural profiles to large panels and seamless pipes—has long been a bottleneck for efficiency. Traditional methods—stacking these items on the floor, relying on manual forklift operations, or using static racks—often lead to wasted space, prolonged retrieval times, and excessive labor costs. Workers spend hours navigating cluttered aisles to locate a single length of pipe; valuable vertical space goes unused; and the risk of material damage or workplace injury remains high. Herochu’s Automated Long Goods Storage System eliminates these pain points by integrating precision engineering, modular design, and intelligent automation, creating a seamless solution for storing, accessing, and managing long materials.

The Core of Herochu’s Automated Long Goods Storage System: Engineered for Precision

At its heart, Herochu’s system is a synergy of four key components—each designed to work in tandem to deliver reliable, efficient material management. Unlike piecemeal storage solutions that require cobbling together separate equipment, our integrated system ensures every part communicates seamlessly, minimizing downtime and maximizing performance.

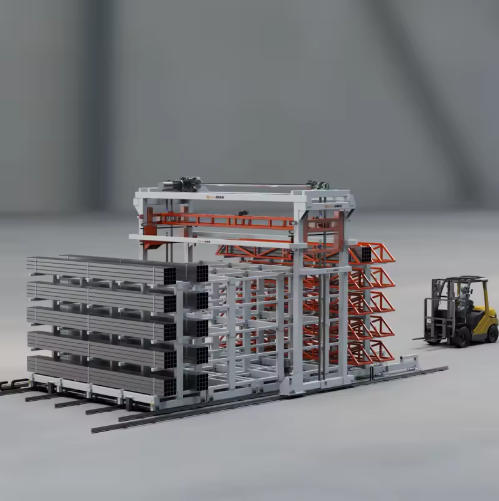

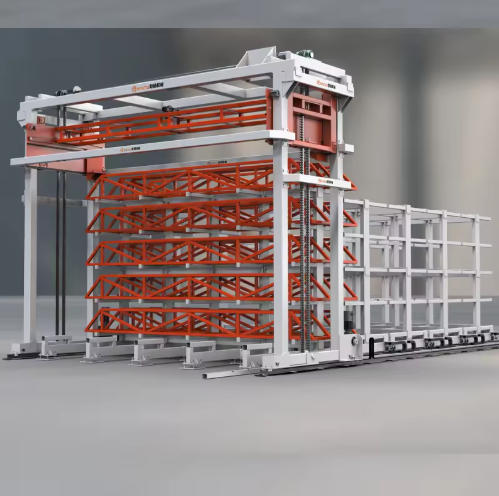

1. Loading & Unloading Gantry System: The “Workhorse” of Material Movement

The gantry system is the backbone of the automated process, acting as the bridge between your workshop floor and the storage racks. Built as a heavy-duty bridge crane, it moves along dedicated guide rails (installed to match your facility’s layout) and delivers pinpoint positioning over storage racks and material carriers. This precision is critical: when retrieving a 6-meter profile or a bundle of tubes, the gantry eliminates the guesswork of manual operation, ensuring materials are picked up and placed exactly where needed—no more accidental collisions with racks or misaligned drops that damage inventory.

Powered by a robust chain drive system (a hallmark of Herochu’s focus on durability), the gantry moves smoothly even under full load, with none of the jerky motion that plagues cheaper, belt-driven alternatives. For facilities handling high-volume material flow, this translates to consistent performance shift after shift. And with a vertical lifting speed of 9 meters per minute and an inlet/outlet speed of 12 meters per minute, the gantry cuts down material transfer time drastically—what once took 20 minutes with a manual forklift can now be done in 2–3 minutes.

2. Profile Material Racks: The Foundation of Organized, High-Density Storage

Gone are the days of haphazardly stacking pipes on the floor or relying on single-tier racks that waste vertical space. Herochu’s profile material racks are multi-tiered structures engineered for both strength and flexibility, designed to hold single or bundled long materials without compromising stability.

Available in standard lengths of 6015mm, 6020mm, and 6025mm (with custom lengths available for unique material sizes), these racks support loads of 3 tons or 5 tons per layer—enough to handle heavy steel beams, thick-walled pipes, or dense bundles of rods. The number of layers is fully customizable, ranging from 8 to 13 tiers (and beyond for facilities with high ceilings), turning unused vertical space into valuable storage real estate. For example, a workshop with a 10-meter ceiling that previously used 2-tier static racks can now install 10-tier Herochu racks, increasing storage capacity by 400% without expanding the facility’s footprint.

Each rack is constructed from high-grade steel, treated with a corrosion-resistant coating to withstand industrial environments (including humid conditions or exposure to metal shavings), and tested to meet load-bearing standards. This durability ensures the racks remain stable even when fully loaded, reducing the risk of material collapse or rack deformation over time.

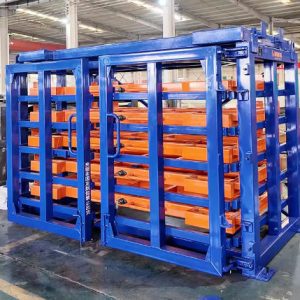

3. Material Frames: Secure, Adaptable Support for Every Material Type

Material frames are the unsung heroes of the system, providing tailored support for the diverse long goods your workshop handles. Unlike one-size-fits-all racks that force you to compromise on safety (e.g., using padding to stabilize irregularly shaped profiles), Herochu’s material frames are optional and customizable to match your inventory.

Whether you’re storing thin metal rods that need individual slots to prevent tangling, wide panels that require flat, stable surfaces, or bundled tubes that need secure clasps to avoid shifting, we design frames to fit. For example, frames for rods feature evenly spaced dividers to keep each piece separate; frames for panels include non-slip surfaces to prevent sliding during lifting; and frames for bundled pipes come with adjustable straps to secure even irregularly sized bundles. These frames are directly connected to the gantry system, allowing for seamless lifting and transport—no need for manual intervention to reposition materials before moving them.

4. Guide Rails: The Path to Smooth, Accurate Movement

Guide rails are the quiet enablers of the system’s efficiency, installed throughout the workshop to create a clear, unobstructed path for the gantry system. Made from hardened steel to resist wear (even with constant gantry movement), these rails ensure the crane travels in a straight line, maintaining precision positioning at every step.

Unlike manual forklift paths, which require wide aisles and often become blocked by misplaced materials, Herochu’s guide rails are fixed and narrow, reducing the space needed for material movement. This means more room for storage racks and less wasted space on temporary paths. Additionally, the rails are designed to integrate with your workshop’s existing layout—whether you need a straight line, a curve, or a T-junction to reach multiple storage zones, we can customize the rail configuration to fit.

Why Herochu’s Automated Long Goods Storage System Outperforms Traditional Methods

The difference between Herochu’s system and traditional storage isn’t just automation—it’s a complete reimagining of how long materials should be managed. Here’s how it delivers tangible value to your workshop:

1. Fast Access: Cut Retrieval Time by Up to 75%

In manual storage setups, retrieving a specific length of pipe or a single profile from a stack can take 15–30 minutes: workers must locate the stack, move other materials out of the way, and carefully lift the desired item to avoid damage. Herochu’s system eliminates this delay.

The gantry system’s combination of speed (12m/min inlet/outlet) and precision positioning means materials are retrieved in a fraction of the time. With a simple input into the system’s control panel (or integration with your existing ERP software), the gantry automatically moves to the correct rack, lifts the material frame, and delivers it to the workshop floor—all without manual oversight. For facilities that handle hundreds of material requests per day, this adds up to hours of saved time, allowing workers to focus on production instead of searching for inventory.

2. Significantly Reduced Labor Costs & Intensity

Manual long goods storage relies heavily on skilled operators to run forklifts, cranes, and other heavy equipment—often requiring 2–3 workers per shift to manage material movement. Herochu’s automation cuts this demand drastically: one worker can oversee the entire system, monitoring operations and troubleshooting (via the user-friendly control panel) instead of physically operating machinery.

This not only reduces labor costs (by up to 50% in some cases) but also lowers physical strain on your team. Manual lifting of heavy materials or prolonged operation of forklifts often leads to fatigue, back injuries, or muscle strains—issues that increase downtime and workers’ compensation claims. With Herochu’s system, the gantry handles all heavy lifting, and workers only need to interact with the control panel, creating a safer, more sustainable work environment.

3. Three-Dimensional Storage: Maximize Space Without Expansion

The biggest waste in most workshops is vertical space. Traditional floor storage or low-tier racks use only 10–20% of a facility’s available height, leaving vast areas unused. Herochu’s multi-tier racks (8–13 layers as standard, with custom options) turn this wasted space into revenue-generating storage.

Consider a workshop with a 12-meter ceiling and a 500-square-meter material storage area. Using traditional 2-tier racks, the effective storage area is 1,000 square meters. With Herochu’s 10-tier racks, that effective area jumps to 5,000 square meters—enough to store five times more material without expanding the facility. For growing businesses, this means avoiding the cost and disruption of relocating or building additional warehouse space.

4. Modular Design: Adapt to Your Changing Needs

Workshops don’t stay static—material volumes grow, inventory types change, and facility layouts evolve. Herochu’s modular system is built to adapt, so you don’t have to replace the entire system when your needs shift.

Every component—material frames, guide rails, and even the gantry system—can be expanded or reconfigured. For example, if you start storing larger panels and need wider material frames, we can swap out the existing frames without replacing the racks. If your workshop expands and you need to add more storage zones, we can extend the guide rails and add new racks to the existing system. This modularity ensures your investment grows with your business, avoiding the “rip and replace” cycle of rigid storage solutions.

Herochu’s Specifications: Built to Fit Your Workshop

While every Herochu Automated Long Goods Storage System is customizable, our standard configurations are designed to meet the needs of most industrial facilities. Below is a breakdown of key specifications to help you start planning:

Specification Category	Standard Details	Customization Options
Profile Length Support	6015mm, 6020mm, 6025mm	Any length (e.g., 4000mm, 8000mm) to match your material sizes
Number of Floors (Rack Tiers)	8–13	5–20+ tiers (based on ceiling height and load requirements)
Load per Layer	3T, 5T	Up to 10T per layer (for heavy-duty applications like steel beams)
Mode of Movement	Linear guide rail + chain	Custom rail paths (curves, T-junctions, etc.) for unique facility layouts
Transmission Mode	Chain drive	High-torque chain drives for extra-heavy loads (optional)
Vertical Lifting Speed	9m/min	Adjustable speed (5–12m/min) based on material fragility
Inlet/Outlet Speed	12m/min	Adjustable speed (8–15m/min) for high-volume or precision-focused operations
Profile Support	Optional, customizable frames	Frames for rods, profiles, panels, tubes, pipes, or irregular shapes

Every system also includes a user-friendly PLC control panel (with touchscreen interface) that allows operators to monitor inventory, schedule material retrievals, and track system performance. For advanced integration, we offer compatibility with most ERP and warehouse management software, letting you sync storage data with your overall production workflow.

Why Choose Herochu? More Than a System—A Long-Term Partner

At Herochu, we don’t just sell storage systems—we build solutions that grow with your business. Our commitment to quality is reflected in every component: from the corrosion-resistant steel of the racks to the precision-engineered chain drives of the gantry. Every system undergoes rigorous testing before shipment, ensuring it meets CE, EU, and ISO 9001 standards, and we back our products with a 5-year warranty on structural components and a 2-year warranty on electrical parts.

But our support doesn’t end at installation. Our team provides on-site training for your operators, ensuring they can use the system safely and efficiently. We also offer 24/7 technical support—whether you have a question about system configuration or need emergency troubleshooting, our experts are just a call away. And as your business evolves, we’re here to reconfigure, expand, or upgrade your system, ensuring it always meets your needs.

Get Started with Herochu Today

If you’re tired of wasted space, slow material retrieval, and high labor costs, Herochu’s Automated Long Goods Storage System is the solution. Starting at $42,000, it’s an investment that pays for itself in reduced operational costs and increased productivity—often within the first year.

Contact our sales team today for a free, no-obligation assessment of your workshop. We’ll evaluate your material types, storage needs, and facility layout, then design a custom system that fits your budget and workflow. With Herochu, you’re not just buying a storage system—you’re taking the first step toward a more efficient, profitable workshop.

Herochu Automated Long Goods Storage System: Engineered for Rods, Profiles, Panels, Tubes, and Pipes. Built for Your Success.

FAQ

Here are some frequently asked questions about our sheet metal racks and pipe storage solutions. We hope you find them helpful!

Q1: Can I request a custom size or color?
Absolutely. We offer complimentary design services and deliver efficient, tailored solutions to meet your specific requirements.

Q2: Are you a manufacturer or a distributor?
We are a direct manufacturer with over 15 years of industry experience and expertise.

Q3: Is there a minimum order quantity?
No. We welcome orders of any size, starting from a single unit.

Q4: How can I get detailed product information?
Click the “Get a Quote” button to receive product images, detailed specifications, and videos. Our team is always ready to assist.

Q5: How do I provide my storage rack requirements?
Simply share the type, dimensions, and quantity of materials you plan to store, along with any other specific needs. We will develop a professional storage solution for you. Alternatively, leave your contact details for a personalized consultation.

Q6: Do you offer automated loading systems or robotic arms?
Yes. We provide loading robotic arms and integrated loading/unloading systems tailored to your laser cutting machine’s table size and material handling method (e.g., board rack, exchange platform, or material warehouse). Contact us with your details for a customized proposal.

Q7: Do you provide on-site installation and debugging?
Yes. Our technicians can travel to your facility for installation and debugging, ensuring successful operation. We have served clients globally, including in the USA, South Korea, Russia, Qatar, Mexico, South Africa, Egypt, and Lebanon.

Q8: How do you ensure product quality?
Our quality assurance includes:

A team of over 40 technical engineers for professional debugging and support.
A dedicated quality control department compliant with ISO9001 standards.
CE certification for all exports.
Rigorous load testing before shipment to ensure structural safety and reliability.

Q9: Where is your factory located?
Our modern 10,000-square-meter manufacturing facility is located in Jiyang Industrial Park, Jinan, Shandong, China.

Q10: How can I evaluate your company’s capabilities?
We offer virtual video factory tours and warmly welcome on-site visits.

Q11: What does your company specialize in?
Jinan Constant Storage Machinery Manufacturing Co., Ltd. is a high-tech enterprise specializing in the R&D, production, sales, installation, and service of intelligent storage solutions. Our product range includes sheet material warehouses, drawer-style shelves, cantilever racks, servo manipulators, gantry loaders, and fully automated handling systems. Supported by a skilled technical team and advanced equipment, we are committed to delivering high-performance storage products and solutions to customers worldwide.
